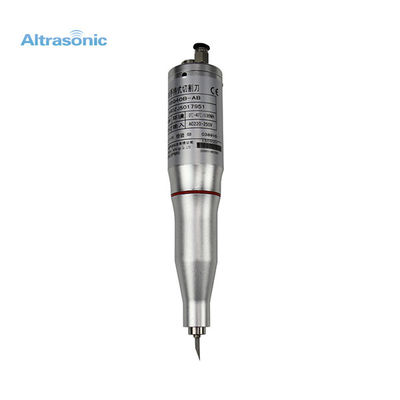

Ultrasonic Hand-held Cutter with Blades Replaceable for Cutting Thermoplastic and Fabric

Ultrasonic Hand-held Cutter with Blades Replaceable for Cutting Thermoplastic and Fabric
Ultrasonic Hand-held Cutter with Blades Replaceable for Cutting Thermoplastic and Fabric Ultrasonic Hand-held Cutter with Blades Replaceable for Cutting Thermoplastic and Fabric

Large Image :  Ultrasonic Hand-held Cutter with Blades Replaceable for Cutting Thermoplastic and Fabric

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-C40
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Delivery Time: 7 work days afer receiving the payment
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Contact Now

Ultrasonic Hand-held Cutter with Blades Replaceable for Cutting Thermoplastic and Fabric

Description
Product Name: 40K Ultrasound Manual Cutting Machinery Blade: Replaceable
Frequency: 40khz Power: 100W
Generator: Analog Size Of Generator: 155 X 265 X 170mm
Outer Skin: Aluminum Voltage: 220V / 110V
Warranty: 1 Year
Highlight:

ultrasonic cutting equipment

,

ultrasonic cutting devices



Ultrasonic Hand-held Cutter with Blades Replaceable for Cutting Thermoplastic and Fabric



Specification:

Model
HS-C40
Frequency
40KHZ
Output Power
100W
Generator
Analog generator, 155 x 265 x 170mm
Handle
Φ32×170
Size of cutter
Blade replaceable
Length of cable
Outer skin
Aluminum
Weight
8KG
Voltage
220V / 110V
Accessory
Foot switch1pc；
Cut blade 25pcs；
1.5mm special hex wrench 1pc；
Screw M3×4L 2pcs
Material of cutter
Magnalium alloy, titanium alloy, stainless steel


Description:

Ultrasonic Cutting Machine is a class of device using ultrasonic energy for cutting. Instead of using traditional blade cutting,
ultrasonic cutting has its advantages of smooth, reliable cutting, accurate trimming, no deformation, no raising, fuzzing, spinning,
wrinkling etc. It can avoid the rough cutting-edge, coked edge, fuzzballs and other shortcomings of laser cutting machine.


Application:

  • Aramid Prepreg
  • Boron Prepreg
  • Carbon Phenolic Prepreg
  • Fiberglass Prepreg
  • Graphite Prepreg
  • Hybrid Prepreg
  • Thermoplastic Prepreg
  • Unidirectional Tape
  • Aluminum Core Cured/Uncured Rubber
  • Foam Core Sealant
  • Nomex Core
  • Phenolic Core
  • Woven Fabric
  • Braided Materials


Competitive Advantages:

★ Cutting all kinds of ordinary tool to cut products, solve production problems
★ Installation, easy to use, almost does not change the original cutting process
★ Can use air-cooled, water-cooled design, adapt to various working conditions and environment
★ Can be installed high hardness blade, cutting blade can be replaced, greatly reducing the use cost
★ The cutting speed is improved greatly, the efficiency 10 times higher than the traditional cutting knife.
★ Cutting tool complete varieties, can also be customized according to customer process shaped cutting
★ The use of high power ultrasonic transducer vibrating element, ensure the long time stable working tool
★ Can be used in the production of circular ultrasonic tool cutting equipment, rolling cutting, suitable forcutting special


Problem and solution:

Item
Problem
Cause description
Solution

Power switch to “I” the light is out
Power plug loose
Plugging in
Power line break
Fix it yourself or send back
Power switch bad contact
Fuse is broken
Power light and
running light are OK
Air plug and socket not connected
Tighten the connection position
Handle have abnormal Sound
Clean the card slot, use new
blade
Intermittently use, but the handle
keeping hot
Please send it back
Out-put air plug break
Screw loose
Tighten the screw
Running light is ok
Running switch bad
Please send it back

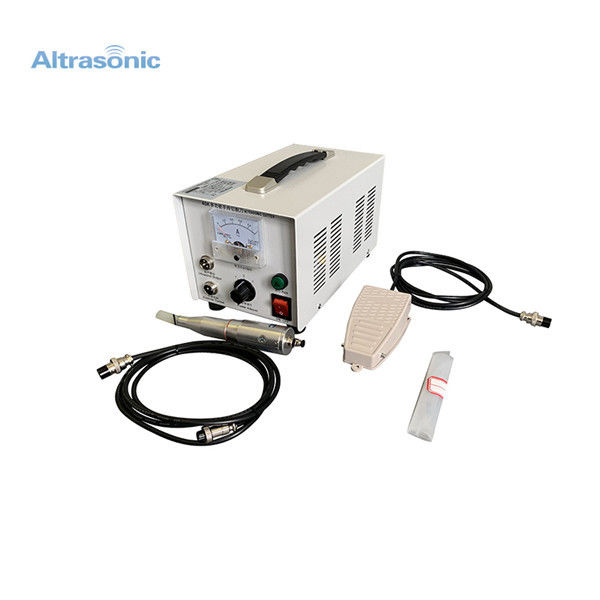

Product display
