Product Details:
|
Saw Blade Diameter: | 5mm | Knife: | Replaceable |
---|---|---|---|
Frequency: | 40khz | Size Of Generator: | 155 X 265 X 170mm |
Outer Skin: | Aluminum | Type: | Rubber Cutting Machine |
Power: | 100w | Length Of Cable:: | 3M |
High Light: | Ultrasonic Rubber Cutter,100w Ultrasonic Cutting Machine |

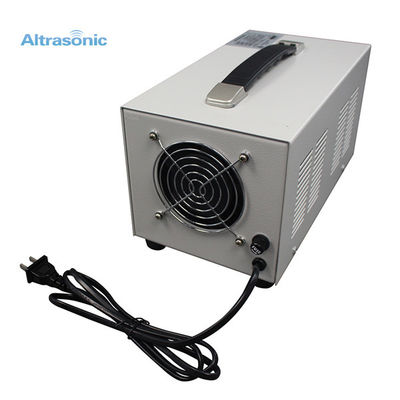

40K 100 Watts Portable Ultrasonic Machine For Plastic Cutting
Specification:
Model | HS-C40 |
Frequency | 40KHZ |
Output Power | 100W |
Generator | Analog generator, 155 x 265 x 170mm |
Handle | Φ32×170 |
Size of cutter | Blade replaceable |
Length of cable | 3M |
Outer skin | Aluminum |
Weight | 8KG |
Voltage | 220V / 110V |
Accessory | Foot switch1pc;Cut blade 25pcs;1.5mm special hex wrench 1pc; Screw M3×4L 2pcs |
Material of cutter |
titanium alloy, stainless steel |
Introduction:
The ultrasonic cutting blade melts and heats the material to be cut locally to achieve the purpose of cutting the material. Therefore, ultrasonic cutting does not require a sharp knife, nor does it require a lot of pressure, and will not cause damage and destruction by reducing the material. At the same time, due to the ultrasonic vibration cutting blade, the friction is small, and it is not easy to stick to the blade by reducing the material. Viscous and elastic materials, frozen, such as food, cakes, rubber, etc., or inconvenient to add pressure reduction objects, are particularly effective.
Advantage:
1. The cutter head is made of imported high-quality alloy steel, with high hardness and long life;
2. The cutter head is sharp, compact, and can be cut quickly;
3. Suitable for any occasion, safe, not hurting people, simple operation;
4. Suitable for cutting all kinds of non-woven fabrics, can cut any shape;
Application:
Various textile materials and plastic sheets can be cut by ultrasound, such as natural fibers, synthetic fibers, non-woven fabrics and knitted fabrics can be cut by ultrasound.
