Product Details:
|
| Frequency Range: | 1KHz~500kHz/1Mhz/3Mhz | Measurement Speed: | 5s/one Pass(600scan Point) Adjustable |
|---|---|---|---|
| Phase Resolution: | 0.15 Degree | Impedance Range: | 1Ω～1MΩ |
| Net Weight: | 3.5kg | Frequency Step: | 0.1Hz To Any |
| Highlight: | Portable Ultrasonic Impedance Analyzer,8'' screen Ultrasonic Impedance Analyzer,500k Ultrasonic Impedance Analyzer |
||

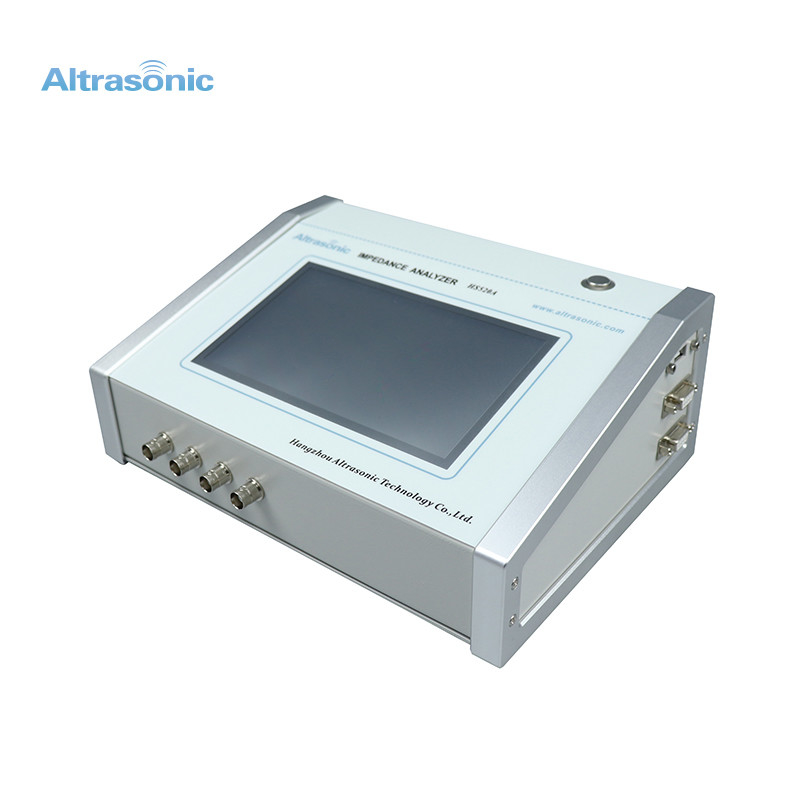

Portable Ultrasonic Impedance Analyzer Measuring Instrument 500khz
Description:
It is mainly used for the detection of piezoelectric devices and equipment. It is a comprehensive solution for measuring and analyzing piezoelectric devices and equipment. It can quickly and conveniently evaluate and test the parameter characteristics of piezoelectric devices.
The Ultrasonic Impedance Analyzer HS520A series of products are used for comprehensive solutions for the detection of piezoelectric ultrasonic devices and equipment. HS520A is a new generation of ultrasonic component analyzer developed on the basis of HS70A-P (computer version) and HS70A-D (self-contained display version), combining the advantages of the former two.
Specification:
| Specification Performance |
HS520A |
| Product feature | Portable, 8inch screen, Full touch screen |
| Dimension | L24cm,W19cm,H10cm |
| Frequency range | 1KHz~500kHz/1Mhz/3Mhz |
| Measurement Index | All the parameters, the graph |
| Measurement Accuracy | < 0.5% |
| Measurement Speed | 5s/one pass(600scan point) Adjustable |
| Frequency Accuracy | ±10ppm |
| Phase Resolution | 0.15 degree |
| Environment Temperature | 10～40degree centigrade |
| Impedance Range | 1Ω～1MΩ |
| Frequency Step | 0.1Hz～any |
| Power Supply | AC100V～AC250V,50～60Hz, 30W |
Advantages:
● Easy to use, accurate and inexpensive, measurement accurace is extremely high
● Judging product defects by admittance circle and logarithmic curve at a glance
● Test data can be stored and printed on the computer, and the data can be traced back to the source.
● Printable impedance scan curve graphics for easy sample analysis and archiving
● One-click start test function, easy to operate, high production efficiency

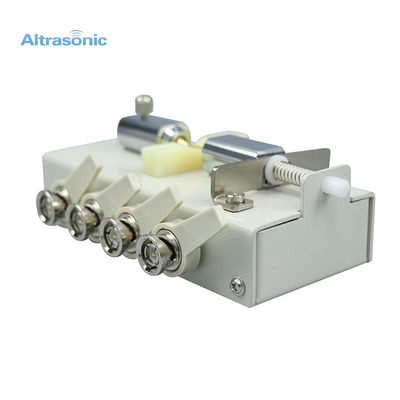

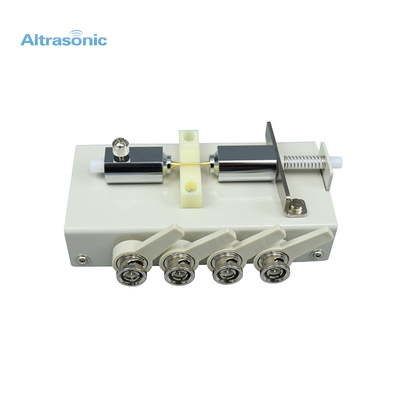

Detailed Images:
