Product Details:
|
| Generator: | Digital | Frequency Range: | 1KHz~500kHz/1Mhz/3Mhz |
|---|---|---|---|
| Measurement Speed: | 5s/one Pass(600scan Point) Adjustable | Frequency Accuracy: | ±10ppm |
| Phase Resolution: | 0.15 Degree | Impedance Range: | 1Ω～1MΩ |
| Power Supply: | AC100V～AC250V,50～60Hz, 30W | Application: | Ultrasonic Components/ultrasonic Device |
| High Light: | measurement instruments,analyzer instrument |
||
High Frequency Impedance Analyzer Ultrasonic Testing Machine With Longlife
Description:
For ultrasonic components measuring instrument, the most important is the admittance chart, logarithmic graph of the two graphics (the two graphics is the main method of qualified qualified), and more than a dozen parameters: resonance frequency Fs, the maximum conductance Gmax, bandwidth F2-F1, anti-resonance frequency Fp, quality factor Qm, free capacitance CT, dynamic resistance R1, dynamic inductance L1, dynamic capacitance C1, static capacitance C0, effective electromechanical coupling coefficient Keff.
The Measuring instrument which can easily replace much more complex and more complicated, also many times more expensive instruments from Agilent/HP, as for instance: HP Impedance Gain-Phase Analyzer 4294A, Agilent E5100A, Network Analyzer, HP 3563A,Control System Analyzer etc. It is also very easy to use HS520A (by engineers or ordinary production workers).
Specification:
| Specification Performance |
HS520A |
| Product feature | Portable, 8inch screen, Full touch screen |
| Dimension | L24cm,W19cm,H10cm |
| Frequency range | 1KHz~500KHz/1Mhz/3Mhz |
| Measurement Index | All the parameters, the graph |
| Measurement Accuracy | < 0.5% |
| Measurement Speed | 5s/one pass(600scan point) Adjustable |
| Frequency Accuracy | ±10ppm |
| Phase Resolution | 0.15 degree |
| Environment Temperature | 10～40degree centigrade |
| Impedance Range | 1Ω～1MΩ |
| Frequency Step | 0.1Hz～any |
| Power Supply | AC100V～AC250V,50～60Hz, 30W |
Main features and advantages:
1. The large screen and full-screen touch make the HS520A not only have the operating experience of HS70A-P (computer version), but also have no sense of cumbersomeness with computer operation.
2. Relying on the new and powerful ARM processor data processing capability, the measurement accuracy of HS520A is much higher than that of HS70A-D (with display version), and can reach the level of HS70A-P (computer version).
3. The full-screen touch operation is more user-friendly, and does not require a large number of physical buttons of HS70A-D (with its own display version). Therefore, it is extremely simple to operate the instrument, and the product is smaller in size, lighter in weight and more portable.
4. It can be operated by connecting to a computer like HS70A-P, and the software is fully compatible, users do not need to be familiar with the software operation.
5. When developing the HS520A, it took into account the operation needs of the automated production line, and reserved the 232 interface and IO communication interface (relay input and output) for communication with the PLC.
6. The operation of HS520A is no longer based on Windows system, and has the ability to run reliably on the production line for a long time.

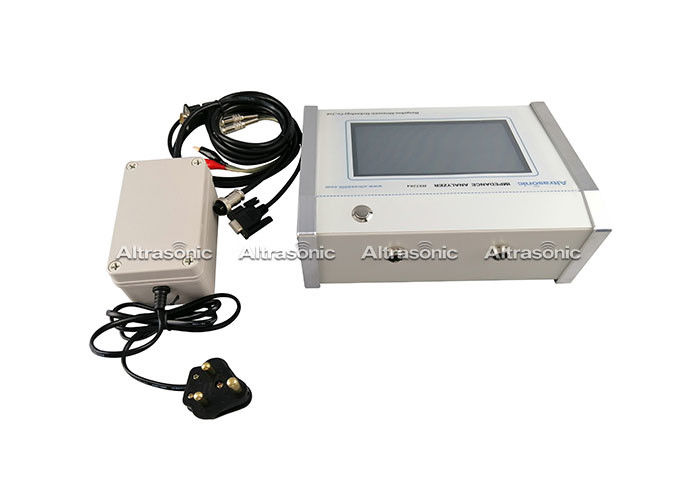

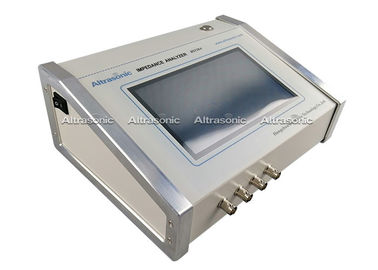

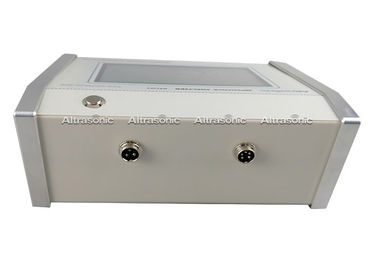

Detailed Images:
