Product Details:
|
| Net Weight: | 3.5KG | Frequency Range: | 1KHz~500kHz/1Mhz/3Mhz |
|---|---|---|---|
| Phase Resolution: | 0.15 Degree | Impedance Range: | 1Ω～1MΩ |
| Power Supply: | AC100V～AC250V,50～60Hz, 30W | Frequency Step: | 0.1Hz To Any |
| Packaging Details: | Carton | ||
| High Light: | 0.15 Degree Ultrasonic Impedance Analyzer,Capacitive Ultrasonic Impedance Analyzer,Ultrasonic Impedance Analyzer CE |
||
Durable 0.15 Degree Impedance Analyzer Capacitive Ultrasonic Impedance Analyzer
Description:
Ultrasonic impedance analyzers are mainly used to detect piezoelectric devices (such as a single piezoelectric ceramic sheet, or a single transducer, or transducer + amplitude modulator/welding head). Through the impedance analyzer, some technical indicators that cannot be seen intuitively but have an important impact on product quality can be used to guide production. Impedance analyzer, as the name suggests, is to test the impedance characteristics of various piezoelectric devices, suitable for the development and production of various ultrasonic equipment, including ultrasonic cleaning machines, ultrasonic welding machines, ultrasonic pulverizers, ultrasonic atomization, ultrasonic cleaning, Reversing radar, ultrasonic ranging, phacoemulsification, ultrasonic descaling, ultrasonic motor, etc.
Specification:
| Specification Performance |
HS520A |

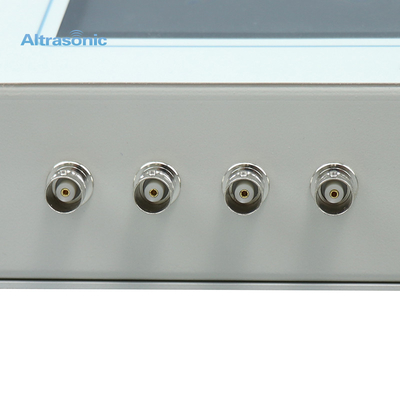

| Product feature | Portable, 8inch screen, Full touch screen |
| Dimension | L24cm,W19cm,H10cm |
| Frequency range | 1KHz~500KHz/1Mhz/3Mhz |
| Measurement Index | All the parameters, the graph |
| Measurement Accuracy | < 0.5% |
| Measurement Speed | 5s/one pass(600scan point) Adjustable |
| Frequency Accuracy | ±10ppm |
| Phase Resolution | 0.15 degree |
| Environment Temperature | 10～40degree centigrade |
| Impedance Range | 1Ω～1MΩ |
| Frequency Step | 0.1Hz～any |
| Power Supply | AC100V～AC250V,50～60Hz, 30W |
Main features and advantages:
1. The large screen and full-screen touch make the HS520A not only have the operating experience of HS70A-P (computer version), but also have no sense of cumbersomeness with computer operation.
2. Relying on the new and powerful ARM processor data processing capability, the measurement accuracy of HS520A is much higher than that of HS70A-D (with display version), and can reach the level of HS70A-P (computer version).
3. The full-screen touch operation is more user-friendly, and does not require a large number of physical buttons of HS70A-D (with its own display version). Therefore, it is extremely simple to operate the instrument, and the product is smaller in size, lighter in weight and more portable.
4. It can be operated by connecting to a computer like HS70A-P, and the software is fully compatible, users do not need to be familiar with the software operation.
5. When developing the HS520A, it took into account the operation needs of the automated production line, and reserved the 232 interface and IO communication interface (relay input and output) for communication with the PLC.
6. The operation of HS520A is no longer based on Windows system, and has the ability to run reliably on the production line for a long time.
Parameters that can be measured by impedance analyzer
Static capacitance
Resonance frequency
Anti-resonance frequency
Mechanical quality factors
Small impedance
Large impedance
Impedance phase
Frequency bandwidth
Electromechanical coupling coefficient

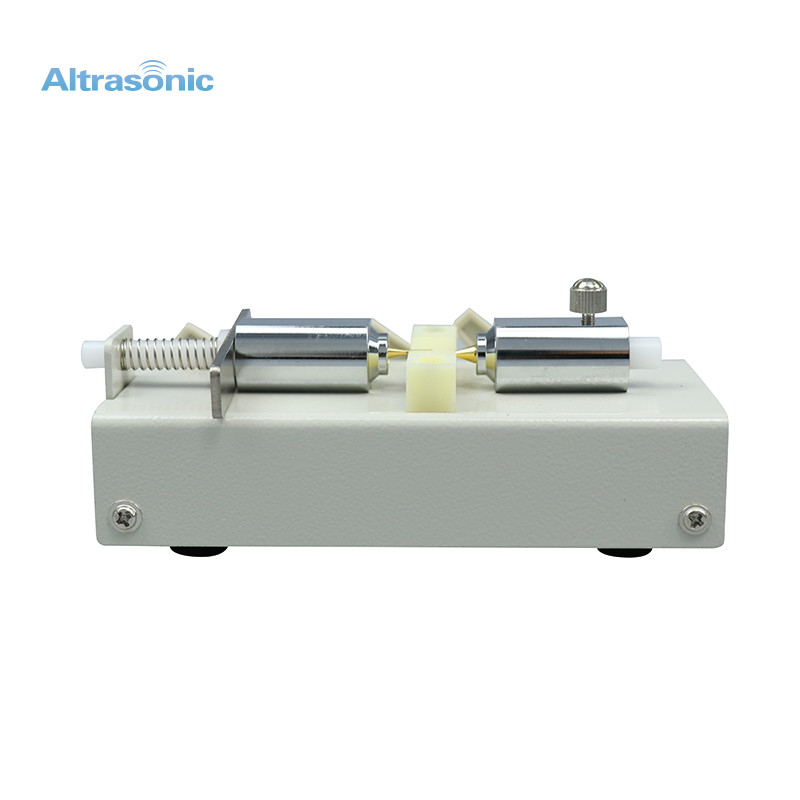

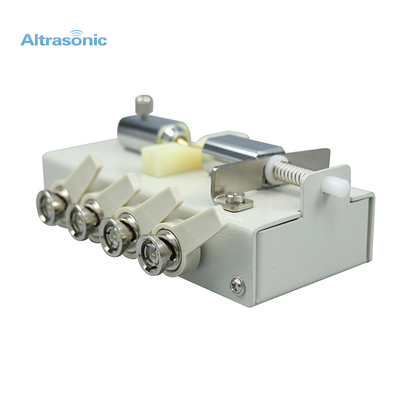

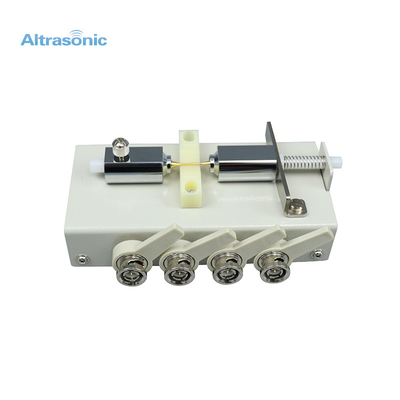

Detailed Images:
Contact Person: Hogo Lv
Tel: 0086-15158107730
Fax: 86-571-88635972
