Product Details:
|
| Model: | HS-520S | Measuring Range(w/cm2): | 0.02-2.55 |
|---|---|---|---|
| Packaging Details: | Carton | Power: | 110~250V,5V/1.5A |
| Resolution(w/cm2): | 0.01 | Measuring Frequency: | 10.0KHz-99.9KHz |
| Payment Terms: | T/T, Western Union,Paypal | Supply Ability: | 500 Pieces/month |
| High Light: | 10.0KHz sound intensity measuring instrument,Ultrasonic Sound Intensity Meter,LCD screen Sound Intensity Meter |
||

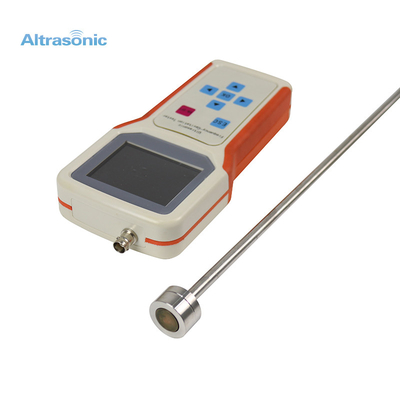

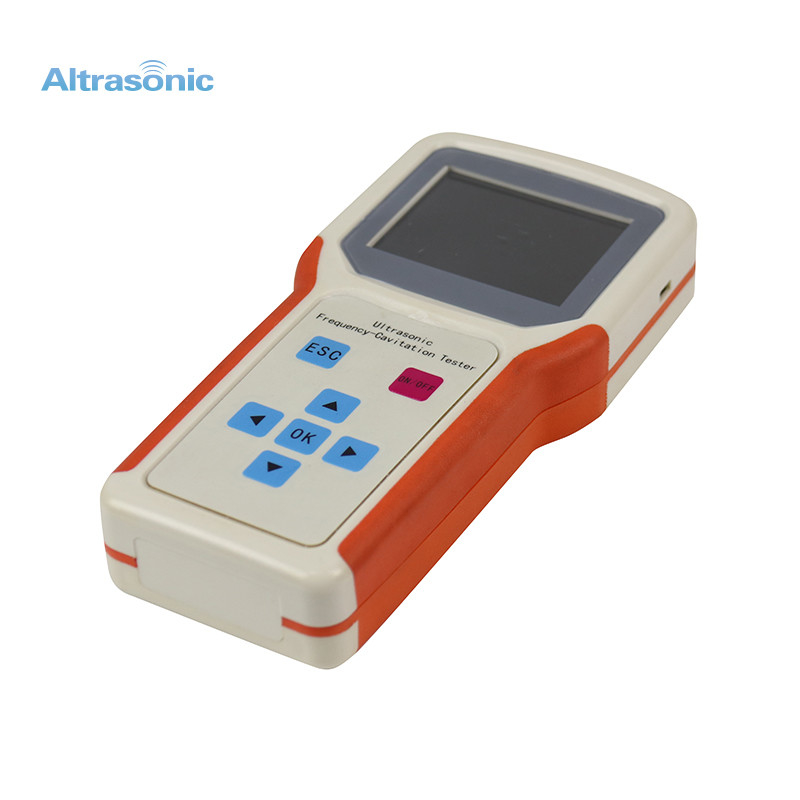

HS-520S Ultrasonic Sound Intensity Meter
Description:
The Ultrasonic Sound Intensity Meter is a device specially used to measure the ultrasonic sound intensity in liquids. The so-called sound intensity is the sound power per unit area, and the size of the sound intensity directly affects the effects of ultrasonic cleaning, ultrasonic emulsification, ultrasonic extraction, ultrasonic dispersion, etc. Ultrasonic sound intensity measuring instrument is a testing instrument used in the calibration of cleaning ability in ultrasonic cleaning tanks.

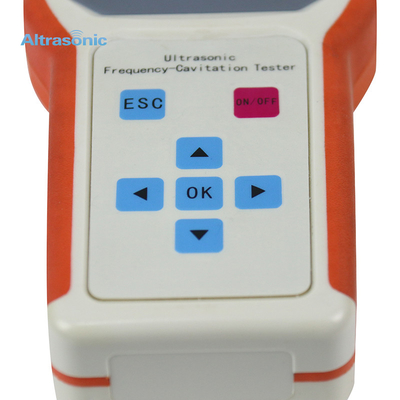

| No | Description | No | Description | No | Description |

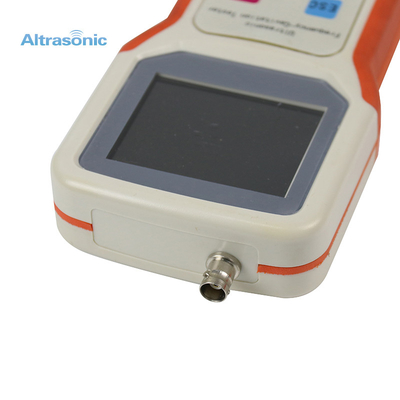

| 1 | Instrument BNC connector | 7 | Right button | 13 | Stainless steel rod |
| 2 | LCD screen | 8 | Confirm button | 14 | Probe BNC connector |
| 3 | Back button | 9 | Down button | 15 | rechargeable battery |
| 4 | Power switch button | 10 | Communication Interface | 16 | charger |
| 5 | Up button | 11 | Rear cover | ||
| 6 | Left button | 12 | Probe |
|
principle:
The ultrasonic sound intensity measuring instrument uses the principle of the piezoelectric effect (the piezoelectric effect refers to: when the piezoelectric material is subjected to an external force, a polarization phenomenon will occur inside the material). Since the ultrasonic wave is a mechanical energy wave, when we need to measure the energy of the ultrasonic wave (also known as: sound pressure, power, sound intensity, field strength), we only need to launch the ultrasonic wave into the liquid, and then use the ultrasonic sound intensity measuring instrument A sensor (we usually call it an ultrasonic probe) penetrates into the liquid with an ultrasonic field
Advantages:
It has good directionality, strong penetrating ability, easy to obtain concentrated sound energy, and has a long distance in water. It can be used for distance measurement, speed measurement, cleaning, welding, gravel, sterilization and disinfection, etc.
1. Realize one-key automatic measurement, automatically display sound intensity and waveform
2. HS-200I series and above have digital readout sound intensity value and frequency
3.320×240 3.2 inch color LCD with LED backlight
4. Built-in 2300mAh lithium battery pack, external AC power adapter
5. Automatic shutdown without signal input within ten minutes
