30kHz 500 Watts Ultrasonic Cutting Machine For Plastic Rubber PP PE PVC

30kHz 500 Watts Ultrasonic Cutting Machine For Plastic Rubber PP PE PVC
30kHz 500 Watts Ultrasonic Cutting Machine For Plastic Rubber PP PE PVC 30kHz 500 Watts Ultrasonic Cutting Machine For Plastic Rubber PP PE PVC 30kHz 500 Watts Ultrasonic Cutting Machine For Plastic Rubber PP PE PVC

Large Image :  30kHz 500 Watts Ultrasonic Cutting Machine For Plastic Rubber PP PE PVC

Product Details:
Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HS-C30
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Carton packing
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000 pieces per month

30kHz 500 Watts Ultrasonic Cutting Machine For Plastic Rubber PP PE PVC

Description
Frequency:: 30kHz Power:: 500W
Knife:: Replaceable Name: Ultrasonic Cutting Machine
Warranty: 1 Year Usage: Cutting
Highlight:

500 Watts Ultrasonic Cutting Machine

,

Black ultrasonic cutter

,

30k Frequency Ultrasonic Cutting Machine

30kHz 500Watts Ultrasonic Cutting For Plastic Rubber PP PE PVC



Specification:



Model HSC30
Frequency 30kHz
Output Power 500W
Generator Digital generator, 452 x 180 x 100mm
Handle Φ44×220
Size of cutter Blade replaceable
Length of cable 3M
Outer skin Aluminum
Weight 8KG
Voltage 220V / 110V
Accessory Foot switch1pc;
Cut blade 5pcs;
1.5mm special hex wrench 1pc;
Screw M3×4L 2pcs
Material of cutter Magnalium alloy, titanium alloy, stainless steel



Description:

  • Environment-friendly (No noise, no smoke, no air contamination)
  • Smooth cutting of difficult-to-cut materials
  • Small hand-held size(can be attached to automotive machinery arms)
  • No special installation equipmen

Ultrasonic Cutting Machine is a class of device using ultrasonic energy for cutting. Instead of using traditional blade cutting,
ultrasonic cutting has its advantages of smooth, reliable cutting, accurate trimming, no deformation, no raising, fuzzing, spinning,
wrinkling etc. It can avoid the rough cutting-edge, coked edge, fuzzballs and other shortcomings of laser cutting machine.
Ultrasonic cutting machine is used for cutting rubber, synthetic fabric, cloth, plastic, sheet metal, food etc.
The cutting of food products using ultrasound is performed when an ultrasonic blade comes into contact with the product to be cut,
the high vibration of 40,000 pulses per second, makes this product very easily be cut even if it is of delicate or sticky texture composition.
The much higher vibration does not allow any product to stick to the blade. The cut is clean and without pressure on the product.



TYPICAL MATERIALS PROCESSED

  • Aramid Prepreg
  • Boron Prepreg
  • Carbon Phenolic Prepreg
  • Fiberglass Prepreg
  • Graphite Prepreg
  • Hybrid Prepreg
  • Thermoplastic Prepreg
  • Unidirectional Tape
  • Aluminum Core Cured/Uncured Rubber
  • Foam Core Sealant
  • Nomex Core
  • Phenolic Core
  • Woven Fabric
  • Braided Materials

Competitive Advantage:


★ The use of high power ultrasonic transducer vibrating element, ensure the long time stable working

★ The cutting speed is improved greatly, the efficiency 10 times higher than the traditional cutting knife.

★ Cutting all kinds of ordinary tool to cut products, solve production problems

★ Can be installed high hardness blade, cutting blade can be replaced, greatly reducing the use cost

★ Cutting tool complete varieties, can also be customized according to customer process shaped cutting

tool

★ Installation, easy to use, almost does not change the original cutting process

★ Can be used in the production of circular ultrasonic tool cutting equipment, rolling cutting, suitable

for cutting special

★ Can use air-cooled, water-cooled design, adapt to various working conditions and environment



Problem and solution:



Item Problem Cause description Solution
  Power switch to “I” the light is out Power plug loose Plugging in
Power line break Fix it yourself or send back
Power switch bad contact
Fuse is broken

Power light and

running light are OK

Air plug and socket not connected Tighten the connection position
Handle have abnormal Sound

Clean the card slot, use new

blade

Intermittently use, but the handle

keeping hot

Please send it back
Out-put air plug break
Screw loose Tighten the screw
Running light is ok Running switch bad Please send it back



Pictures showing:

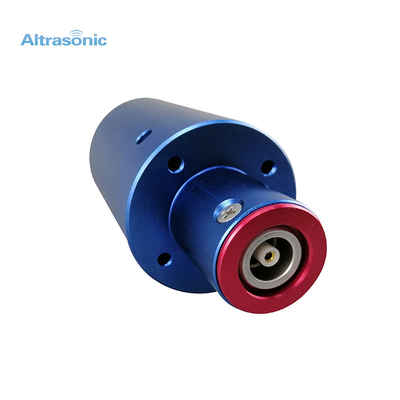

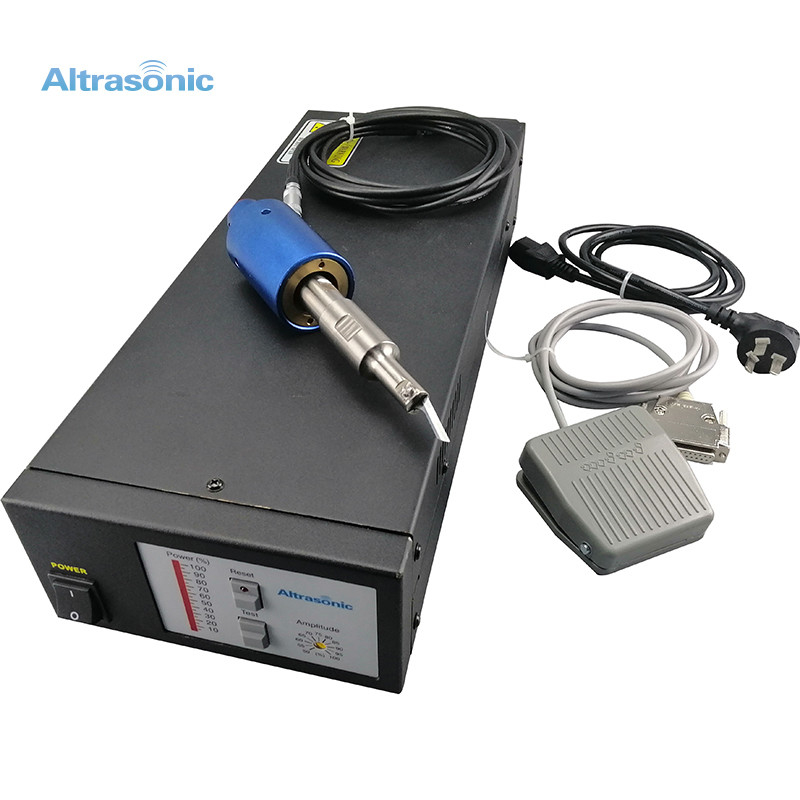

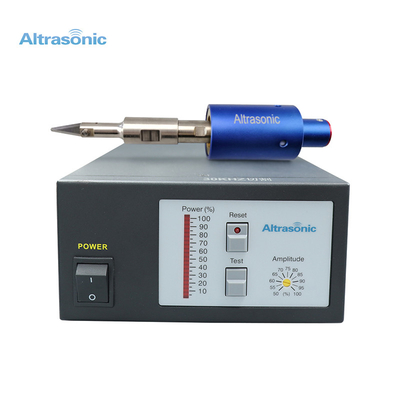

30kHz 500 Watts Ultrasonic Cutting Machine For Plastic Rubber PP PE PVC 0

30kHz 500 Watts Ultrasonic Cutting Machine For Plastic Rubber PP PE PVC 130kHz 500 Watts Ultrasonic Cutting Machine For Plastic Rubber PP PE PVC 230kHz 500 Watts Ultrasonic Cutting Machine For Plastic Rubber PP PE PVC 3
