Product Details:
|
| Name: | Ultrasonic Homogenizer | Frequency: | 20Khz |
|---|---|---|---|
| Power: | 300W | Weight: | 13Kg |
| Highlight: | Ultrasonic Lab Homogenizer,20Khz Ultrasonic Lab Homogenizer,300W Ultrasonic Lab Homogenizer |
||

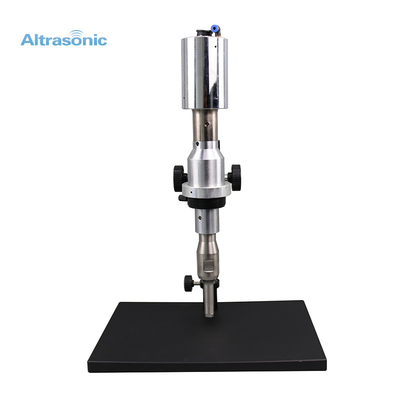

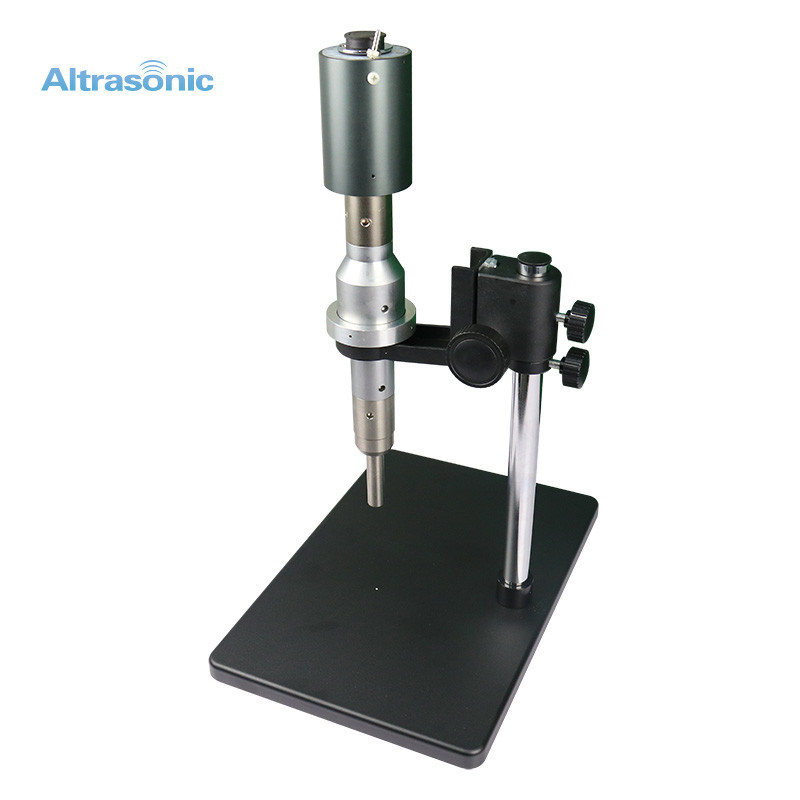

Lab Ultrasonic Homogenizer Dispersion Cell Disruption Emulsification Machine
Specifications:
|
Model |
S20-500 |
S20-1000 |
S20-1500 |
S20-2000 |
S20-3000 |
|
Frequency |
20±1 KHz |
20±1 KHz |
20±1 KHz |
20±1 KHz |
20±1 KHz |
|
Power |
500 W |
1000 W |
1500 W |
2000 W |
3000 W |
|
Voltage |
220±10% V |
220±10% V |
220±10% V |
220±10% V |
220±10% V |
|
Temperature |
300 ℃ |
300 ℃ |
300 ℃ |
300 ℃ |
300 ℃ |
|
Pressure |
35 MPa |
35 MPa |
35 MPa |
35 MPa |
35 MPa |
|
Intensity of sound |
＞20 W/cm² |
＞20 W/cm² |
＞30 W/cm² |
＞40 W/cm² |
＞60 W/cm² |
|
Max Capacity |
＞ 3 L/Min |
＞ 10 L/Min |
＞ 15 L/Min |
＞ 20 L/Min |
＞ 30 L/Min |
|
Material Of Tip Head |
Titanium Alloy |
Titanium Alloy |
Titanium Alloy |
Titanium Alloy |
Titanium Alloy |
Description:
Ultrasonic Homogenizer sometimes referred to as, Sonicator, Cell Disruptor, Sonifier, Probe Sonicator, Sonic Dismembrator, and Ultrasonic Liquid Processor.
Ultrasound creates acoustic cavitation, which produces violently imploding vacuum bubbles,
causing shock waves, microjets and strong shear forces as well as extreme local temperatures
(~5,000 K) and pressures (~1,000 atm). These extreme conditions result in exceptionally efficient
mixing, yielding nanoemulsions with very small droplet sizes and enormous contact areas between
all components.
Applications:
Food processing
Competitive Advantage:
1. Custom System Designs and Consulting:
2. Active Ultrasonics provides consulting services and custom reactor designs.
3. High amplitude probe flow cells
4. Unrestricted flow-through cylindrical systems
5. High Power Probe Sonicator
