Product Details:
|
| Frequency: | 40khz | Blade: | 82MM |
|---|---|---|---|
| Material: | Titanium | Power: | 500w |
| Weight (KG): | 8KG | Application: | Rubber/Plastic/Food |
| Highlight: | Titanium Alloy Ultrasonic Cutting Machine,Titanium Alloy Horn Rubber Cutter,800 Watt Ultrasonic Cutting Machine |
||

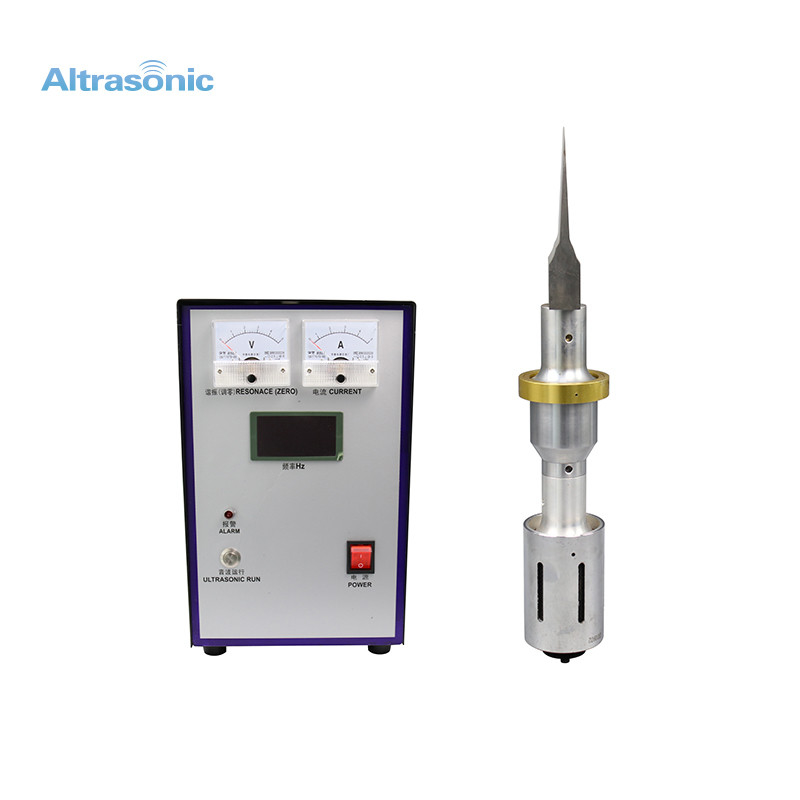

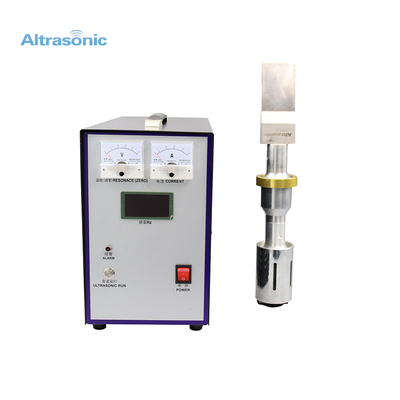

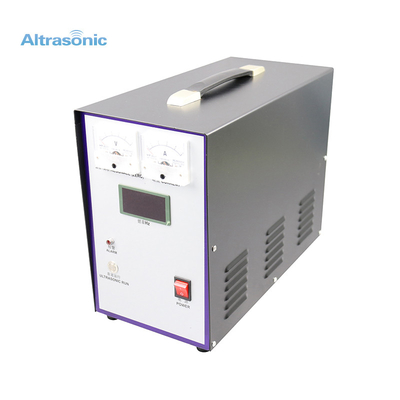

40khz Ultrasonic Cutting Machine For Rubber Cutting Titanium Alloy Horn
Description:
The principle of ultrasonic rubber cutting machine is to convert 50/60Hz current into 20, 30 or 40kHz electrical energy through an ultrasonic generator. The converted high-frequency electrical energy is converted into mechanical vibration of the same frequency again by the transducer, and then the mechanical vibration is transmitted to the cutting knife through a set of amplitude modulator devices that can change the amplitude.
Specification:
| Frequency | 40Khz |
| Power | 500W/800W |
| Inupt | AC110-240V, 50/60Hz |
| Power Controller | stepping or continuous |
| Material of Cutting Head | aluminum alloy, stainless steel, titanium alloy, alloy steel. |
| Machine Wight | 4 kg-16KG |
| Accessories | foot switch, additional blade |
| Cooling Device | compressed air mouth can be installed. |
| Cable Length | 2M or customized |
| Foot Switch | available |
Application:
1. For thermal plastic gate cutting and flush cutting.
2. For non-woven or woven cutting,textile cutting, fabric cutter, curtain cutting,window blind fabric
3. For Rubber, PVC, leather plastic, cardboard, acrylic, polyprolene and so on cutting.
4. For tape and film cutting .
5. For paper cutting,printing industry cutting.
6. For package material cutting
7. For the automotive industry cutting
Detailed Image:
