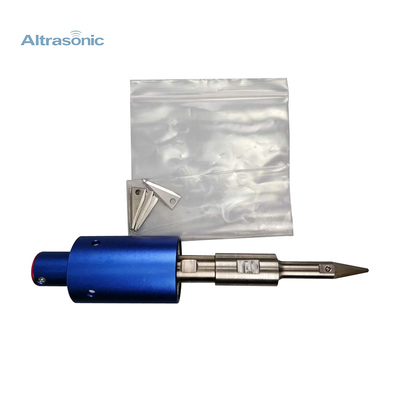

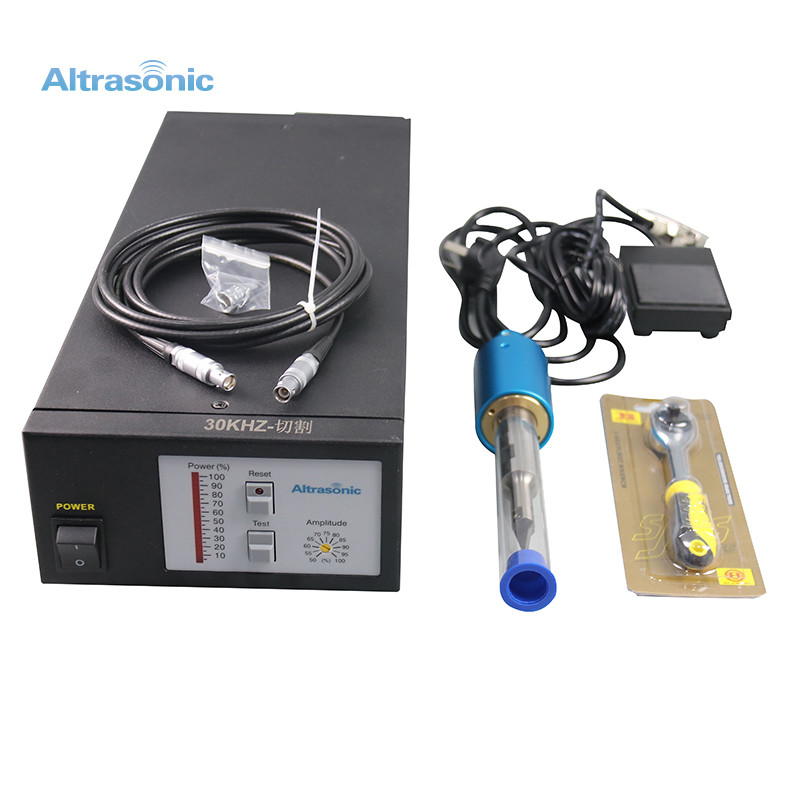

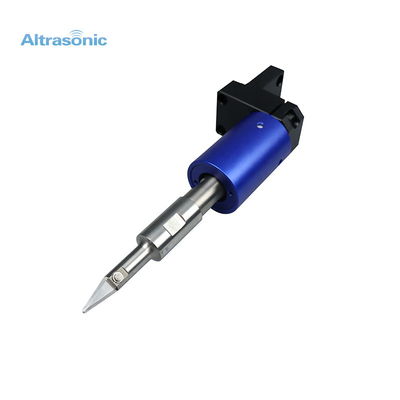

Air Cooling 30khz Ultrasonic Cutter 500W For Plastic

Air Cooling 30khz Ultrasonic Cutter 500W For Plastic
Air Cooling 30khz Ultrasonic Cutter 500W For Plastic
Air Cooling 30khz Ultrasonic Cutter 500W For Plastic Air Cooling 30khz Ultrasonic Cutter 500W For Plastic Air Cooling 30khz Ultrasonic Cutter 500W For Plastic Air Cooling 30khz Ultrasonic Cutter 500W For Plastic

Large Image :  Air Cooling 30khz Ultrasonic Cutter 500W For Plastic

Product Details:
Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HS-C30
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Carton packing
Delivery Time: 7 workdays afer receiving the payment
Payment Terms: T/T, Western Union
Supply Ability: 1000 pieces per month
Contact Now

Air Cooling 30khz Ultrasonic Cutter 500W For Plastic

Description
Frequency: 30Khz Power: 500W
Brand Name: Altrasonic Color: Black
Application: Cutting Weight: 8KG
Cooling Method: Air Cooling Place Of Origin: Hangzhou, China
Highlight:

30k Ultrasonic Plastic Cutter

,

30k Ultrasonic Cutting Machine

,

Air Cooling Ultrasonic Plastic Cutter


Factory Hot Sale 30khz Ultrasonic Cutter for plastic​

Specification:

Model
HS-C30
Frequency
30KHZ
Output Power
200W
Generator
Digital generator, 452 x 180 x 100mm
Handle
Φ44×220
Size of cutter
Blade replaceable
Length of cable
3M
Outer skin
Aluminum
Weight
8KG
Voltage
220V / 110V
Accessory
Foot switch 1pc；Cut blade 2pcs；
1.5mm special hex wrench 1pc；Screw M3×4L 2pcs
Material of blade
titanium alloy, stainless steel

Description:

Ultrasonic cutting principle is through the ultrasonic generator to 50 / 60Hz current into 20,30 or 40kHz power. The converted high frequency electric energy is again converted into mechanical vibrations at the same frequency by the transducer, and then the mechanical vibration is transmitted to the cutter by means of a set of amplitude modulator devices which can change the amplitude. The cutting tool transmits the received vibration energy to the cutting surface of the workpiece to be cut in which the vibration energy is cut by means of activating the molecular energy of the material to be cut and opening the molecular chain. Quality monitoring can be carried out to facilitate statistical evaluation with high accuracy.



Application:

  • Natural fibers
  • Synthetic fiber
  • Thin plastic products(Such as plastic film, cell phone case)
  • All types of paper, bottom film
  • Rubber, silicone
  • Repair of printed circuit board copper foil
  • ABS,PP,PE … other organic plastic sheet less than 2mm
  • Various types of synthetic fabrics
  • Plastic

Advantages

1. Using the hand-grab-type, easy to operate;
2. Imported transducer, strong power, good stability;
3. Flexible in a variety of application
4. Spot Welding, Cutting, crew insert and riveting, etc
5. The welding unit could be installed on auto. welding lines
6. Overload protect



Product display:



Air Cooling 30khz Ultrasonic Cutter 500W For Plastic 0Air Cooling 30khz Ultrasonic Cutter 500W For Plastic 1
