Product Details:
|
| Frequency: | 30khz | Voltage: | 220V / 110V |
|---|---|---|---|
| Length Of Cable: | 3M | Material Of Blade: | Steel |
| Power: | 2000W | Handle: | Φ44×220 |
| High Light: | Ultrasonic Rubber Cutter 20k,20k Ultrasonic Cutting Machine,Steel Blade Ultrasonic Cutting Machine |
||
20khz Ultrasonic Cutting Machine Rubber Cutter HS-CR20
The principle of ultrasonic rubber cutting knife is completely different from that of traditional cutting. It is the use of ultrasonic energy, will be cut the local heating melting of the material, so as to achieve the purpose of cutting rubber. So ultrasonic cutting does not need a sharp edge, also do not need a lot of pressure, will not cause vulcanization damage.
The basic composition of ultrasonic rubber cutting knife is ultrasonic transducer, horn, tool head (blade), drive power supply. Ultrasonic drive power supply will be converted into high frequency and high voltage AC current, to the ultrasonic transducer. In fact, ultrasonic transducer is equivalent to an energy conversion device, which can convert the input electrical energy into mechanical energy, namely ultrasonic wave. Its expression form is the transducer in the longitudinal stretch back and forth movement. The frequency of the telescopic motion is equal to the frequency of the high frequency AC current supplied by the driving power supply. The function of the horn is to fix the whole ultrasonic vibration system and adjust the output amplitude of the transducer. On the one hand, the tool head amplifies the amplitude and focuses the ultrasonic wave. On the other hand is the output of ultrasonic, using the similar cutting edge of the cutting knife, the ultrasonic energy is concentrated into the cutting part of the material to be cut.
Specification:
| Model | HS-C30 |
| Frequency | 30KHZ |
| Output Power | 200W |
| Generator | Digital generator, 452 x 180 x 100mm |
| Handle | Φ44×220 |
| Size of cutter | Blade replaceable |
| Length of cable | 3M |
| Outer skin | Aluminum |
| Weight | 8KG |
| Voltage | 220V / 110V |
| Accessory | Foot switch 1pc；Cut blade 2pcs； 1.5mm special hex wrench 1pc；Screw M3×4L 2pcs |
| Material of blade | steel |
Application range:
Ultrasonic cutting machine is suitable for: raw rubber cutting, pipe cutting, frozen meat, candy, chocolate cutting, printed circuit board, industrial, jewelry, plastic products processing, food processing, printing industry, automotive industry. Natural fiber segmentation (divided into fine lines), synthetic fiber deep digging (multilayer circuit cutting), plastic casing processing, thin synthetic resin lacquer (suitable for large areas) All types of paper and base film origin (China) or handheld Cutting machine and so on. The use of ultrasonic cutting machines can also be extended, such as digging holes, shovel digging, scraping paint, engraving, slitting and so on.

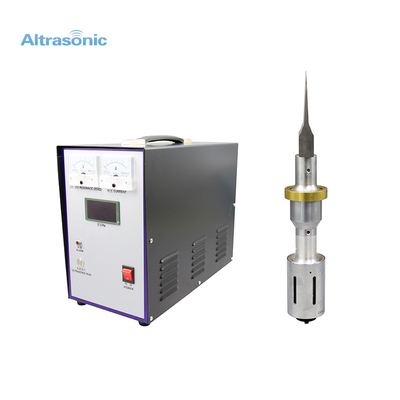

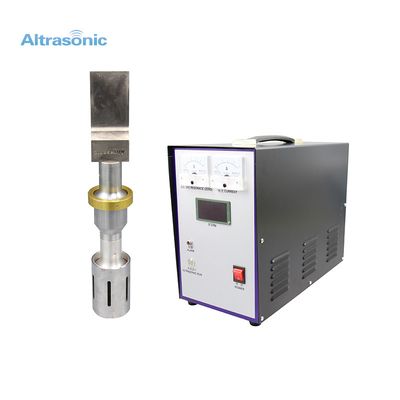

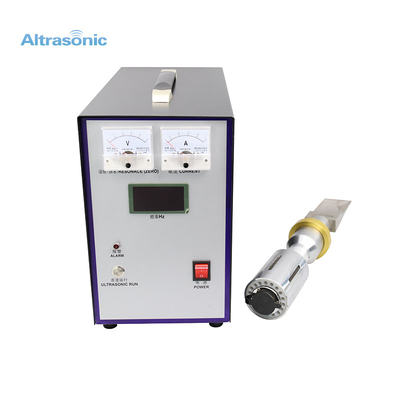

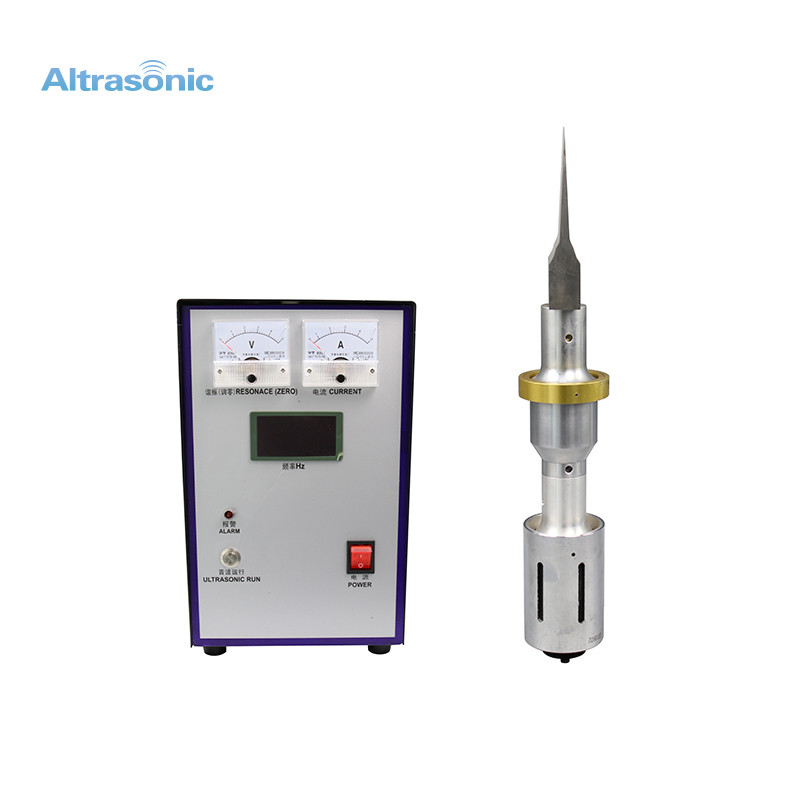

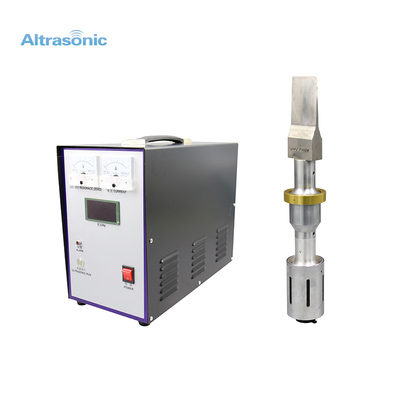

Detailed Image:
