Product Details:
|
| Part Name: | Impedance Analyzer | Frequency Range: | 1KHz～500KHz/3Mhz/5Mhz |
|---|---|---|---|
| Frequency Accuracy: | ±10 Ppm | Amplification: | Piezoelectric Ceramic, Ultrasonic Transducer, Power Ultrasonic |
| Net Weight: | 3.5kg | Dimensions: | 240*190*100mm |
| Speed Of Measuring: | 0.5s / One Pass | Phase Accuracy: | 0.15 Degree |
| Impedance Range: | 0.1Ω~1MΩ | Frequency Step: | 0.1Hz To Any |
| Highlight: | Ceramic Ultrasonic Impedance Analyzer,Ultrasonic Impedance Analyzer 10 Ppm |
||
Deacription:

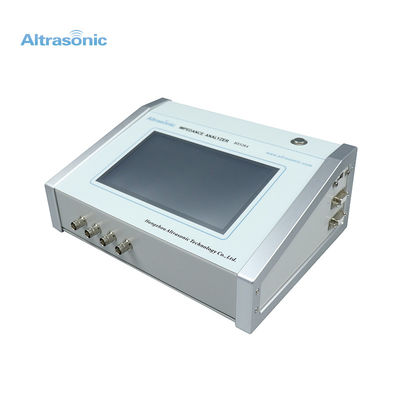

Ultrasonic impedance analyzer, also known as ultrasonic frequency measuring instrument, ultrasonic transducer parameter analyzer, ultrasonic transducer impedance tester, ultrasonic performance analyzer, the instrument consists of hardware and software.
Specification:
| Product name | Ultrasonic impedance analyzer |
| Frequency range | 1kHz~500kHz |
| Measurement Index | All the parameters, the graph |
| Measurement Accuracy | <0.5% |
| Frequency Accuracy | ±10ppm |
| Impedance Range | 1Ω~1MΩ |
| Size | 24*19*10cm |
| Test environment temperature | 10～40℃ |
| Frequency Step | 0.1Hz～Any |
Product Feature:
Judging product defects by admittance circle and logarithmic curve at a glance
The test data can be stored, printed and traceable on the computer.
Impedance scanning curve can be printed to facilitate sample analysis and archiving.
One-click start-up test function, simple operation, high production efficiency.
