Product Details:
|
| Part Name: | Impedance Analyzer | Frequency Range: | 1KHz～500KHz/3Mhz/5Mhz |
|---|---|---|---|
| Frequency Accuracy: | ±10 Ppm | Amplification: | Piezoelectric Ceramic, Ultrasonic Transducer, Power Ultrasonic |
| Net Weight: | 3.5kg | Dimensions: | 240*190*100mm |
| Speed Of Measuring: | 0.5s / One Pass | Phase Accuracy: | 0.15 Degree |
| Impedance Range: | 0.1Ω~1MΩ | Frequency Step: | 0.1Hz To Any |
| Highlight: | 1KHz Ultrasonic Impedance Analyzer,Piezoelectric Ceramic Precision Impedance Analyzer,10 Ppm Precision Impedance Analyzer |
||
Specification:
| Product name | Ultrasonic impedance analyzer |
| Frequency range | 1kHz~500kHz |
| Measurement Index | All the parameters, the graph |
| Measurement Accuracy | <0.5% |
| Frequency Accuracy | ±10ppm |
| Impedance Range | 1Ω~1MΩ |
| Size | 24*19*10cm |
| Test environment temperature | 10～40℃ |
| Frequency Step | 0.1Hz～Any |
Deacription:

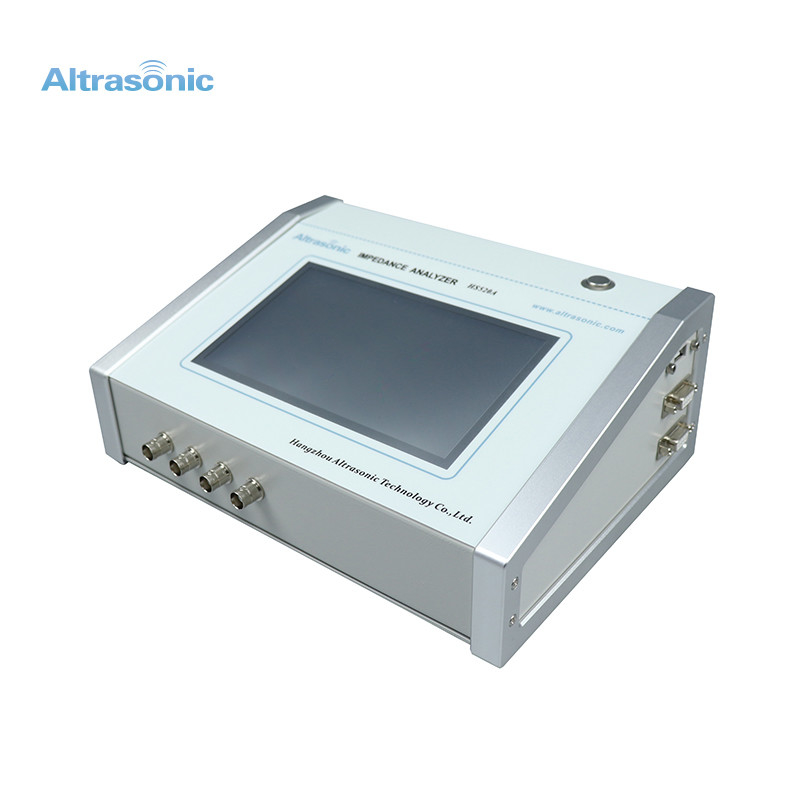

Ultrasonic Analyzer HS520A is jointly developed by the Automation department of China Tsinghua University and the Chinese Academy of Sciences. It was widely used in the detection of piezoelectric ultrasonic devices and equipment of integrated solutions.
Product Feature:
Judging product defects by admittance circle and logarithmic curve at a glance
The test data can be stored, printed and traceable on the computer.
Impedance scanning curve can be printed to facilitate sample analysis and archiving.
One-click start-up test function, simple operation, high production efficiency.
