Product Details:
|
| Part Name: | Impedance Analyzer | Frequency Range: | 1KHz～500KHz/3Mhz/5Mhz |
|---|---|---|---|
| Frequency Accuracy: | ±10 Ppm | Amplification: | Piezoelectric Ceramic, Ultrasonic Transducer, Power Ultrasonic |
| Net Weight: | 3.5kg | Dimensions: | 240*190*100mm |
| Speed Of Measuring: | 0.5s / One Pass | Phase Accuracy: | 0.15 Degree |
| Impedance Range: | 0.1Ω~1MΩ | Frequency Step: | 0.1Hz To Any |
| Highlight: | 0.15 Degree Ultrasonic Impedance Analyzer,0.15 Degree Impedance Analyser,Capacitance Ultrasonic Impedance Analyzer |
||
Specification
| Product name | Ultrasonic impedance analyzer |
| Frequency range | 1kHz~500kHz |
| Measurement Index | All the parameters, the graph |
| Measurement Accuracy | <0.5% |
| Frequency Accuracy | ±10ppm |
| Impedance Range | 1Ω~1MΩ |
| Frequency Step | 0.1Hz～Any |
Description

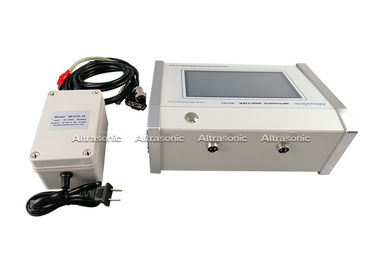

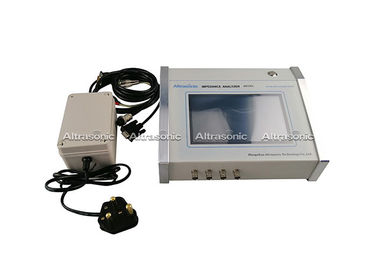

The ultrasonic impedance analyzer is composed of two parts: hardware and software. The product can measure and evaluate the parameters, quality and comprehensive performance of ultrasonic equipment.
Advantages
Faster
Small volume
Light weight
Higher accuracy
Easy to carry and move
Strong practicality
Parameters that can be measured by impedance analyzer
Static capacitance
Resonance frequency
Anti-resonance frequency
Mechanical quality factors
Small impedance
Large impedance
Impedance phase
Frequency bandwidth
Electromechanical coupling coefficient
