Product Details:
|
| Part Name: | Impedance Analyzer | Frequency Range: | 1KHz～500KHz/3Mhz/5Mhz |
|---|---|---|---|
| Frequency Accuracy: | ±10 Ppm | Amplification: | Piezoelectric Ceramic, Ultrasonic Transducer, Power Ultrasonic |
| Net Weight: | 3.5kg | Dimensions: | 240*190*100mm |
| Speed Of Measuring: | 0.5s / One Pass | Phase Accuracy: | 0.15 Degree |
| Impedance Range: | 0.1Ω~1MΩ | Frequency Step: | 0.1Hz To Any |
| Highlight: | 500khz Ultrasonic Impedance Analyzer,Ultrasonic Transducer Impedance Analyzer,Piezoelectric Ceramic Impedance Analyzer |
||
Description

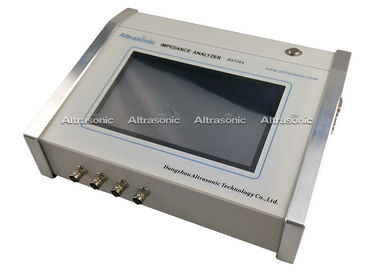

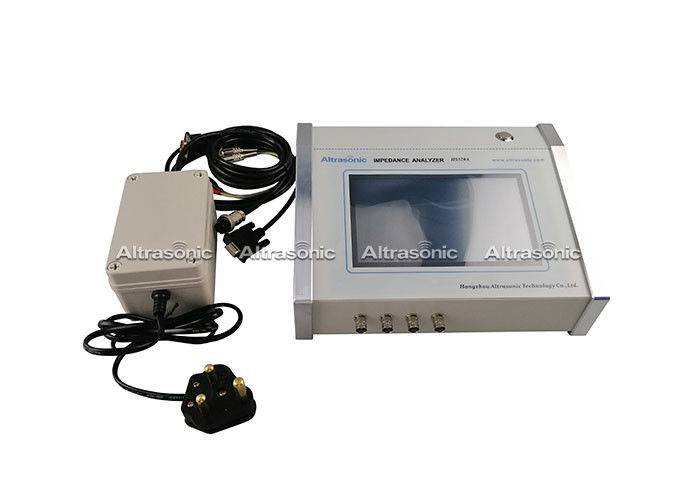

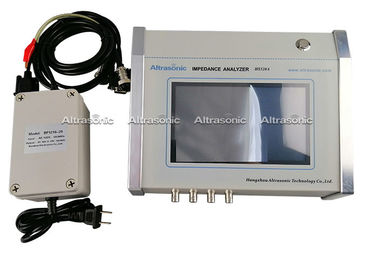

The ultrasonic impedance analyzer is composed of two parts: hardware and software. The product can measure and evaluate the parameters, quality and comprehensive performance of ultrasonic equipment.
Specification
| Product name | Ultrasonic impedance analyzer |
| Frequency range | 1kHz~500kHz |
| Measurement Index | All the parameters, the graph |
| Measurement Accuracy | <0.5% |
| Frequency Accuracy | ±10ppm |
| Impedance Range | 1Ω~1MΩ |
| Frequency Step | 0.1Hz～Any |
Advantages
Good experience: large screen, full screen touch
Portability: small size and light weight
Simple operation: connect to a computer for operation, and the software is fully compatible, users no longer need to be familiar with software operations
Application
1. Medical ultrasound
2. Ultrasonic cleaning
3. Ultrasonic welding
4. Power ultrasound equipment
5. Piezoelectric ceramic production inspection
