Product Details:
|
| Part Name: | Impedance Analyzer | Frequency Range: | 1KHz～500KHz/hz/5Mhz |
|---|---|---|---|
| Frequency Accuracy: | ±10 Ppm | Amplification: | Piezoelectric Ceramic, Ultrasonic Transducer, Power Ultrasonic |
| Net Weight: | 3.5kg | Dimensions: | 240*190*100mm |
| Speed Of Measuring: | 0.5s / One Pass | Phase Accuracy: | 0.15 Degree |
| Impedance Range: | 0.1Ω~1MΩ | Frequency Step: | 0.1Hz To Any |
| Highlight: | Accurate 0.1Hz Ultrasonic Impedance Analyzer,Impedance Analyzer Ultrasonic Equipment,Ultrasonic Impedance Analyser |
||
Specification
| Product name | Ultrasonic impedance analyzer |
| Frequency range | 1kHz~500kHz |
| Measurement Index | All the parameters, the graph |
| Measurement Accuracy | <0.5% |
| Frequency Accuracy | ±10ppm |
| Impedance Range | 1Ω~1MΩ |
| Size | 24*19*10cm |
| Test environment temperature | 10～40℃ |
| Frequency Step | 0.1Hz～Any |
Deacription

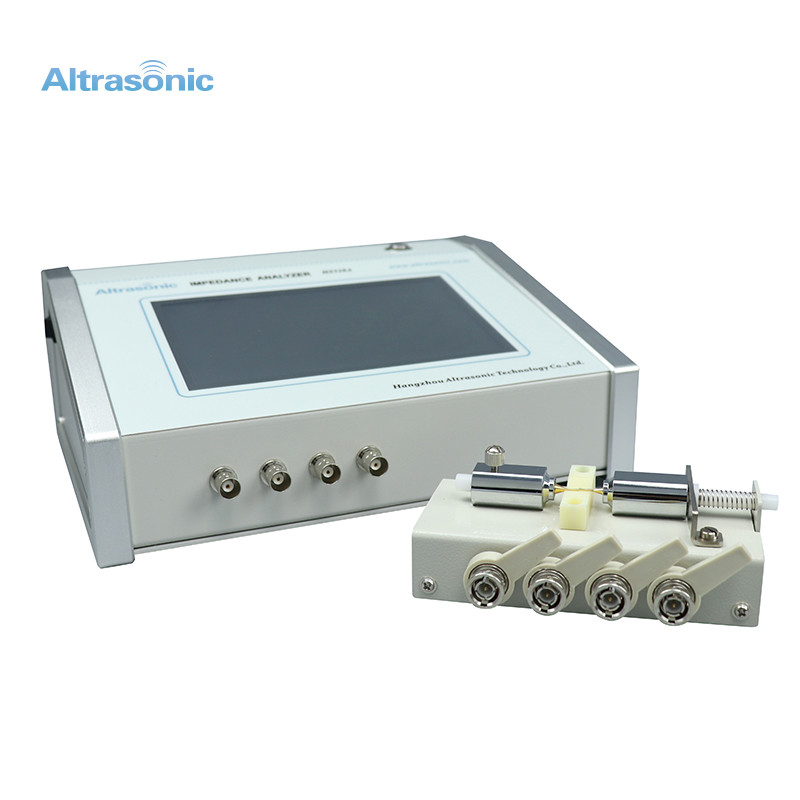

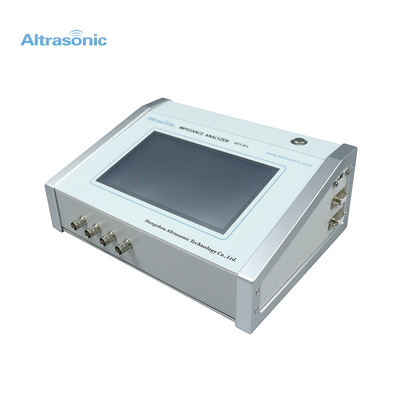

Ultrasonic frequency tester, automatic frequency tracking, measurement of ultrasonic transducer and mold frequency, not only the resonance frequency is a parameter, there are also parameters such as impedance and capacitance.
Advantages
1. Impedance measurement has high precision, accurate to 0.1Hz
2. Automatic filtering and statistics, parameter filtering can be set
3. The test result completely distinguishes the vibrating point and the half power point
4. It is easy to judge defects through admittance circle and logarithmic curve
5.The test data computer can be stored and printed unlimitedly and the data source can be traced
