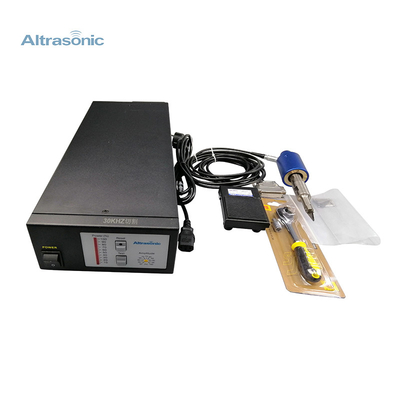

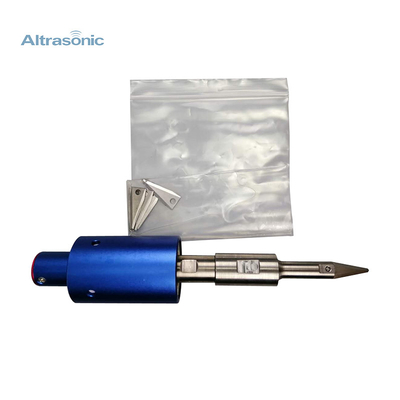

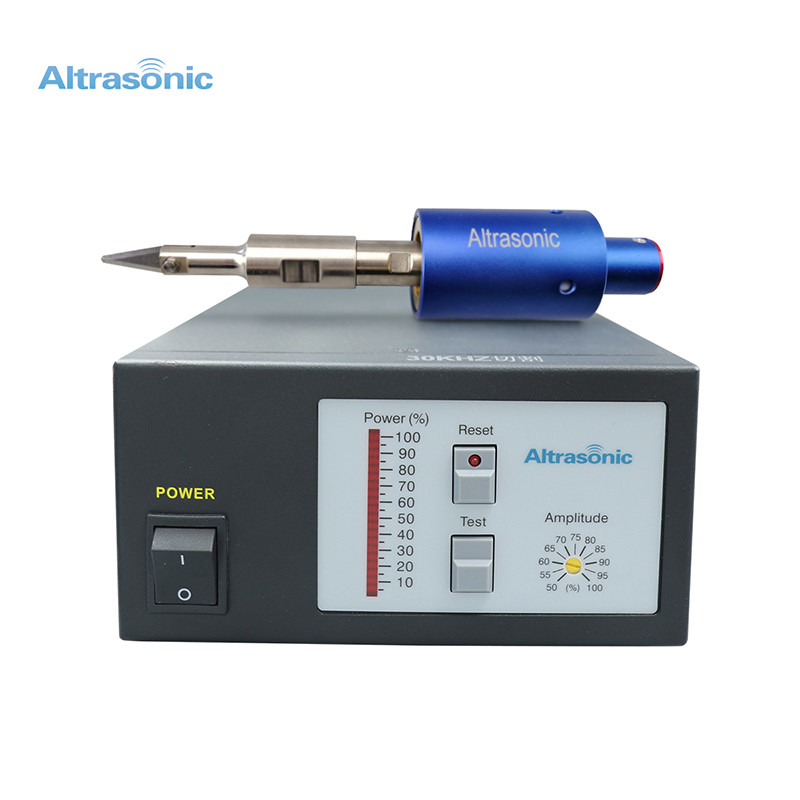

CE Smooth Portable Ultrasonic Cutter For Fiber 30khz 500w

CE Smooth Portable Ultrasonic Cutter For Fiber 30khz 500w
CE Smooth Portable Ultrasonic Cutter For Fiber 30khz 500w CE Smooth Portable Ultrasonic Cutter For Fiber 30khz 500w CE Smooth Portable Ultrasonic Cutter For Fiber 30khz 500w

Large Image :  CE Smooth Portable Ultrasonic Cutter For Fiber 30khz 500w

Product Details:
Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HS-C30
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 workdays after receipt of the full payment.
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 5,000 units per month

CE Smooth Portable Ultrasonic Cutter For Fiber 30khz 500w

Description
Frequency: 30khz Voltage: 220V / 110V
Length Of Cable: 3M Material Of Blade: Titanium Alloy, Stainless Steel
Power: 200W Handle: Φ44×220
Outer Skin: Aluminum Weight: 8kg
Certificate: CE Aftersales Service: Online Service
High Light:

30khz Portable Ultrasonic Cutter

,

Smooth Ultrasonic Cutting Machine

,

500w Portable Ultrasonic Cutter

2022 CE Smooth Portable 30khz 500w Ultrasonic Cutting Machine For Fiber



Specification:

Model HS-C30
Frequency 30KHZ
Output Power 200W
Generator Digital generator, 452 x 180 x 100mm
Handle Φ44×220
Size of cutter Blade replaceable
Length of cable 3M
Outer skin Aluminum
Weight 8KG
Voltage 220V / 110V
Accessory Foot switch 1pc;Cut blade 2pcs;
1.5mm special hex wrench 1pc;Screw M3×4L 2pcs
Material of blade Titanium alloy, stainless steel




Description:

This ultrasonic machine uses ultrasonic energy to heat and melt the material to be cut locally, so as to achieve the purpose of cutting the material. Therefore, ultrasonic cutting does not require a sharp edge, nor does it require a lot of pressure, and will not cause chipping or damage to the material being cut. At the same time, because the cutting knife is doing ultrasonic vibration, the friction resistance is very small, and the material to be cut is not easy to stick to the blade. This is particularly effective for viscous and elastic materials, frozen materials, such as food, rubber materials, and objects that are inconvenient to apply pressure.



30K ultrasonic multi-function handheld cutter applies to:

  • Natural fibers
  • Synthetic fiber
  • Thin plastic products(Such as plastic film, cell phone case)
  • All types of paper, bottom film
  • Rubber, silicone
  • Repair of printed circuit board copper foil
  • ABS,PP,PE … other organic plastic sheet less than 2mm
  • Various types of synthetic fabrics
  • 30K ultrasonic cutting knife can be used for hand-held cutting and automatic mechanical clamping.



Advantages of Ultrasonic Cutting Materials



1. Ultrasonic vibration dramatically reduces resistance during cutting, realizing the best sharpness.

2. Cutting surface finish is good, good bonding performance.

3. It is possible to cut and deburr the hard material and the thick material by the high power specification than before.

4. Fast, high efficiency, no pollution.

5. Even with high power, due to its compact unit structure, it is easy to install in automatic machines and robots.

6. Adopt replacement type knife to reduce running cost





CE Smooth Portable Ultrasonic Cutter For Fiber 30khz 500w 0CE Smooth Portable Ultrasonic Cutter For Fiber 30khz 500w 1CE Smooth Portable Ultrasonic Cutter For Fiber 30khz 500w 2CE Smooth Portable Ultrasonic Cutter For Fiber 30khz 500w 3
