Product Details:
|
| Frequency: | 30kHz | Power: | 500watt |
|---|---|---|---|
| Power Supply: | Ultrasonic Digital Generator | Cutting Thickness: | 1-7mm |
| Voltage: | 220V / 110V | Name: | Ultrasonic Fabric Cutting Machine |
| Model: | HS-C30 | Material Of Cutter: | Titanium Alloy |
| Weight: | 11kg | Handle: | Φ44×220 |
| Highlight: | 30kHz Ultrasonic Plastic Cutter,800w Ultrasonic Plastic Cutter,Titanium Alloy Ultrasonic Fabric Cutting Machine |
||
Description:
Ultrasonic cutting is the use of ultrasonic energy, will be cutting the material of local heating melting, to achieve the purpose of cutting materials, without sharp edge.
Specification:
| Model | HS-C30 |
| Frequency | 30kHz |
| Output Power | 500watt |

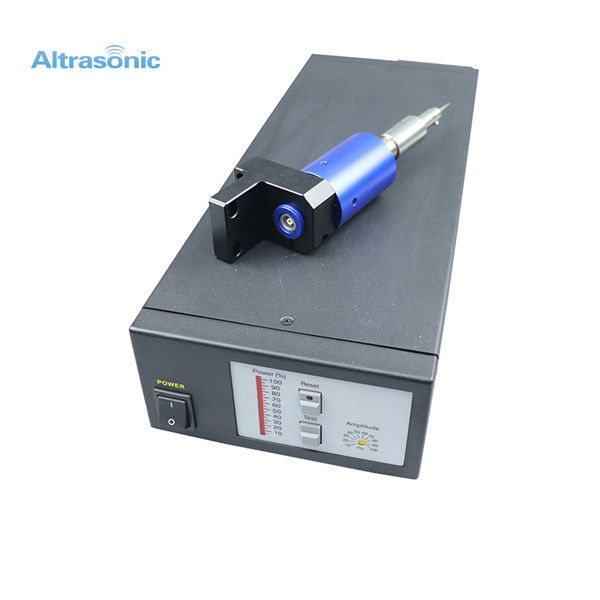

| Generator | Digital generator, 452 x 180 x 100mm |

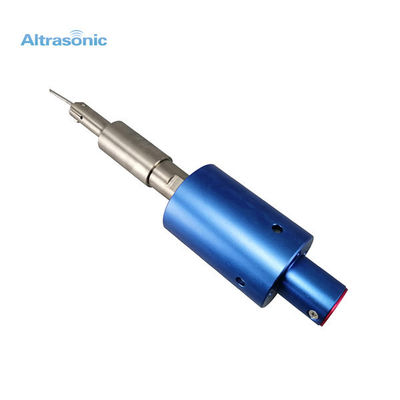

| Handle | Φ44×220 |
| Size of cutter | Blade replaceable |
| Length of cable | 3M |
| Outer skin | Aluminum |
| Weight | 11KG |
| Voltage | 220V / 110V |

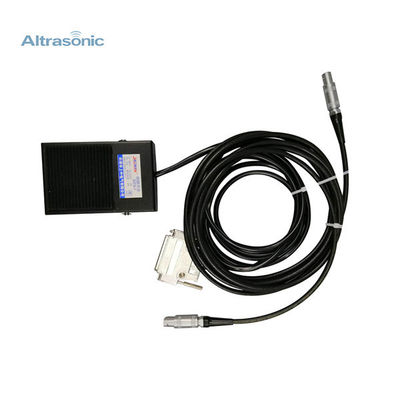

| Accessory | Foot switch1pc; 1.5mm special hex wrench 1pc; Screw M3×4L 2pcs |
| Material of cutter | titanium alloy |
Competitive Advantages:
1. It is suitable for automaton, manipulator, plotter and so on
2. It can be used in thermoplastic material processing.
3. The amplitude of the cutter is much higher than that of the ordinary model, which increases the sharpness of the cutter
4. Cut and seal at the same time to make the processed products without burr
5. The processing range can be used to cut off the three-dimensional shape part and open the hole for processing
Application:
Mainly used in many kinds of plastic materials,such as: ABS PE, PVC, Acrylic, Nonwovens, Chloroprene Rubber, Corrugated Paper, Polywood, Glass Fiber Resin, Thick Cardboard, Linen (linoleum), Urethane, Nylon, PP, etc.
