25kHz 500W Ultrasonic Cutting Machine For Various Fabrics Cuter

25kHz 500W Ultrasonic Cutting Machine For Various Fabrics Cuter
25kHz 500W Ultrasonic Cutting Machine For Various Fabrics Cuter 25kHz 500W Ultrasonic Cutting Machine For Various Fabrics Cuter 25kHz 500W Ultrasonic Cutting Machine For Various Fabrics Cuter

Large Image :  25kHz 500W Ultrasonic Cutting Machine For Various Fabrics Cuter

Product Details:
Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HS-C25
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 10 work days
Payment Terms: T/T, Western Union
Supply Ability: 3000 units/month

25kHz 500W Ultrasonic Cutting Machine For Various Fabrics Cuter

Description
Model: HS-C25 Frequency: 25kHz
Power: 500w Cutting Material: Fabrics
Total Length Of Ultrasonic Probe: 255mm Material Of Cutting: Steel
Cable Length: 150-300cm Cutting Thickness Range: 0~12mm
Certificate: CE Warranty: 1 Year
High Light:

Fabrics Cuter Ultrasonic Cutting Machine

,

500W Ultrasonic Cutting Machine

,

12mm Ultrasonic Cutting Machine

25kHz 500W Ultrasonic Cutting Machine For Various Fabrics Cuter



Products Description:



The basic structure of the sonic cutting machine. Ultrasonic transducer, ultrasonic booster, ultrasonic cutting knife, ultrasonic generator mains power is converted into high frequency and high voltage AC current, which is output to the ultrasonic transducer. Ultrasonic transducer is equivalent to energy conversion device, it can convert the input electric energy into mechanical energy, namely ultrasonic wave. The ultrasonic transducer stretches back and forth in the longitudinal direction, and the frequency of the stretch movement is equal to the frequency of the high-frequency alternating current supplied by the driving power source. Folding ultrasonic horn The ultrasonic horn amplifies the output amplitude of the ultrasonic transducer.



25kHz 500W Ultrasonic Cutting Machine For Various Fabrics Cuter 0

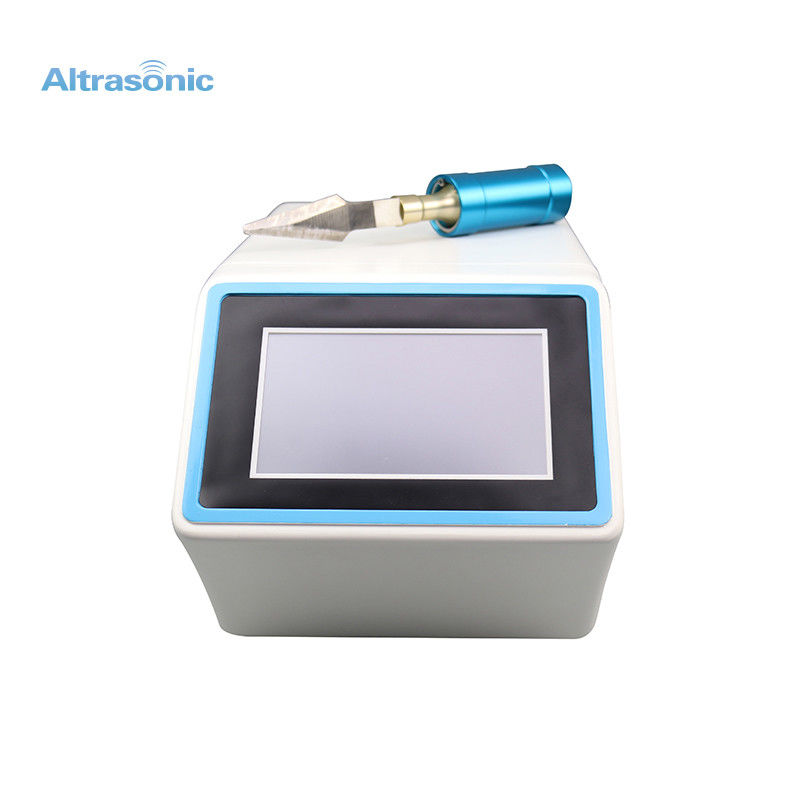

①Host ②Power switch ③Touch screen ④Ultrasonic cutter



Specification:



Item No HS-C25
Frequency 25kHz
Power 500W
Input AC110-240V, 50/60Hz
Cutting material Non-metal thin film materials
Material of cutting Die steel
Total length of ultrasonic probe 255mm
Cable length 150-300cm
Cutting thickness range 0-12mm



Main features:



■ Automatic resonance point, automatic frequency sweep tracking within the frequency range of 19-25KHz.
■ Automatic amplitude compensation, which can automatically work at the best frequency point and output point according to the fluidity of the sample.
■ Adopt color industrial touch screen controller, all functions are integrated display.
■ Scientific design, 10 groups of users store settings and realize directly on a single machine.
■ Independent on/off pulse, with three modes of continuous use, pulse, and timed continuous ultrasound.



Conditions of use:

1. Ambient temperature: 0~60℃
2. Relative humidity: no more than 85% (T=20℃)
3. Power supply: 220V/50Hz±10%
4. Cutting knife temperature: 0~120℃
5. Processing object: non-metal thin film materials



Detailed images:

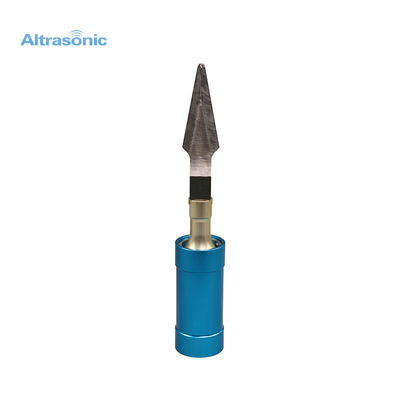

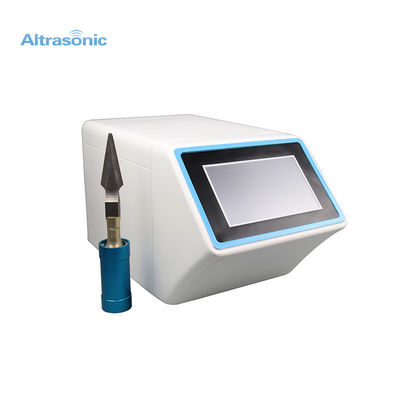

25kHz 500W Ultrasonic Cutting Machine For Various Fabrics Cuter 125kHz 500W Ultrasonic Cutting Machine For Various Fabrics Cuter 2

25kHz 500W Ultrasonic Cutting Machine For Various Fabrics Cuter 325kHz 500W Ultrasonic Cutting Machine For Various Fabrics Cuter 4
