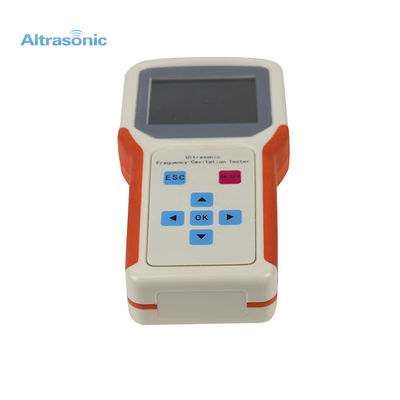

Ultrasonic Cleaning LCD 10.0KHz Sound Frequency Tester

Ultrasonic Cleaning LCD 10.0KHz Sound Frequency Tester
Ultrasonic Cleaning LCD 10.0KHz Sound Frequency Tester Ultrasonic Cleaning LCD 10.0KHz Sound Frequency Tester Ultrasonic Cleaning LCD 10.0KHz Sound Frequency Tester

Large Image :  Ultrasonic Cleaning LCD 10.0KHz Sound Frequency Tester

Product Details:
Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HS-520S
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: carton
Delivery Time: 7 workdays after receipt of the full payment.
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 500 pieces/month

Ultrasonic Cleaning LCD 10.0KHz Sound Frequency Tester

Description
Model: HS-520S Measuring Range(w/cm2): 0.02-2.55
Screen: LCD Power: 110~250V,5V/1.5A
Resolution(w/cm2): 0.01 Measuring Frequency: 10.0KHz-99.9KHz
High Light:

lcd sound frequency tester

,

10.0KHz sound frequency tester

,

0.01w/cm2 sound frequency tester

Ultrasonic Cleaning LCD 10.0KHz Sound Frequency Tester

Description:



Ultrasonic sound intensity (frequency) tester is an instrument used to measure the ultrasonic sound field intensity (field intensity) in liquids. It is mainly used in ultrasonic cleaning tanks, ultrasonic liquid sonolysis applications and other occasions. Measurement parameters: ultrasonic sound intensity (W /cm2), ultrasonic working frequency (KHz), sound intensity, minimum sound intensity, etc.




Ultrasonic Cleaning LCD 10.0KHz Sound Frequency Tester 0Ultrasonic Cleaning LCD 10.0KHz Sound Frequency Tester 1Ultrasonic Cleaning LCD 10.0KHz Sound Frequency Tester 2Ultrasonic Cleaning LCD 10.0KHz Sound Frequency Tester 3



No Description No Description No Description

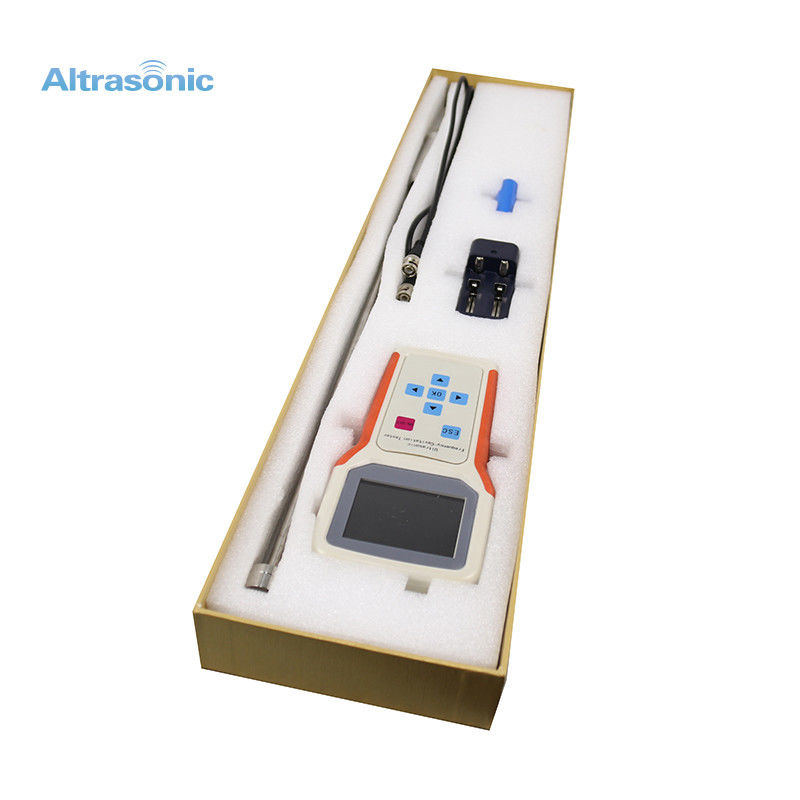

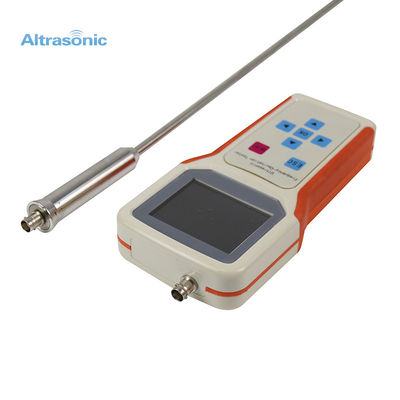

1 Instrument BNC connector 7 Right button 13 Stainless steel rod
2 LCD screen 8 Confirm button 14 Probe BNC connector
3 Back button 9 Down button 15 rechargeable battery
4 Power switch button 10 Communication Interface 16 charger
5 Up button 11 Rear cover
6 Left button 12 Probe






Application:



In liquid. The ultrasonic intensity (sound power) in the liquid sound field is a general main indicator of the ultrasonic system. It has a direct impact on the use effect and work efficiency of ultrasonic equipment.



Features:


1. Realize one-key automatic measurement, and automatically display sound intensity and waveform
2. With digital readout of sound intensity and frequency
3. Color LCD with LED backlight
4. Built-in 2300mah lithium battery pack, external AC power adapter
5. Automatic shutdown without signal within 10 minutes

Ultrasonic Cleaning LCD 10.0KHz Sound Frequency Tester 4Ultrasonic Cleaning LCD 10.0KHz Sound Frequency Tester 5Ultrasonic Cleaning LCD 10.0KHz Sound Frequency Tester 6

Ultrasonic Cleaning LCD 10.0KHz Sound Frequency Tester 7Ultrasonic Cleaning LCD 10.0KHz Sound Frequency Tester 8Ultrasonic Cleaning LCD 10.0KHz Sound Frequency Tester 9
