Product Details:
|
| Frequency Range: | 10 K~200KHZ | Measuring Range: | More Than 3 μm |
|---|---|---|---|
| Supply Power: | Built-in Power Supply (DC 3V) | Precision: | 2.5% |
| Type Of Indicator: | Digital | Test Direction: | Up Or Down |
| Warranty: | 1 Year | Certificate: | CE |
| High Light: | 200 khz ultrasonic amplitude,ultrasonic amplitude 200 khz,2.5% Precision ultrasonic amplitude |
||

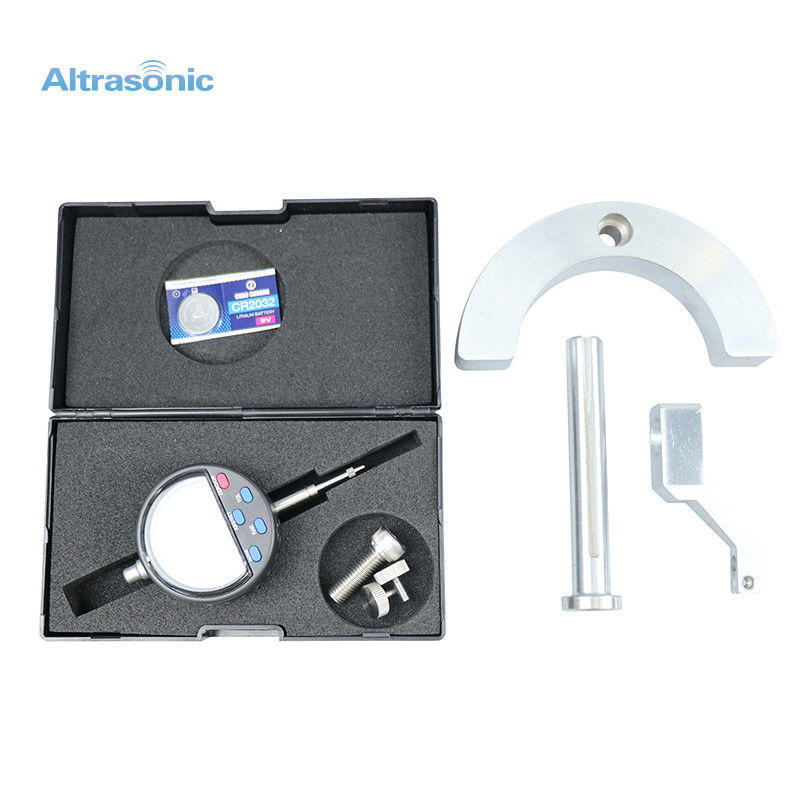

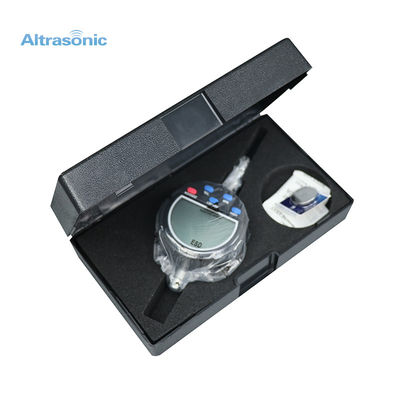

200 Khz Ultrasonic Amplitude For Testing Ultrasonic Products
Specifications:
| Model | HS-520V |
| Precision | 2.5% |
| Sensitivity | 1 μm |
| Measuring Range | More than 3 μm |
| Frequency Range | 10 KHz – 200 KHz |
| Supply Power | Built-in power supply (DC 3V) |
| Type of Indicator | Digital |
|
Test direction |
Up or down |
Description:
Consistent and correct amplitude is one of the most important factors in achieving a high-quality ultrasonic weld. The Amplitude Gauge makes measuring and setting that amplitude easy. Simply bring the gauge into contact with the ultrasonic horn, press the welder test button and read the total amplitude in microns on the dial.
Features:
Exquisite design: the device is small in size, only composed of the meter head and the bracket, without external power supply
Reasonable structure: suitable for measuring the output amplitude of various ultrasonic welding equipment
Simple operation: simple steps
