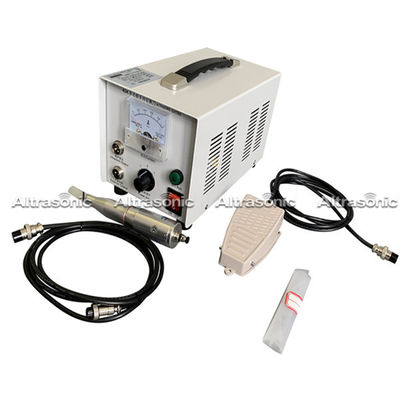

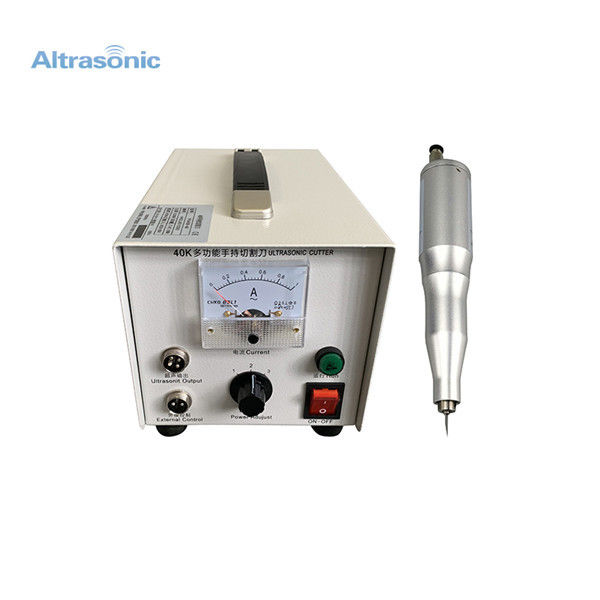

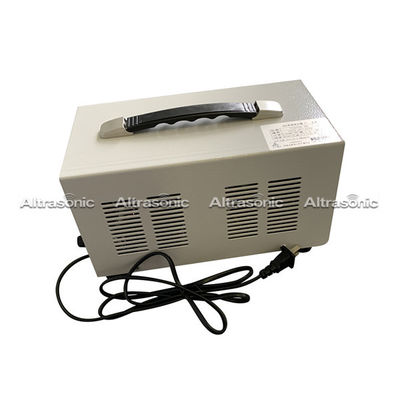

100w 40khz Ultrasonic Fabric Cutting Machine

100w 40khz Ultrasonic Fabric Cutting Machine
100w 40khz Ultrasonic Fabric Cutting Machine
100w 40khz Ultrasonic Fabric Cutting Machine 100w 40khz Ultrasonic Fabric Cutting Machine 100w 40khz Ultrasonic Fabric Cutting Machine 100w 40khz Ultrasonic Fabric Cutting Machine

Large Image :  100w 40khz Ultrasonic Fabric Cutting Machine

Product Details:
Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HS-C40
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Inner bubble wrap, then put in a carton box
Delivery Time: 8-10 workdays
Payment Terms: T/T, Western Union
Supply Ability: 5,000 units per month

100w 40khz Ultrasonic Fabric Cutting Machine

Description
Saw Blade Diameter: 5mm Knife: Replaceable
Frequency: 40khz Size Of Generator: 155 X 265 X 170mm
Outer Skin: Aluminum Type: Rubber Cutting Machine
Power: 100w Length Of Cable:: 3M
High Light:

40khz ultrasonic fabric cutting machine

,

100w ultrasonic fabric cutting machine

,

40khz ultrasonic fabric cutter

40Khz ultrasonic fabric cutting machine

Specification:

Model HS-C40
Frequency 40KHZ
Output Power 100W
Generator Analog generator, 155 x 265 x 170mm
Handle Φ32×170
Size of cutter Blade replaceable
Length of cable 3M
Outer skin Aluminum
Weight 8KG
Voltage 220V / 110V
Accessory Foot switch1pc;Cut blade 25pcs;1.5mm special hex wrench 1pc;
Screw M3×4L 2pcs
Material of cutter

titanium alloy, stainless steel







Introduction:

The speed at which the ultrasonic cutting knife enters and advances through the material to be cut is also a process variable and should be adjusted for each cutting process. Sometimes it is necessary to slowly penetrate the shell of the product to avoid deformation, and then increase the speed of the cutter in the product to achieve the best cutting effect.



Application:

Ultrasonic cutting knives have been widely used in textile and food industries in recent years. Ultrasonic cutting systems can accurately cut textiles, rubber, thermoplastic films, knitted and non-knitted materials, and various foods. These include both handheld devices and various systems integrated into automated machines. The advantages of ultrasonic vibration knives are: precise cutting, pressureless cutting (to avoid deformation of soft cut objects, such as cakes), edge cutting of specific materials, welding at the same time, fast cutting speed and significantly reducing cleaning costs.



Advantage:

1. Pressureless cutting to prevent deformation of the cut items
2. No heat is generated in the product-mold keeps low temperature
3. High cutting quality, each layer will not mix or break
4. Compared with the mechanical cutting machine, it greatly reduces the "plough" effect of the material
5. Cutting non-woven fabrics and textiles at the same time for edge sealing to avoid burrs
6. Rugged integrated tool head blade structure almost eliminates damage and energy loss
7. A large number of standard carbide cutting blades, suitable for applications of various shapes and sizes
8. Ultrasonic cutting is cleaner than traditional cutting machines, has the least debris, and will not adhere to the cut items
9. Ultrasonic cutting can save space and minimize outgassing, thereby improving cutting accuracy
10. Ultrasonic cutting tool head has replaceable carbide cutting blades, which can extend tool life







100w 40khz Ultrasonic Fabric Cutting Machine 0

100w 40khz Ultrasonic Fabric Cutting Machine 1

Transport and packaging:

100w 40khz Ultrasonic Fabric Cutting Machine 2
