Product Details:
|
| Saw Blade Diameter: | 5mm | Knife: | Replaceable |
|---|---|---|---|
| Frequency: | 40khz | Size Of Generator: | 155 X 265 X 170mm |
| Outer Skin: | Aluminum | Type: | Rubber Cutting Machine |
| Power: | 100w | Length Of Cable:: | 3M |
| High Light: | 40k ultrasonic power supply,5mm ultrasonic power supply,100w ultrasonic power supply |
||

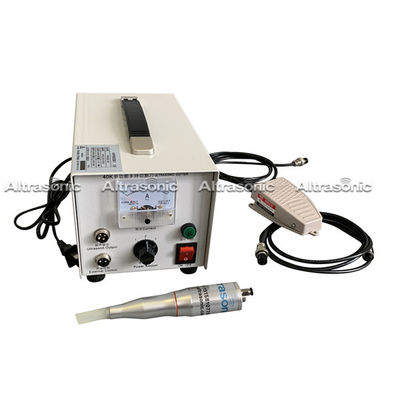

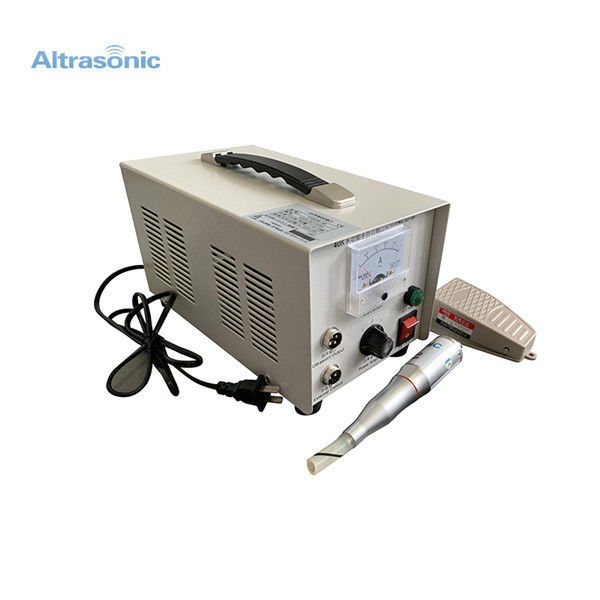

40k Ultrasonic Power Supply For Ultrasonic Sealing Cutting Machine
Specification:
| Model | HS-C40 |
| Frequency | 40KHZ |
| Output Power | 100W |
| Generator | Analog generator, 155 x 265 x 170mm |
| Handle | Φ32×170 |
| Size of cutter | Blade replaceable |
| Length of cable | 3M |
| Outer skin | Aluminum |
| Weight | 8KG |
| Voltage | 220V / 110V |
| Accessory | Foot switch1pc;Cut blade 25pcs;1.5mm special hex wrench 1pc; Screw M3×4L 2pcs |
| Material of cutter |
titanium alloy, stainless steel |
Introduction:
Traditional cutting uses a knife with a sharp edge to concentrate a very large pressure on the edge and press the material to be cut. When the pressure exceeds the shear strength of the material being cut, the molecular bonds of the material are pulled apart to achieve cutting. Because the material is pulled apart by strong pressure and rigidity, the cutting edge of the cutting tool must be very sharp, and the material itself has to withstand relatively large pressure. Therefore, it is not effective for soft and elastic cutting, and it is more difficult for viscous materials.
Advantage:
1. The cutter head is made of imported high-quality alloy steel, with high hardness and long life;
2. The cutter head is sharp, compact, and can be cut quickly;
3. Suitable for any occasion, safe, not hurting people, simple operation;
4. Suitable for cutting all kinds of non-woven fabrics, can cut any shape;
