Product Details:
|
| Frequency: | 40khz | Blade: | 82MM |
|---|---|---|---|
| Material: | Titanium | Power: | 500w |
| Weight (KG): | 10KG | Application: | Rubber/Plastic/Food |
| High Light: | 82mm ultrasonic rubber cutter,40khz ultrasonic rubber cutter,Titanium ultrasonic rubber cutter |
||

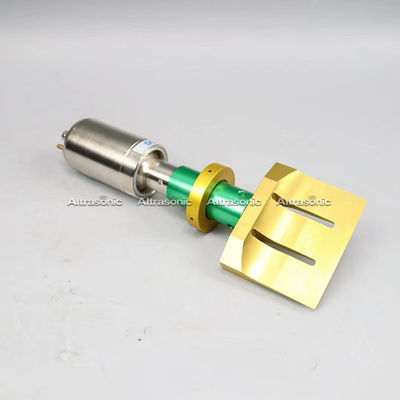

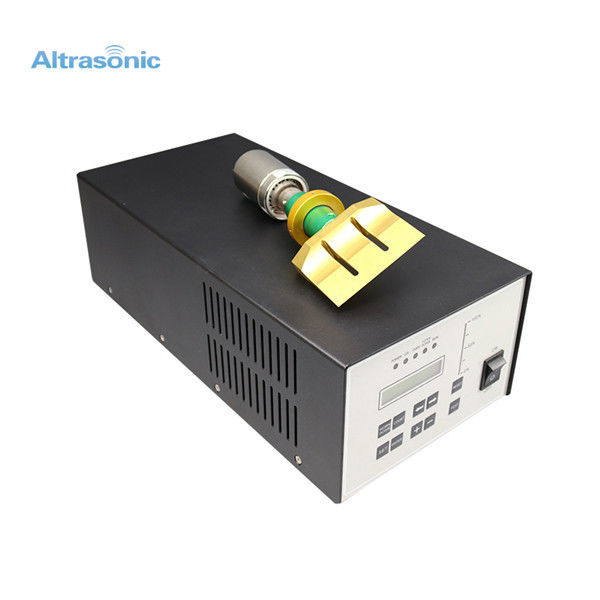

Titanium 82MM Ultrasonic Rubber Cutter Machine 40khz
Description:
The ultrasonic rubber cutting knife vibrates along its length with an amplitude of 10-70μm, repeating 40,000 times (40 kHz) per second (the vibration of the blade is microscopic, which is generally difficult to see with the naked eye). The cutting knife then transfers the received vibration energy to the cutting surface of the workpiece to be cut. In this area, the vibration energy is used to cut the rubber by activating the molecular energy of the rubber and opening the molecular chain.
Specificion:
| Frequency | 40Khz |
| Power | 500W 800W |
| Inupt | AC110-240V, 50/60Hz |
| Power Controller | stepping or continuous |
| Material of Cutting Head | aluminum alloy, stainless steel, titanium alloy, alloy steel. |
| Machine Wight | 4 kg-16KG |
| Accessories | foot switch, additional blade |
| Cooling Device | compressed air mouth can be installed. |
| Cable Length | 2M or customized |
| Foot Switch | available |
Advantages of ultrasonic cutting:
Advantages of ultrasonic tire rubber cutting
High cutting precision, no deformation of rubber
Good cut surface finish and good bonding performance
Easy to apply to automated production
Fast speed, high efficiency, no pollution
Applications:
1. Tire crown
2. Nylon
3. Steel ribbon plastic layer
4. Nylon cord;
5. Lined
6. Sidewall
7. Apex
8. Triangular circle
Detailed Image:
Tag:ultrasonic cutting machine,ultrasonic rubber cutting
