Product Details:
|
| Frequency: | 40khz | Blade: | 82MM |
|---|---|---|---|
| Material: | Titanium | Power: | 500w |
| Weight (KG): | 10KG | Application: | Rubber/Plastic/Food |
| High Light: | 0.5kw Ultrasonic Cutting Machine,Ultrasonic Cutting Machine 40khz,40khz Ultrasonic Rubber Cutting Machine |
||
Rubber 40khz 0.5kw Ultrasonic Cutting Machine
Specificion:
| Frequency | 40Khz |
| Power | 500W 800W |
| Inupt | AC110-240V, 50/60Hz |
| Power Controller | stepping or continuous |
| Material of Cutting Head | aluminum alloy, stainless steel, titanium alloy, alloy steel. |
| Machine Wight | 4 kg-16KG |
| Accessories | foot switch, additional blade |
| Cooling Device | compressed air mouth can be installed. |
| Cable Length | 2M or customized |
| Foot Switch | available |
Description:
raditional cutting uses a knife with a sharp edge to concentrate a very large pressure on the edge and press the material to be cut. When the pressure exceeds the shear strength of the material being cut, the molecular bonds of the material are pulled apart to achieve cutting. Because the material is pulled apart by strong pressure and rigidity, the cutting edge of the cutting tool must be very sharp, and the material itself has to withstand relatively large pressure. Therefore, the cutting effect is not good for soft and elastic materials, and it is more difficult for sticky materials.
Advantages:
Advantages of ultrasonic tire rubber cutting
High cutting precision, no deformation of rubber
Good cut surface finish and good bonding performance
Easy to apply to automated production
Fast speed, high efficiency, no pollution
Applications:
1. Tire crown
2. Nylon
3. Steel ribbon plastic layer
4. Nylon cord;
5. Lined
6. Sidewall
7. Apex
8. Triangular circle

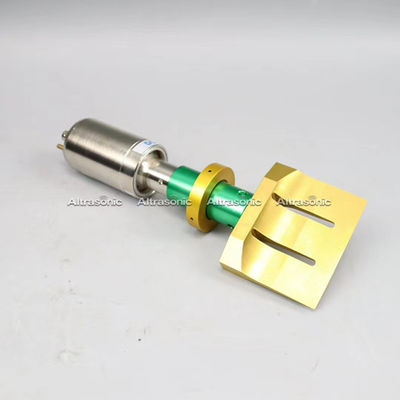

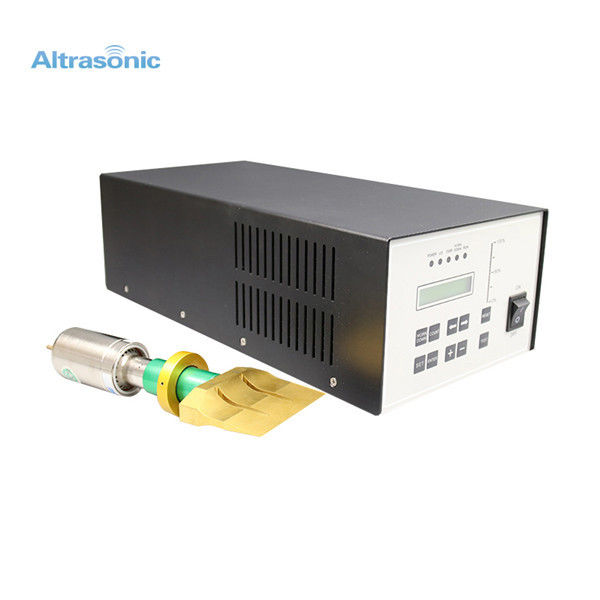

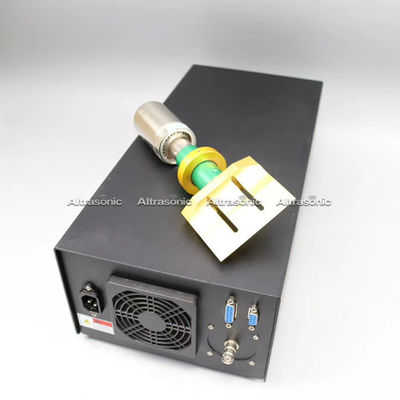

Detailed Image:
Tag:ultrasonic cutting machine,ultrasonic rubber cutting
