Product Details:
|
| Model: | HS-199I | Measuring Range(w/cm2): | 0.02-2.55 |
|---|---|---|---|
| Screen: | LCD | Power: | 110~250V,5V/1.5A |
| Resolution(w/cm2): | 0.01 | Measuring Frequency: | 10.0KHz-99.9KHz |
| High Light: | 10.0KHz Measuring Instrument,99.9KHz Measuring Instrument,99.9KHz Cleaning Measuring Instrument |
||

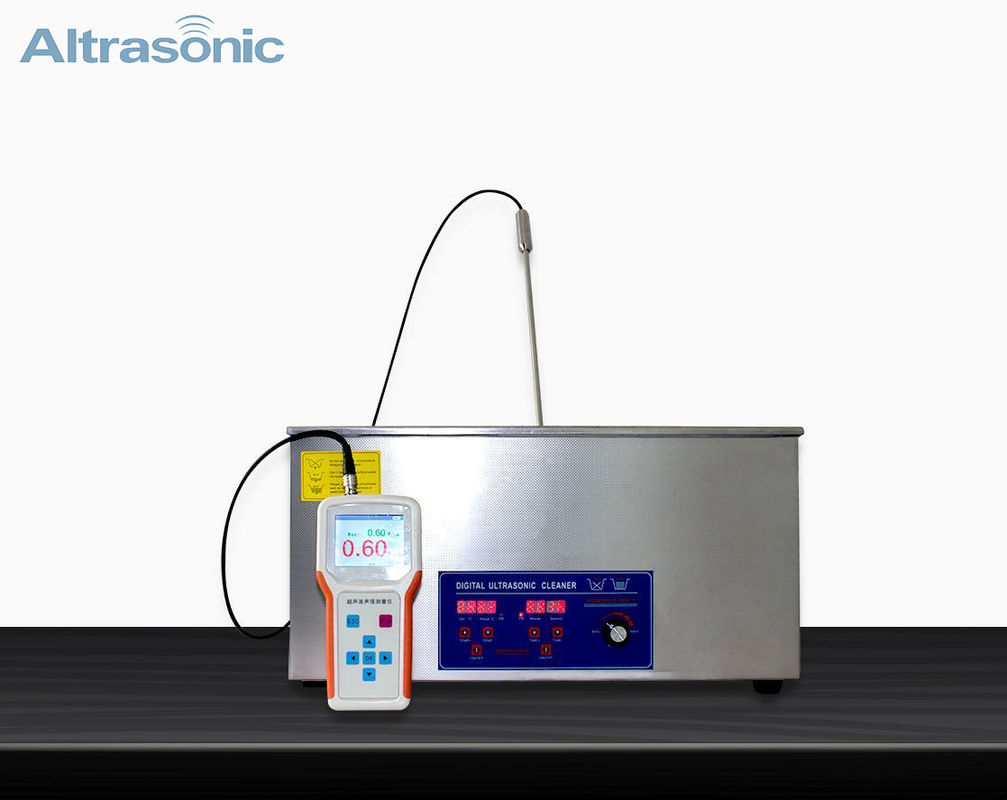

Ultrasonic Sound Intensity 10.0KHz Measuring Instrument For Cleaning
Description:
The sound intensity measuring instrument uses the positive piezoelectric characteristics of piezoelectric ceramics, namely the piezoelectric effect. When we are on piezoelectric ceramics.When a force is applied, it can convert the force into an electrical signal.

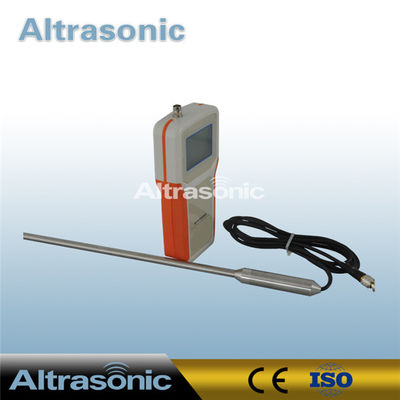

| No | Description | No | Description | No | Description |
| 1 | Instrument BNC connector | 7 | Right button | 13 | Stainless steel rod |
| 2 | LCD screen | 8 | Confirm button | 14 | Probe BNC connector |
| 3 | Back button | 9 | Down button | 15 | rechargeable battery |
| 4 | Power switch button | 10 | Communication Interface | 16 | charger |
| 5 | Up button | 11 | Rear cover | ||
| 6 | Left button | 12 | Probe |
|
Advantages:
1. Realize one-key automatic measurement, automatically display sound intensity and waveform
2. HS-200I series and above have digital readout sound intensity value and frequency
3.320×240 3.2 inch color LCD with LED backlight
4. Built-in 2300mAh lithium battery pack, external AC power adapter
5. Automatic shutdown without signal input within ten minutes
Detailed image:
