Product Details:
|
| Model: | HS-199I | Measuring Range(w/cm2): | 0.02-2.55 |
|---|---|---|---|
| Screen: | LCD | Power: | 110~250V,5V/1.5A |
| Resolution(w/cm2): | 0.01 | Measuring Frequency: | 10.0KHz-99.9KHz |
| High Light: | 99.9KHz Measuring Instrument,10.0KHz Measuring Instrument |
||

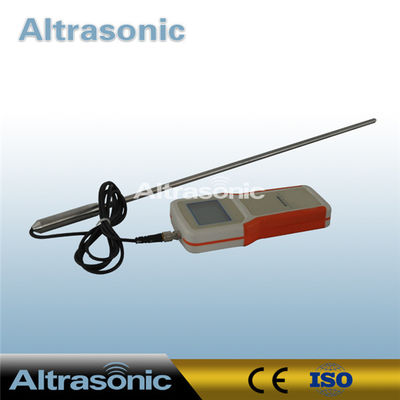

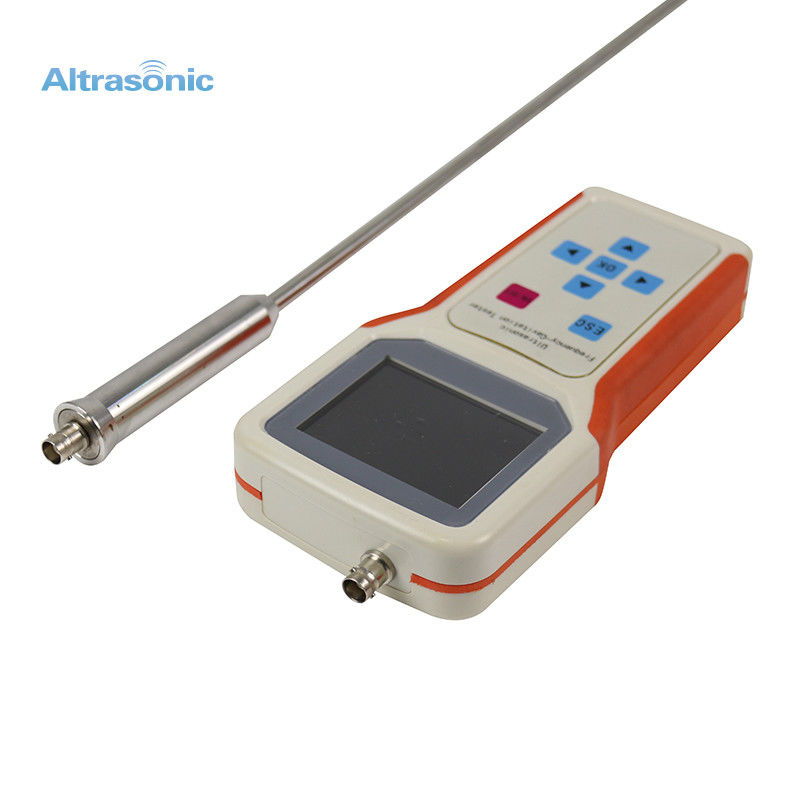

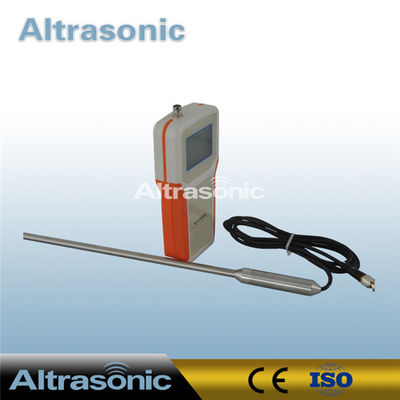

LCD Ultrasonic Sound Intensity 99.9KHz Measuring Instrument
Description:
The ultrasonic intensity (sound power) in the liquid sound field is one of the most important indicators of the ultrasonic system. It has a direct impact on the cleaning effect of the cleaning machine and the working efficiency of the ultrasonic treatment machine. The sound intensity measuring instrument can quickly and easily measure the sound field intensity anytime and anywhere, and give the sound power value intuitively.
Specification:
| Measuring range(w/cm2) | 0.02-2.55 |
| Resolution(w/cm2) | 0.01 |
| Measuring frequency | 10.0KHz-99.9KHz |
| Data Display | Instantaneous value, maximum value, instantaneous frequency, sound intensity curve, recorded value |
| Fluid temperature | 0℃-75℃ |
| Frequency display | available |
| Standby power consumption | 10-5W |
| Display method | 3.2 inch TFT(320*240) |
| Power supply | 3.7V*2 |
| Operation method | Membrane button |
| Probe material | Stainless steel sealing tube |
| Probe length | 0.5m stainless steel probe + 0.5m cable |
Advantages:
1. Realize one-key automatic measurement, automatically display sound intensity and waveform
2. HS-200I series and above have digital readout sound intensity value and frequency
3.320×240 3.2 inch color LCD with LED backlight
4. Built-in 2300mAh lithium battery pack, external AC power adapter
5. Automatic shutdown without signal input within ten minutes
Detailed image:
