Product Details:
|
| Frequency Range: | 10 K~200 KHZ | Measuring Range: | More Than 3μm |
|---|---|---|---|
| Supply Power: | Built-in Power Supply (DC3V) | Precision: | 2.5% |
| High Light: | 10khz ultrasonic amplitude,200khz ultrasonic amplitude,3μm ultrasonic amplitude |
||
DC3V 3μM 10khz - 200khz Ultrasonic Amplitude
Specifications:
| Model | HS0901B |
| Precision | 2.5% |
| Sensitivity | 1 μm |
| Measuring Range | More than 3 μm |
| Frequency Range | 10 KHz – 200 KHz |
| Supply Power | Built-in power supply (DC 3V) |
| Type of Indicator | Digital |
|
Test direction |
Up or down |
Description:
The amplitude of ultrasonic vibration directly represents the size of the ultrasonic output energy, and is also related to the strength of related materials and the service life of the whole machine.
Characteristic:
1.Digital and analog display
2.Absolute and relative measurement
3. Numerical preset actual position
4.Large display with all round
5.High-capacity volt lithium battery(3V)

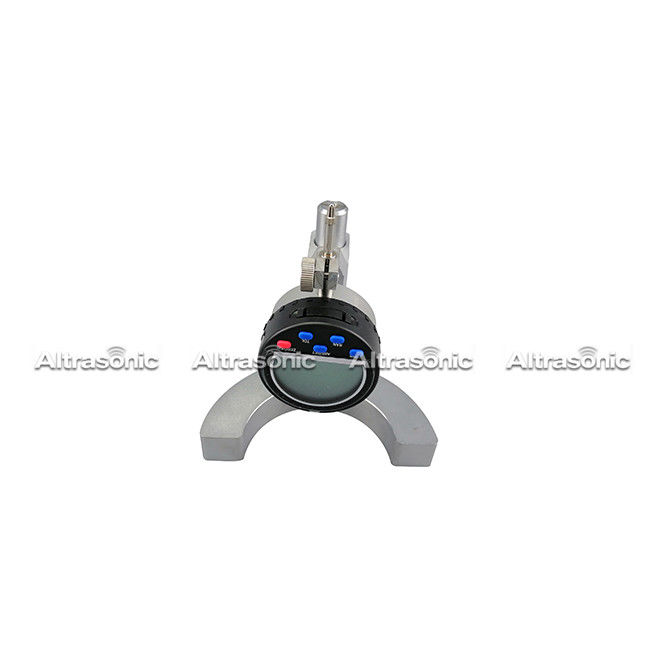

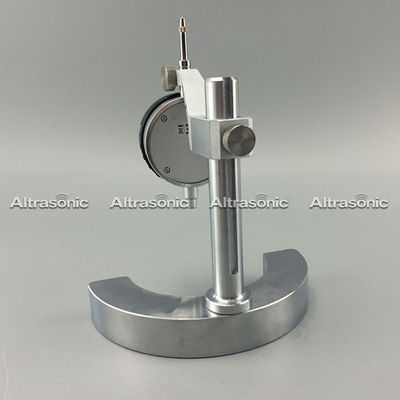

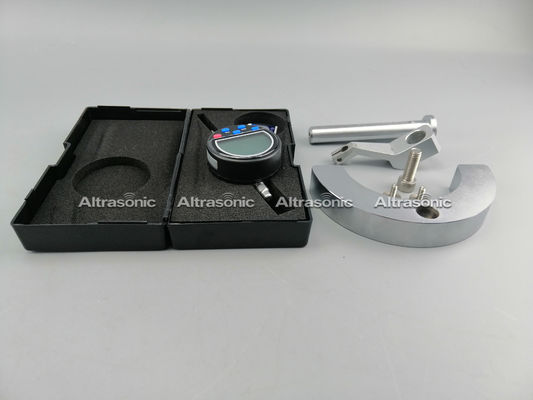

Detailed Image:
Transport and packaging:
Payment:
Contact Person: Hogo Lv
Tel: 0086-15158107730
Fax: 86-571-88635972
