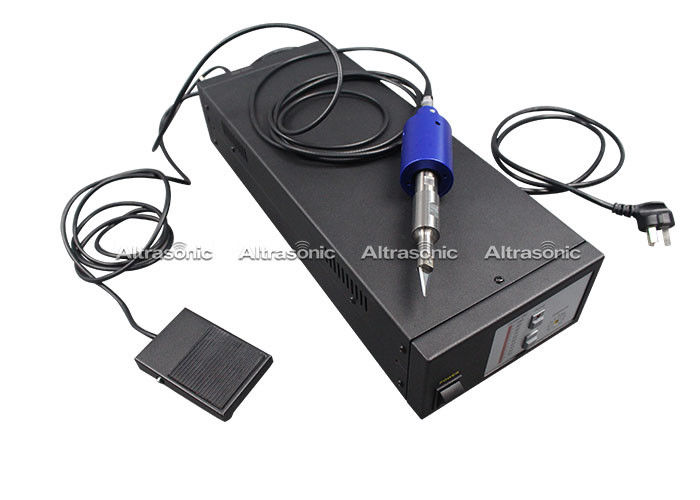

Black CE 30Khz Titanium Blade Ultrasonic Cutting Devices For Car Industry

30Khz Titanium Blade Ultrasonic Cutting Machine For Automotive Industry




Description:

Due to the characteristics of ultrasonic cutting, all fabrics finish with a superb edge seal, which most importantly prevents fraying. This is due to the intense heat that is rapidly concentrated on the cutting/sealing head. No other cutting/sealing methods can compare to this edge sealing ultrasonic cutting technology.

Ultrasonic cutters are designed to give the best edge seal on all fabrics without having to adjust the machine for different fabrics or thickness.

Ultrasonic Cutters are small in size and do not require large installation areas. Special equipment is not required for the installation. Ultrasonic Cutters are small enough to be hand-held for many operations.

Ultrasonic Cutters can also be attached to automated machinery arms. Although they may not be familiar to you, they play an active role in the manufacturing processes of various industrial products which we use daily.

A sharp cutting edge, which is difficult for water-jet or laser cutting, can be easily performed by our ultrasonic cutters.It leads to higher productivity and less downtime.


Specification:

Principle:

The ultrasonic cutting machine is composed of Ultrasonic transducer, ultrasonic booster, ultrasonic cutting knife and ultrasonic generator.

♦ Ultrasonic generator

It converted the high frequency high voltage AC current to the ultrasonic transducer. Ultrasonic transducers are equivalent to energy conversion devices that convert the input power into mechanical energy, ie, ultrasonic waves.

♦ Ultrasonic booster

It magnifies the output amplitude of the ultrasonic transducer.

♦ Ultrasonic cutting knife

Further amplify the amplitude, focusing ultrasound energy to the cutting part of the material. This cutting site is effected by the huge ultrasonic energy, and becomes softening, melting, strength greatly reduced instantly. So only need to impose a small force to achieve the purpose of cutting materials

The difference between traditional cutting and ultrasonic cutting

Ultrasonic cutting machine is the use of wave energy for cutting equipment, the main t feature is not to use the traditional edge.
The traditional cutting utilizes a tool with a sharp edge to press the cutting material. The pressure is concentrated at the edge of the blade, the pressure is very large, more than the shear strength of the cutting material , then the material is cut open. As the material is cut by a strong pressure, so the cutting tool edge should be very sharp and the material itself has to bear the relatively large pressure. Therefore the cutting effect for the soft, flexible material is not good, especially more difficult for sticky material.

Why choose us?

1.Oversea Service Team: We now have agents in India,Austrillia,Hongkong,Singapore,Taiwan,Malaysia,Germany,and other country still being discussing.

2.Innovation: Altrasonic R&D and marketing staffs to constantly explore new applications in the field of ultrasound, and the importance of team spirit of cooperation.

3.Half the Price, Double the value: Every product reach you have been test in our company three times,and with 72 hours continous working,to confirm it is well before you get it.

4.Good Components: Ceramic mainly importes from German,and using the superior quality aluminum,titanium raw materials.

5.Individual Customize: We can customize products according to your requirements.Also supply OEM service.

6.Free Test: We accept samples from customers,do free test for customer. Also welcome customer visit our company for experiment.

Shipping and payment:

Shipping: DHL,TNT,FEDEX,UPS Express etc.

Payment: Pay by T/T,Paypal,West Union, customers can choose which payments ways that you accept.
