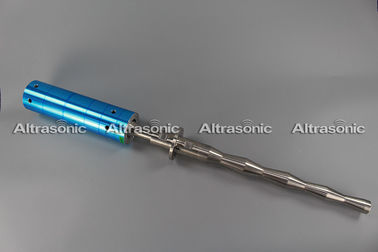

High Pressure High Power Ultrasonic Extraction System For Herbal Extraction

High Pressure High Power Ultrasonic Extraction System For Herbal Extraction
High Pressure High Power Ultrasonic Extraction System For Herbal Extraction High Pressure High Power Ultrasonic Extraction System For Herbal Extraction High Pressure High Power Ultrasonic Extraction System For Herbal Extraction High Pressure High Power Ultrasonic Extraction System For Herbal Extraction

Large Image :  High Pressure High Power Ultrasonic Extraction System For Herbal Extraction

Product Details:
Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HSS61B-ZB
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Wooden cases
Delivery Time: 20 working days after received your payment
Payment Terms: T/T
Supply Ability: 100pcs per month

High Pressure High Power Ultrasonic Extraction System For Herbal Extraction

Description
Frequency: 20Khz Power: 3000W
Weight: 40Kg Tip: Different Size Optional
Materials: Titanium Power Supply: Digital Mode
Power Adjust: Can Be Changed From 10% To 99% Amplitude: Can Be Changed From 10% To 99%
Tuning: Auto Tuning Capacity: ≥5000ml
High Light:

ultrasonic homogeniser

,

ultrasonic dispersion equipment

High Pressure High Power Ultrasonic Extraction System For Herbal Extraction







Specifications:



Model HSS11B-EB HSS17B-ZB HSS57B-ZB HSS59B-ZB HSS61B-ZB
Frequency 40±1 KHz 20±1 KHz 20±1 KHz 20±1 KHz 20±1 KHz
Power 100 W 500 W 1500 W 2000 W 3000 W
Voltage 220±10% V 220±10% V 220±10% V 220±10% V 220±10% V
Temperature 150 ℃ 150 ℃ 300 ℃ 300 ℃ 300 ℃
Pressure Normal Normal 35 MPa 35 MPa 35 MPa
Intensity of sound >10 W/cm² >10 W/cm² >30 W/cm² >40 W/cm² >60 W/cm²
Max Capacity > 100M L/Min > 2 L/Min > 15 L/Min > 20 L/Min > 100 L/Min
Material Of Tip Head Titanium Alloy Titanium Alloy Titanium Alloy Titanium Alloy
Titanium Alloy





Ultrasonic Description:

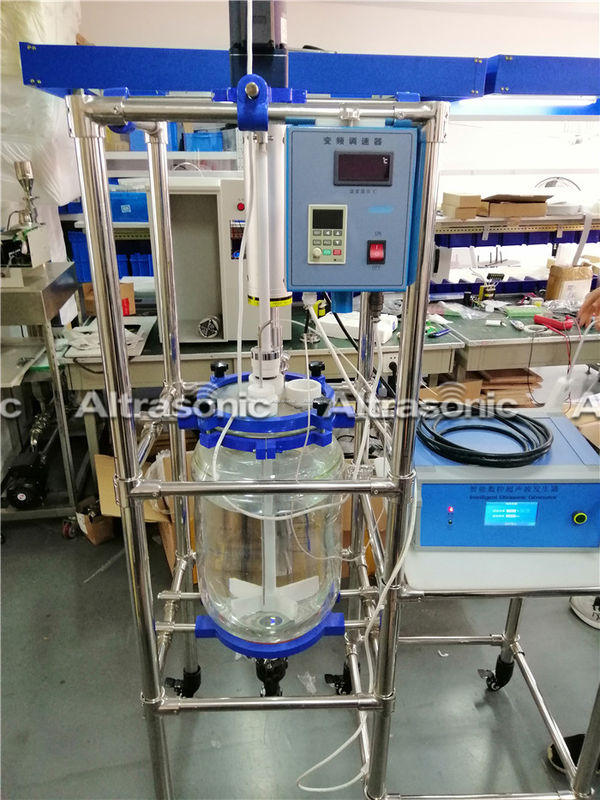

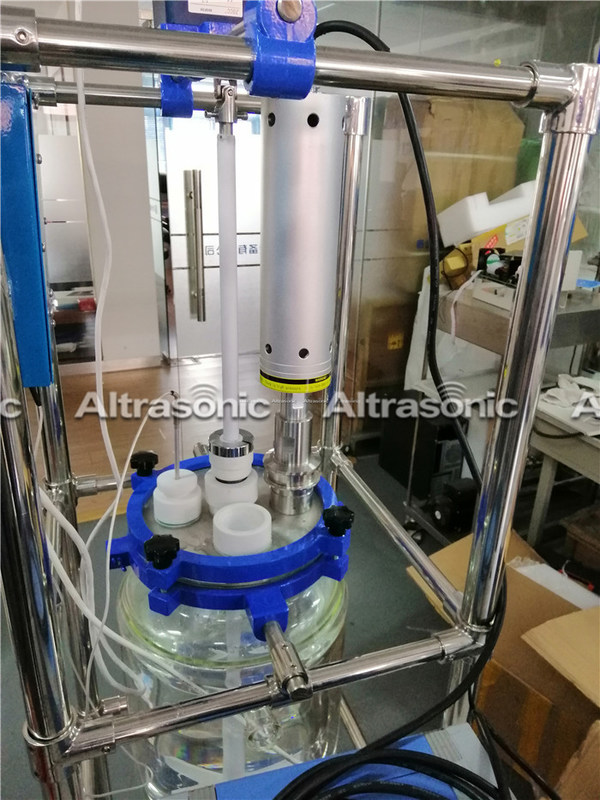

This item including big glass container, stirrer and compressor air inlet.

The principle of ultrasonic homogenizer is make the ultrasound radiate in liquid and powder mixing solution media, the liquid promptly flow produce a large number of tiny air bubbles, these tiny bubbles formed in the
negative pressure zone along the longitudinal ultrasonic radiation and grow continuously, and quickly closed in the positive pressure area.this effect is known as "cavitation" phenomenon, in this process,
closed bubbles can form thousands of instantaneous high pressure.







Competitive Advantage:

  • Custom System Designs and Consulting,
  • Active Ultrasonics provides consulting services and custom reactor designs,
  • High amplitude probe,
  • Unrestricted flow-through cylindrical systems,
  • High Power Probe Sonicator.






Applications:



  • Disruption of cells, bacteria and tissues,
  • Adjustment of ribosome,
  • Cutting of actinomycetes and fungal threads,
  • Acceleration of a chemical reaction,
  • Extraction of special components by disruption of tissue fragments,
  • Emulsification and dispersion in samples (a mixture of liquids such as water-oil, water-silver, etc.),
  • Insatiable Pursuit of High Grade Design for More Efficient Energy Conversion can achieve a high energy conversion efficiency which generates almost no heat. A unique circuit and a structure adopted in the design to minimize the power loss can control heat generation of the converter which may disturb the oscillation effect of ultrasonic waves and have adverse influence on the sample.







WHY CHOOSE ALTRASONIC ?



  • OVERSEA SERVICE TEAM. We now have agents in India, Austrilia, Hongkong, Singapore, Taiwan, Malaysia, Germany, and other country still being discussing.
  • Innovation. Altrasonic R&D and marketing staffs to constantly explore new applications in the field of ultrasound, and the importance of team spirit of cooperation.
  • Half the price, double the value. Every product reach you have been test in our company three times, and with 72 hours continous working, to confirm it is well before you get it. Also we always learn from foreign company, to upgrade our products.
  • Good components. Ceramic mainly imported from German, and using the superior quality aluminum, titanium raw materials.
  • Individual Customize. We can customize products according to your requirements, Also supply OEM service. Customize ultrasonic solution for different applications.







High Pressure High Power Superior Quality Ultrasonic Extraction System For Herbal Extraction
