Touch Screen Ultrasonic Measuring Devices For Ultrasonic Transducer Horn Analysis

Description
Part Name: Impedance Analyzer Frequency Range: 1KHz~500KHz
Frequency Accuracy: ±10 Ppm Amplification: Piezoelectric Ceramic, Ultrasonic Transducer, Power Ultrasonic
Net Weight: 3.5kg Dimensions: 240*190*100mm
Speed Of Measuring: 0.5s / One Pass
High Light:

measurement instruments

,

analyzer instrument

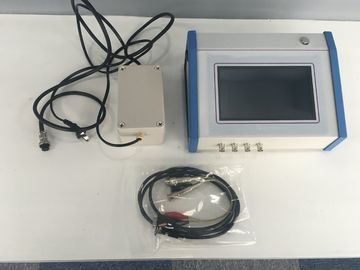

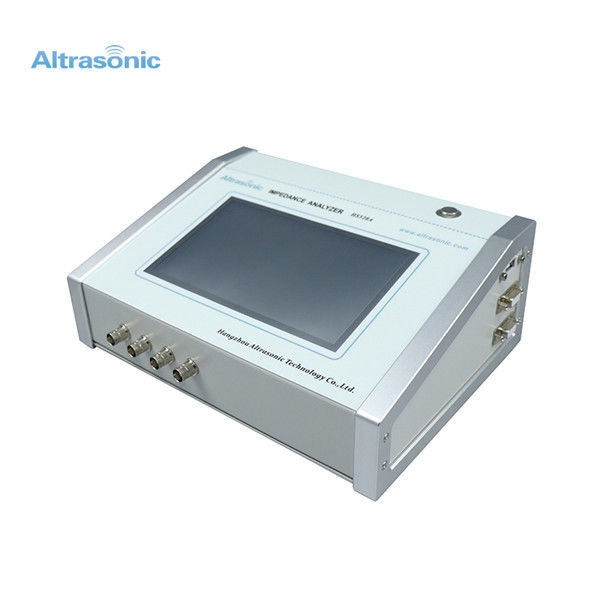

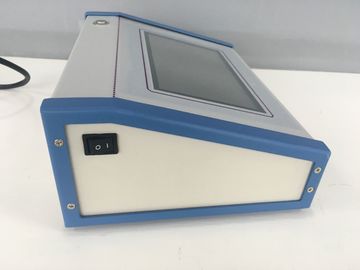

New Generation with Touch Screen Ultrasonic Measuring Instrument Device for Ultrasonic Transducer Horn Analysis







Description:



For ultrasonic components measuring instrument, the most important is the admittance chart, logarithmic graph of the two graphics (the two graphics is the main method of qualified qualified), and more than a dozen parameters: resonance frequency Fs, the maximum conductance Gmax, bandwidth F2-F1, anti-resonance frequency Fp, quality factor Qm, free capacitance CT, dynamic resistance R1, dynamic inductance L1, dynamic capacitance C1, static capacitance C0, effective electromechanical coupling coefficient Keff.



The Measuring instrument which can easily replace much more complex and more complicated, also many times more expensive instruments from Agilent/HP, as for instance: HP Impedance Gain-Phase Analyzer 4294A, Agilent E5100A, Network Analyzer, HP 3563A,Control System Analyzer etc. It is also very easy to use HS520A (by engineers or ordinary production workers).



HS520A is based on the HS70A and HS80A, a new generation of ultrasonic components analyzer.






Its characteristics are as follows:



1. Large screen, full-screen touching, making the HS520A both HS70A-P(computer version) operating experience, and no cumbersome with a sense of computer operation.

2. Relies on the new powerful ARM processor data processing capacity, HS520A measurement accuracy is much higher than HS70A-D (with display version), can achieve HS70A-P(computer version) level.

3. Full-screen touch operation is more user-friendly, no longer need HS70A-D(own display version) a large number of physical buttons, thus operating instruments becomes extremely simple, the production size smaller, lighter and more portable.

4. Connecting the computer to operate as HS70V-P. The software is fully compatible, the user are no longer familiar with software operation.

5.HS520A was taken into account the needs of automated production line operation in the development time, reserved the 232interface with PLC communication and IO communication interface (replay input and output)

6. HS520A operation is no longer based on Windows system, with long-term reliable operation capacity in the production line.







Specification:



Impedance Analyzer HS-520A Newest
Frequency Range 1KHz~500KHz
Basic Accuracy < 0.5%
Scan Speed 5 sec/one pass (equivalent to 600 scan dots)
Frequency Accuracy ±10 ppm
Phase Accuracy 0.15 degree
Temperature Range 10~40 degree Celsius
Impedance Range 0.1Ω~1MΩ
Frequency Step 0.1Hz to Any
Measure Items Resonance Frequency: Fs
Half Power Frequency: F1 and F2
Maximum real admittance at Fs: Gmax
Dynamic Resistance: R1
Anti resonance frequency: Fp
Mechanical quality factor: Qm
Free capacitance: CT
Dynamic inductance: L1
Dynamic capacitance: C1
Static capacitance: Co
electromechanical coupling coefficient: Keff and Kp
Maximum real impedance at Fp: Zmax
Measure Diagram G,B-F
G-B (admittance circle coordinate)
R,X-F
R-X (impedance circle coordinate)
Z,phase-F
Y,phase-F
Z(Logarithm),phase-F
Amplification

piezoelectric ceramic, ultrasonic transducer, power ultrasonic,

ultrasonic weld, ultrasonic clean, ultrasonic sensor

Dimensions : 240mm*190mm*100mm

Size of LCD Screen: 8-inch screen







Applications:



Piezoelectric ceramics, transducers, ultrasonic cleaning machines, ultrasonic plastic welding machine, underwater acoustic, magnetostrictive materials, ultrasonic grinder, ultrasonic atomization , reversing radar, ultrasonic ranging, phacoemulsification , ultrasonic motors, and all other devices used in piezoelectric and ultrasound.
