Digital Generator Ultrasonic Transducer Impedance And Frequency Measuring Device

China Digital Generator Ultrasonic Transducer Impedance And Frequency Measuring Device supplier
Digital Generator Ultrasonic Transducer Impedance And Frequency Measuring Device supplier Digital Generator Ultrasonic Transducer Impedance And Frequency Measuring Device supplier Digital Generator Ultrasonic Transducer Impedance And Frequency Measuring Device supplier

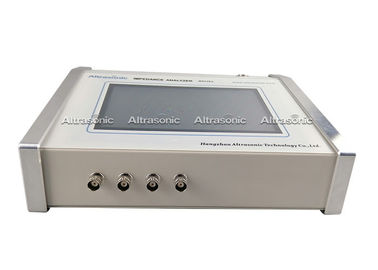

Large Image :  Digital Generator Ultrasonic Transducer Impedance And Frequency Measuring Device

Product Details:

Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HS520A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 10 work days
Payment Terms: T/T, Western Union
Supply Ability: 200 Set per month
Contact Now
Detailed Product Description
Generator: Digital Frequency Range: 1KHz~500MHz/1Mhz/3Mhz
Measurement Speed: 5s/one Pass(600scan Point) Adjustable Frequency Accuracy: ±10ppm
Phase Resolution: 0.15 Degree Impedance Range: 1Ω~1MΩ
Power Supply: AC100V~AC250V,50~60Hz, 30W Application: Ultrasonic Components/ultrasonic Device



Ultrasonic Transducer Impedance and Frequency Measuring Device



Description:

Ultrasonic Analyzer HS520A is jointly developed by the Automation department of China Tsinghua University and the Chinese Academy of Sciences. It was widely used in the detection of piezoelectric ultrasonic devices and equipment of integrated solutions.



HS520A, Comparing with HS70A-P (computer) and HS70A-D (on board display version), it is a new generation of ultrasonic components analyzer which based on the combination of the advantages of the previous devices.







Specification:



Specification
Performance
HS520A
Product feature Portable, 8inch screen, Full touch screen
Dimension L24cm,W19cm,H10cm
Frequency range 1KHz~500MHz/1Mhz/3Mhz
Measurement Index All the parameters, the graph
Measurement Accuracy < 0.5%
Measurement Speed 5s/one pass(600scan point) Adjustable
Frequency Accuracy ±10ppm
Phase Resolution 0.15 degree
Environment Temperature 10~40degree centigrade
Impedance Range 1Ω~1MΩ
Frequency Step 0.1Hz~any
Power Supply AC100V~AC250V,50~60Hz, 30W





Advantages and benefits:





• Practicality and ease of use. No need for ultrasonic expertise.

• Allows the quality control of ultrasonic transducers reducing technical assistance.

• Makes fast and accurate manufacturing of sonotrodes possible.

• Affordable cost.

• Reduces ultrasonic equipment maintenance costs because it allows preventive maintenance.

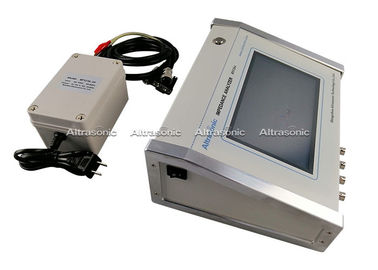

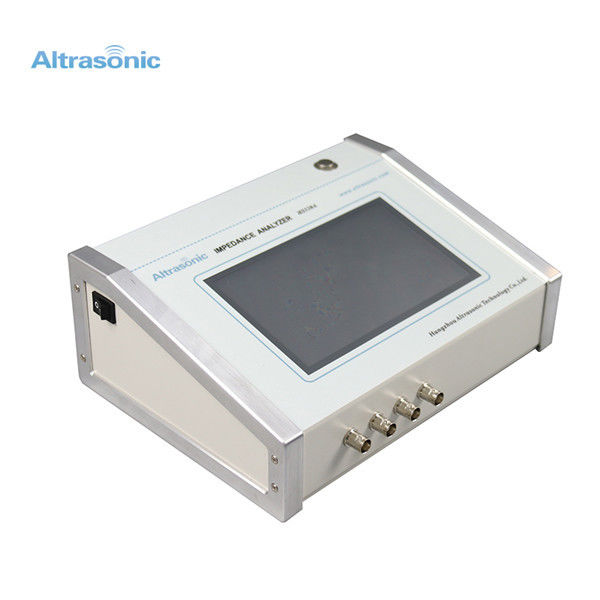

Detailed Images:

Digital Generator Ultrasonic Transducer Impedance And Frequency Measuring DeviceDigital Generator Ultrasonic Transducer Impedance And Frequency Measuring Device
