Impedance Analyzer Measuring Instrument 1Khz - 5Mhz With Full Screen

Impedance Analyzer Measuring Instrument 1Khz - 5Mhz With Full Screen
Impedance Analyzer Measuring Instrument 1Khz - 5Mhz With Full Screen Impedance Analyzer Measuring Instrument 1Khz - 5Mhz With Full Screen Impedance Analyzer Measuring Instrument 1Khz - 5Mhz With Full Screen

Large Image :  Impedance Analyzer Measuring Instrument 1Khz - 5Mhz With Full Screen

Product Details:
Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HS-520A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 10 work days
Payment Terms: T/T, Western Union
Supply Ability: 200 Set per month

Impedance Analyzer Measuring Instrument 1Khz - 5Mhz With Full Screen

Description
Generator: Digital Frequency Range: 1KHz~500kHz/1Mhz/3Mhz
Measurement Speed: 5s/one Pass(600scan Point) Adjustable Frequency Accuracy: ±10ppm
Phase Resolution: 0.15 Degree Impedance Range: 1Ω~1MΩ
Power Supply: AC100V~AC250V,50~60Hz, 30W Application: Ultrasonic Components/ultrasonic Device
High Light:

measurement instruments

,

analyzer instrument

Impedance Analyzer Measuring Instrument 1Khz - 5Mhz With Full Screen



Description:







The Ultrasonic Impedance Analyzer HS520A series of products are used for comprehensive solutions for the detection of piezoelectric ultrasonic devices and equipment. HS520A is a new generation of ultrasonic component analyzer developed on the basis of HS70A-P (computer version) and HS70A-D (self-contained display version), combining the advantages of the former two.







Specification:



Part Name: Horn Analyzer Frequency Range: 1Khz-3Mhz
Basic Accuracy <0.5% Scan Speed 5 sec/one pass (equivalent to 600 scan dots)
Frequency Accuracy: ±10 ppm Amplification: Piezoelectric Ceramic, Ultrasonic Transducer, Power Ultrasonic
Phase Accuracy 0.15 degree Temperature Range 10~40 degree Celsius
Impedance Range 0.1Ω~1MΩ Frequency Step 0.1Hz to Any
Speed Of Measuring: 5s / One Pass(600san point) Power Supply AC100V~AC250V,50~60Hz,30W
Net Weight: 3.5kg Dimensions:

240*190*100mm





Specification
Performance
HS520A
Product feature Portable, 8inch screen, Full touch screen
Dimension L24cm,W19cm,H10cm
Frequency range 1KHz~500kHz/1Mhz/3Mhz
Measurement Index All the parameters, the graph
Measurement Accuracy < 0.5%
Measurement Speed 5s/one pass(600scan point) Adjustable
Frequency Accuracy ±10ppm
Phase Resolution 0.15 degree
Environment Temperature 10~40degree centigrade
Impedance Range 1Ω~1MΩ
Frequency Step 0.1Hz~any
Power Supply AC100V~AC250V,50~60Hz, 30W



Advantages:


● Easy to use, accurate and inexpensive, measurement accurace is extremely high
● Judging product defects by admittance circle and logarithmic curve at a glance
● Test data can be stored and printed on the computer, and the data can be traced back to the source.
● Printable impedance scan curve graphics for easy sample analysis and archiving
● One-click start test function, easy to operate, high production efficiency

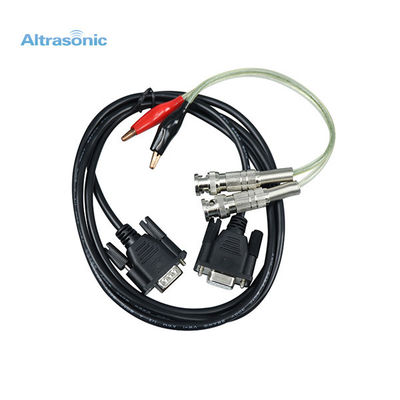

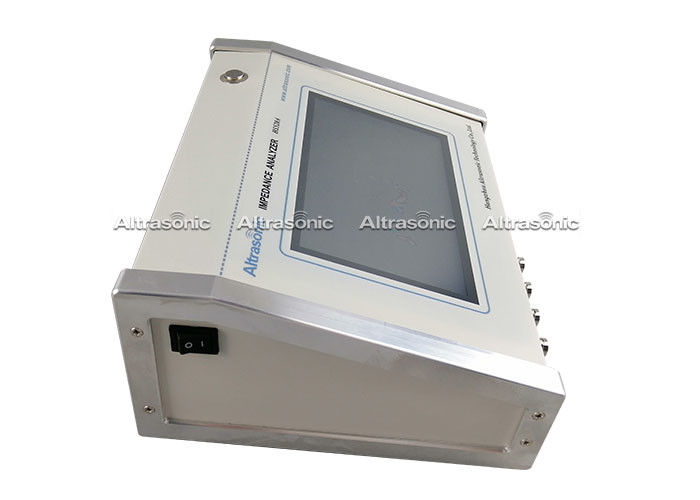

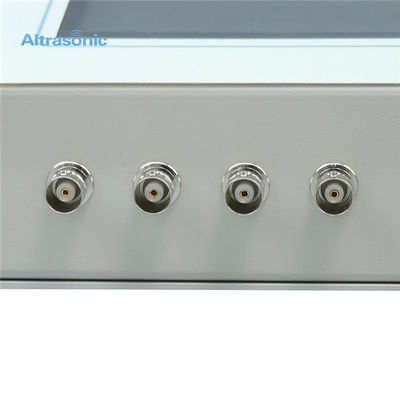

Detailed Images:











Impedance Analyzer Measuring Instrument 1Khz - 5Mhz With Full Screen 0
