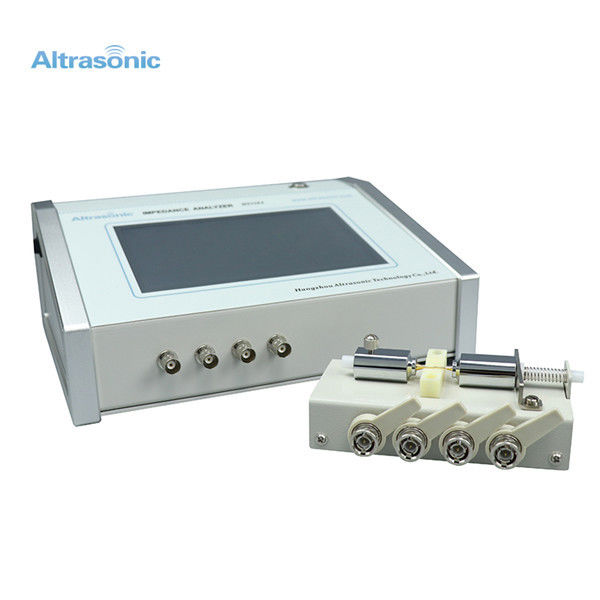

HS520A Ultrasonic Horn Analyzer Frequency Measuring Device High Accuracy

HS520A Ultrasonic Horn Analyzer Frequency Measuring Device High Accuracy
HS520A Ultrasonic Horn Analyzer Frequency Measuring Device High Accuracy HS520A Ultrasonic Horn Analyzer Frequency Measuring Device High Accuracy HS520A Ultrasonic Horn Analyzer Frequency Measuring Device High Accuracy HS520A Ultrasonic Horn Analyzer Frequency Measuring Device High Accuracy HS520A Ultrasonic Horn Analyzer Frequency Measuring Device High Accuracy

Large Image :  HS520A Ultrasonic Horn Analyzer Frequency Measuring Device High Accuracy

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Model Number: HS-520A
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Packaging Details: Packed in a carton or wooden box
Payment Terms: T/T, Western Union,paypal

HS520A Ultrasonic Horn Analyzer Frequency Measuring Device High Accuracy

Description
Product Name:: Ultrasonic Horn Analyzer Frequency Range:: 1KHz~500KHz
Basic Accuracy: <0.5% Frequency Accuracy: ±10 Ppm
Phase Accuracy: 0.15 Degree Impedance Range: 0.1Ω~1MΩ
High Light:

measurement instruments

,

analyzer instrument



Ultrasonic Horn Analyzer Frequency Measuring Instrument Device





Description:



Ultrasonic transducer tester consists of hardware and software. Products can be measured and evaluated ultrasonic tool head (ultrasonic mold), piezoelectric ceramic, piezoelectric transducer, ultrasonic cleaner, ultrasonic welding machine, ultrasonic crusher, ultrasonic processing equipment and other devices, parameters, quality and comprehensive performance.





HS520A Ultrasonic Horn Analyzer Frequency Measuring Device High Accuracy 0

Specification:



Impedance Analyzer HS520A Newest
Measure Items Resonance Frequency: Fs
Half Power Frequency: F1 and F2
Maximum real admittance at Fs: Gmax
Dynamic Resistance: R1
Anti resonance frequency: Fp
Mechanical quality factor: Qm
Free capacitance: CT
Dynamic inductance: L1
Dynamic capacitance: C1
Static capacitance: Co
electromechanical coupling coefficient: Keff and Kp
Maximum real impedance at Fp: Zmax
Measure Diagram G,B-F
G-B (admittance circle coordinate)
R,X-F
R-X (impedance circle coordinate)
Z,phase-F
Y,phase-F
Z(Logarithm),phase-F

Dimensions : 240mm*190mm*100mm

Size of LCD Screen: 8-inch screen



HS520A Ultrasonic Horn Analyzer Frequency Measuring Device High Accuracy 1

The application of impedance curves and admittance circles in the processing and production of ultrasonic devices is as follows:



1. Ultrasonic transducer: The admittance circle can not appear parasitic circle, the resonant frequency is as close as possible to the design frequency, the dynamic impedance is low, the quality factor Qm should be close to the design requirements, and the capacitance should match the circuit.

2. Piezoelectric ceramic sheet: The advantages and disadvantages of the device can be judged directly from the admittance circle diagram and the logarithmic coordinates. If there is delamination inside the ceramic sheet or crack occurs, the logarithmic curve will appear multi-peak. Multiple parasitic small circles appear on the admittance chart.

3. Ultrasonic horn and mold: Whether the design, processing and assembly are reasonable or defective, can be clearly seen directly from the admittance chart.

4. Ultrasonic welding machine: During production and processing, the state of the welding machine is analyzed by the results of the admittance circle, and the problems of the welding machine are found through parameters and graphical analysis.

5. Ultrasonic cleaning machine: When producing and processing, the choice of vibrator requires the vibration performance to be as consistent as possible (bandwidth, quality factor, resonant frequency, dynamic impedance). On the admittance chart, there are as few parasitic circles as possible or no parasitic circles near the resonance point. Through the admittance diagram, the transducer can be manufactured, incoming inspection, bonded transducer, and cleaning machine for impedance analysis and measurement. The whole machine measurement of the cleaning machine can calibrate the static capacitance of the resonant frequency of the machine to match the power supply, and can analyze its new resonance point, the impedance after water injection, the capacitance and the vibration mode of the whole machine.



Factory workshop:



HS520A Ultrasonic Horn Analyzer Frequency Measuring Device High Accuracy 2
