70kHZ Ultrasonic Contactless / Noncontact Card Inlay Equipment

China 70kHZ Ultrasonic Contactless / Noncontact Card Inlay Equipment supplier
70kHZ Ultrasonic Contactless / Noncontact Card Inlay Equipment supplier 70kHZ Ultrasonic Contactless / Noncontact Card Inlay Equipment supplier 70kHZ Ultrasonic Contactless / Noncontact Card Inlay Equipment supplier

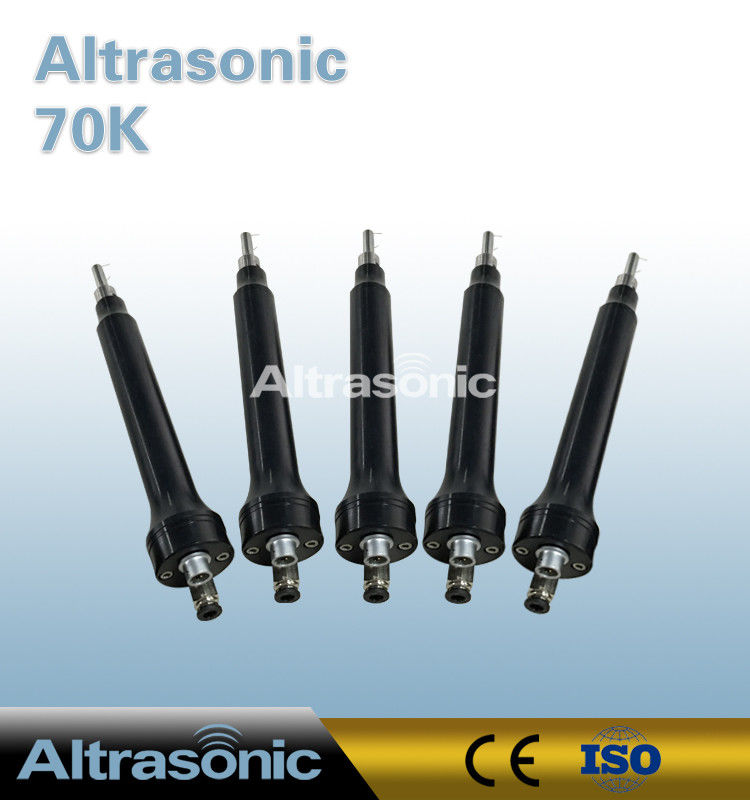

Large Image :  70kHZ Ultrasonic Contactless / Noncontact Card Inlay Equipment

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSD77B-NB

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotion
Packaging Details: Wooden case
Delivery Time: 7 working days
Payment Terms: T/T, Western Union
Supply Ability: 5000 Set per month
Contact Now
Detailed Product Description
Frequency: 70khz Max. Output Power: Less Than 100watt
Application: Embeding Copper Wire On The Plastic Card Frequency Tuning Method: Frequency Tuning Method
Components: Ultrasonic Transducer, Generator And Embedding Horn Power Adjusting Method: 20-100%
Net Weight: 10kg Power Supply: Digital Mode

70kHZ Ultrasonic Contactless / Noncontact Card Inlay Equipment





Specifications:



Components and Parts

Ultrasonic analog generator

Booster

Converter

Embedding / welding horn

Protective Sleeve (Nylon and Aluminum optional)

HF Cable

Power cord





The 70 Khz Card Implanting Welder Principle:



High Speed wire embedding with multiple embedding heads. Using the latest in linear servo technology and ultrasonic embedding units coupled together with vision cameras the wire embedding system is unrivalled in its speed, accuracy and the quality of antennae that it produces. Capable of working with a range of materials and wire diameters and an easy to use interface making solid wire antennas was never so easy.



Different Applications:



Ultrasonic smart-card welding machine, high-speed production specifically for contactless smart card, double circles cards, bank cards, and is a key component to improve production efficiency, mainly applies to:

(1)Smart-card metal wire, chip implants, it means welding the wires and  chips on the thin plastic plate.

(2)Smart Card PVC welding between thin cardboard.

(3)Spot welding of thin plastic, etc.



Main advantages:

  • Welding spot firm, prevent overheating and keep cold
  • Matching the NC power supply, a key scan frequency, stable and reliable
  • Automatic searching frequency, eliminating the tedious tuning process; same size welding spot, consistency.
  • Eliminating the need for pre-welded solder dip process, can hire less one operations staff.
  • Its welding is faster than iron.
  • Accept separately using, and also accept multi units run at same time, high welding speed.
  • Steel welding head, hardness of 60 degrees, a substantial increase in service life and reduce costs.
  • 70 KHz ultrasonic unit, speed welding, low production costs.

70kHZ Ultrasonic Contactless / Noncontact Card Inlay Equipment



70kHZ Ultrasonic Contactless / Noncontact Card Inlay Equipment





70kHZ Ultrasonic Contactless / Noncontact Card Inlay Equipment
