|Production Name:||Ultrasonic Plastic Welding Machine||Frequency:||20Khz|
|Line Source:||220V 10A||Dimension(mm):||420 X 630 X 920|
|Output Power:||2,000W||Welding Capability:||130 M/m φ|
|Net Weight:||100 Kg||Appalication:||Household Appliances；Electronic Appliances；Stationery Toy|

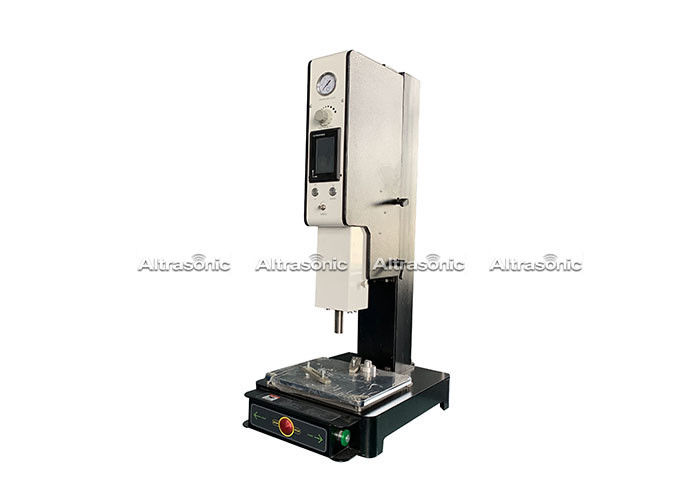

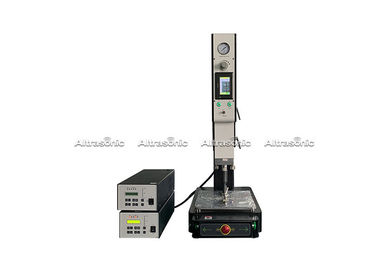

Semi-crystalline ultrasonic welding machinie for respirators
Ultrasonic welding equipment can be easily customized to fit the exact specifications of the parts being welded. The parts are sandwiched between a fixed shaped nest (anvil) and a sonotrode (horn) connected to a transducer, and a ~20 kHz low-amplitude acoustic vibration is emitted. (Note: Common frequencies used in ultrasonic welding of thermoplastics are 15 kHz, 20 kHz, 30 kHz, 35 kHz, 40 kHz and 70 kHz). When welding plastics, the interface of the two parts is specially designed to concentrate the melting process. One of the materials usually has a spiked energy director which contacts the second plastic part. The ultrasonic energy melts the point contact between the parts, creating a joint. This process is a good automated alternative to glue, screws or snap-fit designs. It is typically used with small parts (e.g. cell phones, consumer electronics, disposable
medical tools, toys, etc.) but it can be used on parts as large as a small automotive instrument cluster.
|Welding Capability||130 m/m φ||160 ~ 200 m/m φ||160 ~ 200 m/m φ||160 ~ 200 m/m φ|
|Dimension(mm)||420 x 630 x 920||420 x 630 x 920||420 x 630 x 920||420 x 630 x 920|
|Net Weight||100 kg||110 kg||110 kg||110 kg|
|Line Source||220V 10A||220V 10A / 220V 15A||220V 10A / 220V 15A||220V 10A / 220V 18A|
♦ Toy industry: such as toy gun, water gun, telephone and rag baby etc.
♦ Electronic industry: The gum case of watch, nylon watch band, calculator, sound box wraps hull, cell phone battery etc.
♦ Car industry: Car light.
♦ Pack an industry: Disguise box, PVC packing box, toothpaste tube etc.
♦ General business ware: The typewriter color take, video cassette rack, tape box, computer disk etc.
