Standard Type Ultrasonic Welding Machine With High Rigidity Structure And Latest Control

China Standard Type Ultrasonic Welding Machine With High Rigidity Structure And Latest Control supplier
Standard Type Ultrasonic Welding Machine With High Rigidity Structure And Latest Control supplier Standard Type Ultrasonic Welding Machine With High Rigidity Structure And Latest Control supplier

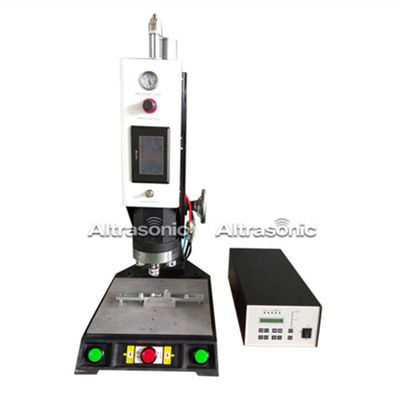

Large Image :  Standard Type Ultrasonic Welding Machine With High Rigidity Structure And Latest Control

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS- W Series

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Please contact us
Packaging Details: Wooden case
Supply Ability: 5000 units per month
Contact Now
Detailed Product Description
Frequency: 20, 30, 35 KHz Output: 1000W, 2000W, 4000W
Voltage: 110VAC Or 220-240VAC Environment Temperature: 5-50 ℃
Maximum Pressure: 1.96 KN Cycle Rate: 80/Min



Standard type ultrasonic welding machine with high rigidity structure and latest control







Description:

This BRAND NEW type of Ultrasonic Welding Machine was reserched and developed for more than 2 years by our company. it adopts high performance tamper-proof microprocessor, realizing the electronic control, welding manage all control parameters by microcomputer, frequency control system, intelligent discharge the inconvenience of manual FM, sonic overload automatic detection, when the real track best resonance point, vibration group keep in low temperature, welding head temperature increase while the frequency will change accordingly, the machine automatically adjustment make it running more stable.







Features

- Stable ultrasonic oscillation by automatic frequency tracking while maintaining constant amplitude

· Structures with high rigidity ensure stable welding even at high pressures.

· It is possible to correspond to work of various sizes by the head adjustment mechanism.

· 100 kinds of condition settings can be saved

· Various data output via USB interface



Weld control (mode selection type)

· Time control: Set welding time.



· Energy control:

The welding that reaches the set welding energy is terminated.



· Distance control:

When reaching the set position (absolute value or relative value), welding is terminated.







Setting welding conditions (all parameters are digitally set by the control panel)

Digital pressure setting: Accurate pressure control by proportional valve



Four types of welding conditions: Time, energy, absolute size, relative size



Four types of welding conditions can also select monitoring functions



Amplitude setting 50 ~ 100%







Applications:

It can be applied to all industrial applications such as welding, cutting, caulking, stamping, embossing of thermoplastic resin.







Specification:



Item No HS-W35A
Frequency 35Khz
Output 1000W
Voltage 110VAC or 220-240VAC
Electric Current 6A
Range of Welding Time 0.05-10/sec
Environment Temperature 5-50℃
Pneumatic Requirement Clean, dry air at 100pis
Maximum Pressure 1.96KN
Maximum Stroke 75MM
Cycle Rate 80/Min
Weight 90Kgs
Dimension of press (mm) 300(L)*490(W)*1055(H)
Dimension of generator (mm) 280(L)*400(W)*120(H)
Working Mode

Time / Energy / Power/

Absolute depth / Relative depth / Pressure

Frequency available in 20, 30, 35 and 40 kHz







Our Services:

1. Help customer analyze product project and provide welding solution.

2. Freely sample welding test.

3. Provide professional welding solution.

4. Skilled design services.

5. Provide shipping/delivery information checking service.

6. One year guarantee, all life maintain promise.

7. 24 hours feedback speed by email of others.
