High Precision Ultrasonic Amplitude Measuring Instrument Built In DC 3V Power Supply

China High Precision Ultrasonic Amplitude Measuring Instrument Built In DC 3V Power Supply supplier
High Precision Ultrasonic Amplitude Measuring Instrument Built In DC 3V Power Supply supplier High Precision Ultrasonic Amplitude Measuring Instrument Built In DC 3V Power Supply supplier High Precision Ultrasonic Amplitude Measuring Instrument Built In DC 3V Power Supply supplier

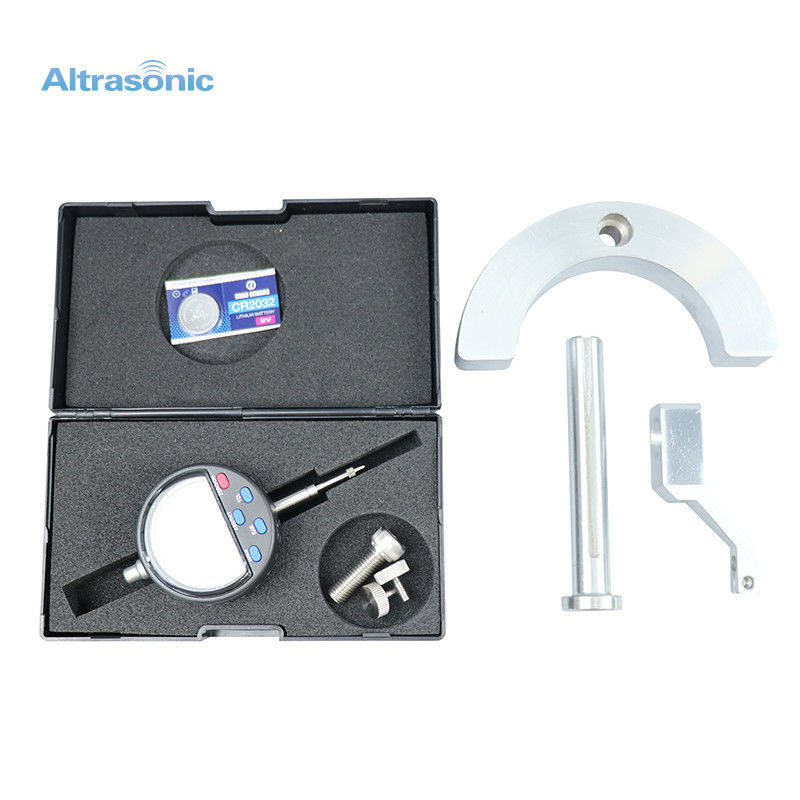

Large Image :  High Precision Ultrasonic Amplitude Measuring Instrument Built In DC 3V Power Supply

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS0901B

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Plastic case
Delivery Time: In 7 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 200 Sets/Month
Contact Now
Detailed Product Description
Frequency Range: 100 K~200 KHZ Measuring Range: More Than 3 μm
Supply Power: Built-in Power Supply (DC 3V) Precision: 2.5%

Ultrasonic Amplitude Measuring Instrument With Built-in DC 3V Power Supply Portable High Precision​







Description:



Ultrasonic Amplitude Measuring instrucment is used to measure the amplitude of ultrasonic equipments.

The Characteristic as below:



* Both Digital and analog display

* Absolute and relative measurement

* Numerical preset actual position

* Large display with rotation in 360º

* high-capacity volt lithium battery (3V)



And the Major function:

* Any position can be reset

* Any position can be metric and imperial conversion

* Can change the direction of the count

* Automatic and manual shutdown

* Relative and absolute surveying users can design any position as the starting position

* Data output wires by selecting the directly transmitted to computer for data processing

* Analog pointer can show trends







Specifications:



Model HS0901B
Precision 2.5%
Sensitivity 1 μm
Measuring Range More than 3 μm
Frequency Range 10 KHz – 200 KHz
Supply Power Built-in power supply (DC 3V)
Type of Indicator Digital
Test direction

Up or down









Quick Detail:



Delicate design

Reasonable structure

Simple operation

Accurate measurement

Can replace the laser measuring device



Consistent and correct amplitude is one of the most important factors in achieving a high-quality ultrasonic weld. The Amplitude Gauge makes measuring and setting that amplitude easy. Simply bring the gauge into contact with the ultrasonic horn, press the welder test button and read the total amplitude in microns on the dial.

Determine variances in amplitude from welder to welder, use the gauge on several areas of the horn face to indicate a bad or unbalanced horn, or check for horn overstressing which, found early, will save many horns from cracking.

  • Rack and pinion adjustment for ease of operation
  • Total amplitude reading in microns, directly from the dial, eliminates the need for conversion
  • Sturdy carrying case included





Applications:



Ultrasonic Amplitude Measuring Instrument is used to measure the amplitude of ultrasonic equipment.







Competitive Advantage:



The measuring instrument of ingenious design, reasonable structure, simple operation, accurate measurement

Easy operation, wide applicability, no plug

Compact design, reliable work, can directly replace the laser measuring instrument

Quality assurance, sufficient stock, fast delivery







Ultrasonic Amplitude Measuring Instrument With Built-in DC 3V Power Supply Portable High Precision​



High Precision Ultrasonic Amplitude Measuring Instrument Built In DC 3V Power Supply

High Precision Ultrasonic Amplitude Measuring Instrument Built In DC 3V Power Supply
