Mini Ultrasonic Transducer Measurement Instruments with Large Full-screen Touching

China Mini Ultrasonic Transducer Measurement Instruments with Large Full-screen Touching supplier
Mini Ultrasonic Transducer Measurement Instruments with Large Full-screen Touching supplier Mini Ultrasonic Transducer Measurement Instruments with Large Full-screen Touching supplier Mini Ultrasonic Transducer Measurement Instruments with Large Full-screen Touching supplier Mini Ultrasonic Transducer Measurement Instruments with Large Full-screen Touching supplier Mini Ultrasonic Transducer Measurement Instruments with Large Full-screen Touching supplier

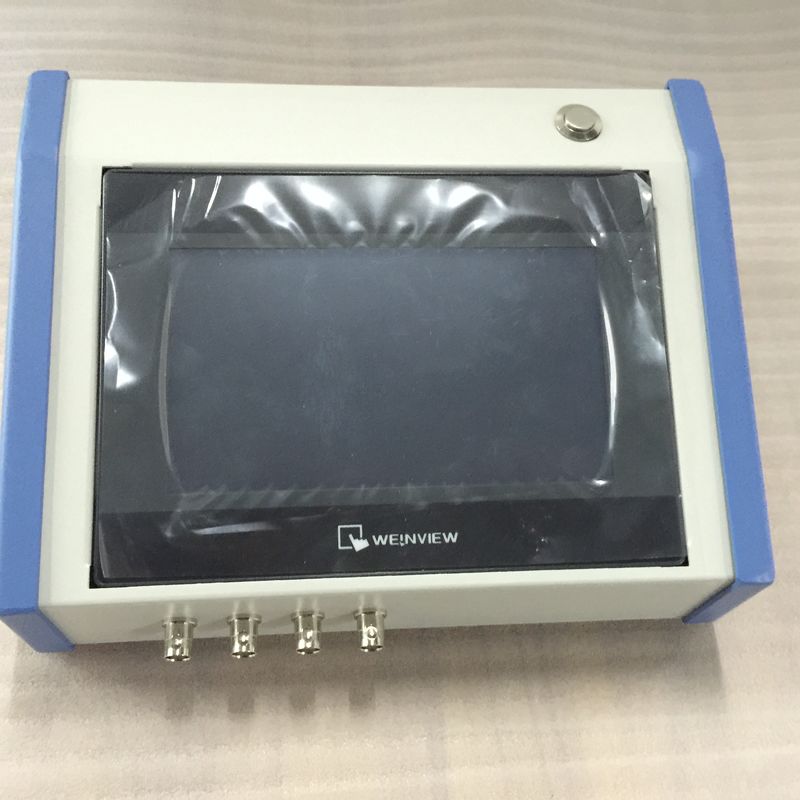

Large Image :  Mini Ultrasonic Transducer Measurement Instruments with Large Full-screen Touching

Product Details:

Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HS520A (Newest)

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: wood case
Delivery Time: 7 work days
Payment Terms: T/T, Western Union
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Part Name:: Impedance Analyzer Frequency Range:: 1KHz~500kHz
Frequency Accuracy:: ±10 Ppm Amplification:: Piezoelectric Ceramic, Ultrasonic Transducer, Power Ultrasonic,
Net Weight:: 2.5kg Dimensions:: 240*190*100mm
Speed Of Measuring:: 5s / One Pass

Mini New Generation Of Ultrasonic Transducer Measuring Instrument with Large Full-screen Touching



Description:



For ultrasonic components measuring instrument, the most important is the admittance chart, logarithmic graph of the two graphics (the two graphics is the main method of qualified qualified), and more than a dozen parameters: resonance frequency Fs, the maximum conductance Gmax, bandwidth F2-F1, anti-resonance frequency Fp, quality factor Qm, free capacitance CT, dynamic resistance R1, dynamic inductance L1, dynamic capacitance C1, static capacitance C0, effective electromechanical coupling coefficient Keff.



The Measuring instrument which can easily replace much more complex and more complicated, also many times more expensive instruments from Agilent/HP, as for instance: HP Impedance Gain-Phase Analyzer 4294A, Agilent E5100A, Network Analyzer, HP 3563A,Control System Analyzer etc. It is also very easy to use HS520A (by engineers or ordinary production workers).



HS520A is based on the HS70A and HS80A, a new generation of ultrasonic components analyzer.


Its characteristics are as follows:


1. Large screen, full-screen touch, making the HS520A both HS70A (computer version) operating experience, and no cumbersome with a sense of computer operation.
2. Based on the new powerful ARM processor data processing capabilities, HS520A measurement accuracy to HS70A (computer version) level.
3. Full-screen touch operation more humane, the operation of the instrument has become extremely simple, while smaller size, lighter weight, better portability.
4. HS520A and HS70A software is fully compatible, so the old user no longer familiar with the software operation.



Specification:


Mini Ultrasonic Transducer Measurement Instruments with Large Full-screen Touching



Applications:



Ultrasonic Component Analyzer HS520A series of products for various types of ultrasonic devices for measuring objects, including: piezoelectric ceramics, transducers, ultrasonic cleaning machines, ultrasonic plastic welding machine, underwater acoustic, magnetostrictive materials, ultrasonic grinder, ultrasonic atomization , Ultrasonic cleaning, reversing radar, ultrasonic ranging, phacoemulsification, ultrasonic cleaning, ultrasonic motors, and all other devices and devices used in piezoelectric and ultrasound.



Impedance analyzer is adopted to help the company make much profit,



Product Type:



Item No. HS70A HS80A HS520A
Frequency range 1KHz ~ 500KHz 1KHz ~ 1MHz 1KHz ~ 500KHz
Frequency accuracy ±10ppm ±10ppm ±10ppm
Impedance accuracy < 1% < 1% < 0.5%
Impedance Range 0.1Ω to 1MΩ 0.1Ω to 1MΩ 0.1Ω to 1MΩ
Frequency Step 0.1 Hz to Any 0.1 Hz to Any 0.1 Hz to Any

Measuring speed

(equivalent 600 points scan)

10 sec/one pass 5 sec/one pass 5 sec/one pass
Application Power Ultrasonic device Piezoelectric ceramic All ultrasonic products and components
Dimensions 350*200*150mm 350*200*150mm 240*190*100mm





Mini New Generation Of Ultrasonic Transducer Measuring Instrument with Large Full-screen Touching





Mini Ultrasonic Transducer Measurement Instruments with Large Full-screen Touching



Mini Ultrasonic Transducer Measurement Instruments with Large Full-screen Touching
