70Khz High Frenquency Ultrasonic Plastic Welding Machine with Digtal Generator 100W

China 70Khz High Frenquency Ultrasonic Plastic Welding Machine with Digtal Generator 100W supplier
70Khz High Frenquency Ultrasonic Plastic Welding Machine with Digtal Generator 100W supplier 70Khz High Frenquency Ultrasonic Plastic Welding Machine with Digtal Generator 100W supplier 70Khz High Frenquency Ultrasonic Plastic Welding Machine with Digtal Generator 100W supplier 70Khz High Frenquency Ultrasonic Plastic Welding Machine with Digtal Generator 100W supplier

Large Image :  70Khz High Frenquency Ultrasonic Plastic Welding Machine with Digtal Generator 100W

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSD80B

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: One set in Carton
Delivery Time: 7 work days afer recieving the payment
Payment Terms: T/T, Western Union
Supply Ability: 5000 per month
Contact Now
Detailed Product Description
Frequency: 70Khz Power: 100W
Generator: Digital Weight: 8Kg

70Khz High Frenquency Ultrasonic Embedding Welding Machine with Digtal Generator 100W



Quick Detail:



Steady welding point, completely eradicate insufficient solder
Save labor and cost
Search the frequency automatically



Description:

During the past half year, with many effort from the research development section of our company, at present we have successfully promote the intelligent card welding equipment substantially. After promotion, comparison with the former one, the properties of the equipment has been promoted highly, more stability, better in search the frequency at more wide range, and much better appearance. On the process using the former 60K equipment, with the damage of the welding horn, the frequency would be altered.(the frequency is decided by the size of the product).When the frequency is altered to a certain degree, the ultrasonic generator would be difficult to coincide with the frequency, then influencing to the normal running of all the ultrasonic system.



Item HSD80B
Frequency 70Khz
Power 100W

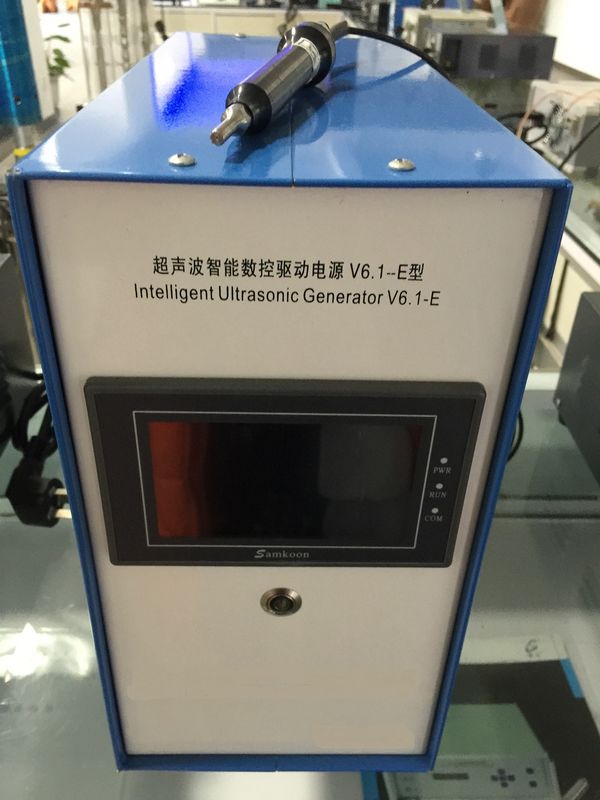

Generator Full digital generator

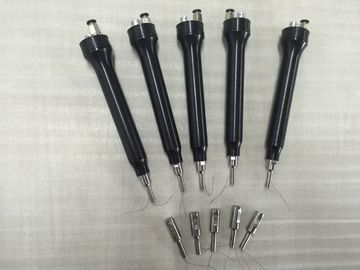

Transducer 1070-2Z





Applications:



The equipment is used for the coil embedded in a smart card.



There are 3 different technique to produce PVC Card Inlay, pre-winding, ultrasonic and Flip.

Among them, the cards made by Flip will have very flat surface, and very thinner thickness; for ultrasonic, it has the best working performance no matter for the reading distance, or the card's surface; also, the cost of pre-winding is more cheaper than ultrasonice and Flip.





Competitive Advantage:



★ Steady welding point, completely eradicate insufficient solder technically.

★ The size of welding spots is the same, equality line, good effect on uniformity.

★ The welding spot is small, wouldn’t increase the weight of the coil, easy to do lamination and encapsulation.

★ To leave out the immersion tin step before doing welding, save an operator.

★ After skilled in welding, much faster than the way to use searing iron to do weld.

★ On the process on manufactory, there is no waste gas, waste rubbish on pollution, runs in quiet and no noise.

★ To select the frequency 60KHz, one machine could drive 5-10 ultrasonic products, the speed to do welding is much faster.

★ Low power consumption, to save production cost for manufactory enterprise.



70Khz High Frenquency Ultrasonic Embedding Welding Machine with Digtal Generator 100W



70Khz High Frenquency Ultrasonic Plastic Welding Machine with Digtal Generator 100W70Khz High Frenquency Ultrasonic Plastic Welding Machine with Digtal Generator 100W

Tag: plastic spot welder,ultrasonic plastic welder
