HS520A digital screen Ultrasonic horn analyzer ceramic testing , easy operation

China HS520A digital screen Ultrasonic horn analyzer ceramic testing , easy operation supplier
HS520A digital screen Ultrasonic horn analyzer ceramic testing , easy operation supplier HS520A digital screen Ultrasonic horn analyzer ceramic testing , easy operation supplier

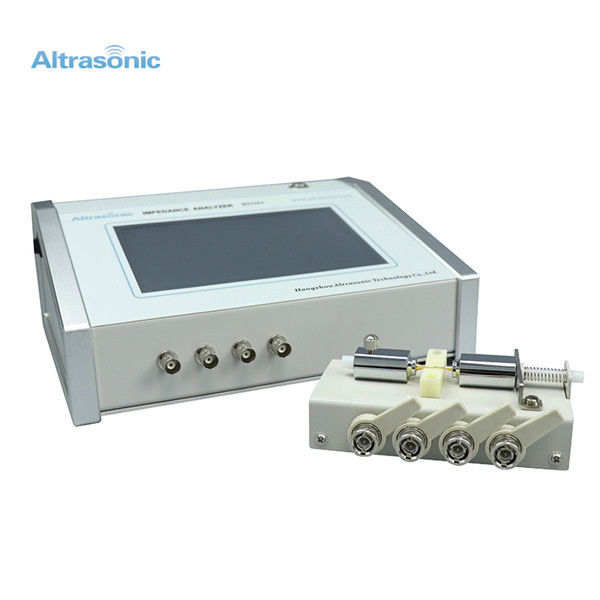

Large Image :  HS520A digital screen Ultrasonic horn analyzer ceramic testing , easy operation

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS520A (Newest)

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: wood case
Delivery Time: 5days
Payment Terms: T/T, Western Union
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Part Name: Impedance Analyzer Frequency Range: 1KHz~500kHz
Frequency Accuracy: ±10 Ppm Amplification: Piezoelectric Ceramic, Ultrasonic Transducer, Power Ultrasonic,
Net Weight: 2.5kg Dimensions: 240*190*100mm
Speed Of Measuring: 0.5s / One Pass



HS520A digital screen Ultrasonic horn analyzer ceramic testing , easy operation



Description:



For ultrasonic components measuring instrument, the most important is the admittance chart, logarithmic graph of the two graphics (the two graphics is the main method of qualified qualified), and more than a dozen parameters: resonance frequency Fs, the maximum conductance Gmax, bandwidth F2-F1, anti-resonance frequency Fp, quality factor Qm, free capacitance CT, dynamic resistance R1, dynamic inductance L1, dynamic capacitance C1, static capacitance C0, effective electromechanical coupling coefficient Keff.



The Measuring instrument which can easily replace much more complex and more complicated, also many times more expensive instruments from Agilent/HP, as for instance: HP Impedance Gain-Phase Analyzer 4294A, Agilent E5100A, Network Analyzer, HP 3563A,Control System Analyzer etc. It is also very easy to use HS520A (by engineers or ordinary production workers).



HS520A is based on the HS70A and HS80A, a new generation of ultrasonic components analyzer.


Its characteristics are as follows:


1. Large screen, full-screen touch, making the HS520A both HS70A (computer version) operating experience, and no cumbersome with a sense of computer operation.
2. Based on the new powerful ARM processor data processing capabilities, HS520A measurement accuracy to HS70A (computer version) level.
3. Full-screen touch operation more humane, the operation of the instrument has become extremely simple, while smaller size, lighter weight, better portability.
4. HS520A and HS70A software is fully compatible, so the old user no longer familiar with the software operation.



Specification:



Impedance Analyzer  HS520A Newest
Frequency Range 1KHz~500KHz
Basic Accuracy < 0.5%
Scan Speed 5 sec/one pass (equivalent to 600 scan dots)
Frequency Accuracy ±10 ppm
Phase Accuracy 0.15 degree
Temperature Range 10~40 degree Celsius
Impedance Range 0.1Ω~1MΩ
Frequency Step 0.1Hz to Any
Measure Items Resonance Frequency: Fs
Half Power Frequency: F1 and F2
Maximum real admittance at Fs: Gmax
Dynamic Resistance: R1
Anti resonance frequency: Fp
Mechanical quality factor: Qm
Free capacitance: CT
Dynamic inductance: L1
Dynamic capacitance: C1
Static capacitance: Co
electromechanical coupling coefficient: Keff and Kp
Maximum real impedance at Fp: Zmax
Measure Diagram G,B-F
G-B (admittance circle coordinate)
R,X-F
R-X (impedance circle coordinate)
Z,phase-F
Y,phase-F
Z(Logarithm),phase-F
Amplification

piezoelectric ceramic, ultrasonic transducer, power ultrasonic,

ultrasonic weld, ultrasonic clean, ultrasonic sensor

Dimensions : 240mm*190mm*100mm

Size of LCD Screen: 8-inch screen





Applications:



Ultrasonic Component Analyzer HS520A series of products for various types of ultrasonic devices for measuring objects, including: piezoelectric ceramics, transducers, ultrasonic cleaning machines, ultrasonic plastic welding machine, underwater acoustic, magnetostrictive materials, ultrasonic grinder, ultrasonic atomization , Ultrasonic cleaning, reversing radar, ultrasonic ranging, phacoemulsification, ultrasonic cleaning, ultrasonic motors, and all other devices and devices used in piezoelectric and ultrasound.





Impedance analyzer is adopted to help the company make much profit,



Product Type:



Item No. HS70A HS80A HS520A
Frequency range 1KHz ~ 500KHz 1KHz ~ 1MHz 1KHz ~ 500KHz
Frequency accuracy ±10ppm ±10ppm ±10ppm
Impedance accuracy  < 1%  < 1% < 0.5%
Impedance Range 0.1Ω to 1MΩ 0.1Ω to 1MΩ 0.1Ω to 1MΩ
Frequency Step 0.1 Hz to Any 0.1 Hz to Any 0.1 Hz to Any

Measuring speed

(equivalent 600 points scan)

10 sec/one pass 5 sec/one pass 5 sec/one pass
Application Power Ultrasonic device Piezoelectric ceramic All ultrasonic products and components
Dimensions  350*200*150mm 350*200*150mm 240*190*100mm

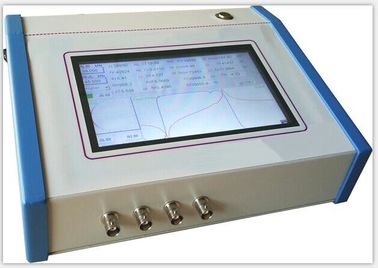

Portable measuring instrument , Horn analyzer , transducer characteristics tesing with full-screen touch



1) Admittance coordinate system GBF coordinate curve:



HS520A digital screen Ultrasonic horn analyzer ceramic testing , easy operation





2) Impedance coordinate system RXF coordinate curve:



HS520A digital screen Ultrasonic horn analyzer ceramic testing , easy operation


3) impedance of the polar coordinate system ZθF coordinate curve:



HS520A digital screen Ultrasonic horn analyzer ceramic testing , easy operation


4) Admittance Polar coordinate system YθF Coordinate curve:



HS520A digital screen Ultrasonic horn analyzer ceramic testing , easy operation


5) Logarithmic coordinate system:





HS520A digital screen Ultrasonic horn analyzer ceramic testing , easy operation

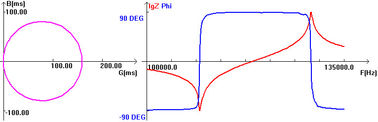

6) Admittance chart and logarithmic graph of normal device:



HS520A digital screen Ultrasonic horn analyzer ceramic testing , easy operation





7) Admittance chart and logarithmic curve of abnormal device:





HS520A digital screen Ultrasonic horn analyzer ceramic testing , easy operationHS520A digital screen Ultrasonic horn analyzer ceramic testing , easy operation



HS520A digital screen Ultrasonic horn analyzer ceramic testing , easy operation
