|Part Name:||Impedance Analyzer||Frequency Range:||1KHz～500kHz|
|Frequency Accuracy:||±10 Ppm||Amplification:||Piezoelectric Ceramic, Ultrasonic Transducer, Power Ultrasonic,|
|Speed Of Measuring:||0.5s / One Pass|

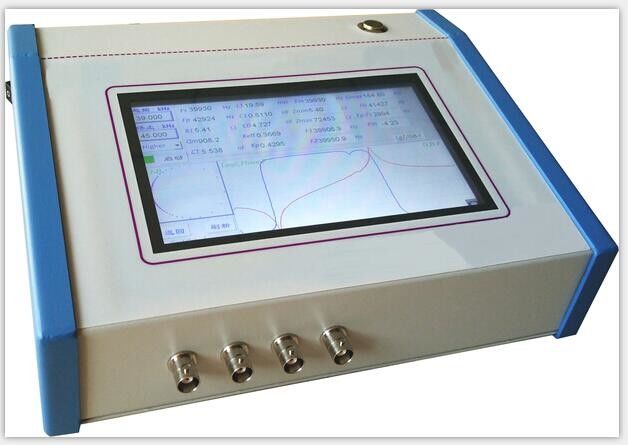

Portable Ultrasonic transducer analyzer Measuring Instrument full screen touch

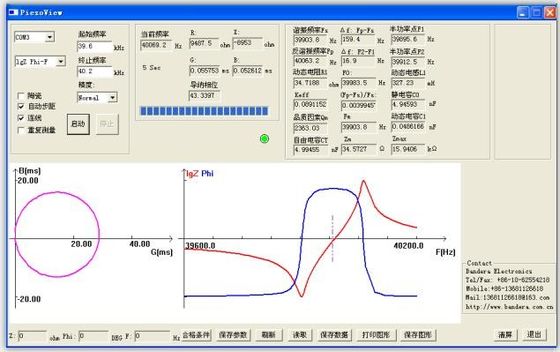

For ultrasonic components measuring instrument, the most important is the admittance chart, logarithmic graph of the two graphics (the two graphics is the main method of qualified qualified), and more than a dozen parameters: resonance frequency Fs, the maximum conductance Gmax, bandwidth F2-F1, anti-resonance frequency Fp, quality factor Qm, free capacitance CT, dynamic resistance R1, dynamic inductance L1, dynamic capacitance C1, static capacitance C0, effective electromechanical coupling coefficient Keff.
The Measuring instrument which can easily replace much more complex and more complicated, also many times more expensive instruments from Agilent/HP, as for instance: HP Impedance Gain-Phase Analyzer 4294A, Agilent E5100A, Network Analyzer, HP 3563A,Control System Analyzer etc. It is also very easy to use HS520A (by engineers or ordinary production workers).
HS520A is based on the HS70A and HS80A, a new generation of ultrasonic components analyzer.
Its characteristics are as follows:
1. Large screen, full-screen touch, making the HS520A both HS70A (computer version) operating experience, and no cumbersome with a sense of computer operation.
2. Based on the new powerful ARM processor data processing capabilities, HS520A measurement accuracy to HS70A (computer version) level.
3. Full-screen touch operation more humane, the operation of the instrument has become extremely simple, while smaller size, lighter weight, better portability.
4. HS520A and HS70A software is fully compatible, so the old user no longer familiar with the software operation.
|Impedance Analyzer||HS520A Newest|
|Basic Accuracy||< 0.5%|
|Scan Speed||5 sec/one pass (equivalent to 600 scan dots)|
|Frequency Accuracy||±10 ppm|
|Phase Accuracy||0.15 degree|
|Temperature Range||10～40 degree Celsius|
|Frequency Step||0.1Hz to Any|
|Measure Items||Resonance Frequency: Fs|
|Half Power Frequency: F1 and F2|
|Maximum real admittance at Fs: Gmax|
|Dynamic Resistance: R1|
|Anti resonance frequency: Fp|
|Mechanical quality factor: Qm|
|Free capacitance: CT|
|Dynamic inductance: L1|
|Dynamic capacitance: C1|
|Static capacitance: Co|
|electromechanical coupling coefficient: Keff and Kp|
|Maximum real impedance at Fp: Zmax|
|G-B (admittance circle coordinate)|
|R-X (impedance circle coordinate)|
piezoelectric ceramic, ultrasonic transducer, power ultrasonic,
ultrasonic weld, ultrasonic clean, ultrasonic sensor
Dimensions : 240mm*190mm*100mm
Size of LCD Screen: 8-inch screen
Ultrasonic Component Analyzer HS520A series of products for various types of ultrasonic devices for measuring objects, including: piezoelectric ceramics, transducers, ultrasonic cleaning machines, ultrasonic plastic welding machine, underwater acoustic, magnetostrictive materials, ultrasonic grinder, ultrasonic atomization , Ultrasonic cleaning, reversing radar, ultrasonic ranging, phacoemulsification, ultrasonic cleaning, ultrasonic motors, and all other devices and devices used in piezoelectric and ultrasound.
Impedance analyzer is adopted to help the company make much profit,
|Frequency range||1KHz ~ 500KHz||1KHz ~ 1MHz||1KHz ~ 500KHz|
|Impedance accuracy||< 1%||< 1%||< 0.5%|
|Impedance Range||0.1Ω to 1MΩ||0.1Ω to 1MΩ||0.1Ω to 1MΩ|
|Frequency Step||0.1 Hz to Any||0.1 Hz to Any||0.1 Hz to Any|
(equivalent 600 points scan)
|10 sec/one pass||5 sec/one pass||5 sec/one pass|
|Application||Power Ultrasonic device||Piezoelectric ceramic||All ultrasonic products and components|
Portable measuring instrument , Horn analyzer , transducer characteristics tesing with full-screen touch
