|Part Name:||Impedance Analyzer||Frequency Range:||1KHz～1MHz|
|Frequency Accuracy:||±10 Ppm||Amplification:||Piezoelectric Ceramic, Ultrasonic Transducer, Power Ultrasonic,|
Ultrasonic transducer ultrasonic horn ultrasonic booster measuring instrument
Impedance analyzer is the instrument applicable for measuring impedance-vs.-frequency and phase-vs.-frequency characteristics of complex impedance electrical components, as for instance: ultrasonic devices, piezoelectric ceramics and piezoelectric transducers for ultrasonic cleaners and ultrasonic plastic welders, underwater acoustic transducers, sensors, magnetostrictive transducers, and for many other industrial and medical applications.
The instrument which can easily replace much more complex and more complicated, also many times more expensive instruments from Agilent/HP, as for instance: HP Impedance Gain-Phase Analyzer 4294A, Agilent E5100A, Network Analyzer, HP 3563A,Control System Analyzer etc. It is also very easy to use HS70A-80A (by engineers or ordinary production workers).
|Impedance Analyzer||HS80A (Improved)|
|Basic Accuracy||< 1%|
|Scan Speed||5 sec/one pass (equivalent to 600 scan dots)|
|Frequency Accuracy||±10 ppm|
|Phase Accuracy||0.15 degree|
|Temperature Range||10～40 degree Celsius|
|Frequency Step||0.1Hz to Any|
|Measure Items||Resonance Frequency: Fs|
|Half Power Frequency: F1 and F2|
|Maximum real admittance at Fs: Gmax|
|Dynamic Resistance: R1|
|Anti resonance frequency: Fp|
|Mechanical quality factor: Qm|
|Free capacitance: CT|
|Dynamic inductance: L1|
|Dynamic capacitance: C1|
|Static capacitance: Co|
|electromechanical coupling coefficient: Keff and Kp|
|Maximum real impedance at Fp: Zmax|
|G-B (admittance circle coordinate)|
|R-X (impedance circle coordinate)|
piezoelectric ceramic, ultrasonic transducer, power ultrasonic,
ultrasonic weld, ultrasonic clean, ultrasonic sensor
HS70A (Improved) Impedance Analyzer(1KHz～500KHz)Including:
Impedance analyzer is the instrument essential in every production of ultrasonic equipment for components measurements and qualification and for resonant frequencies measurements.
This instrument can measure admittance characteristic curve of piezoelectricity element (the admittance is equal to reciprocal of impedance) and analyze and extractthe above needed parameters. With this instrument, you can gain four characteristic curves of piezoelectricity element (admittance characteristic graph, impedancecharacteristic graph, admittance coordinate graph, impedance coordinate graph).
Moreover, it is easy to save and print the measured result.

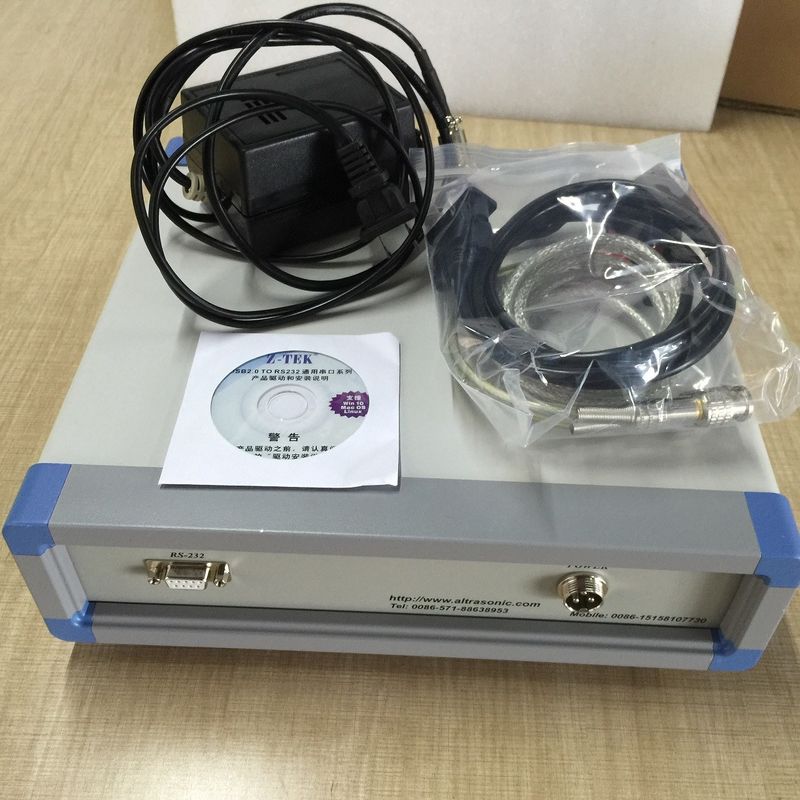

This instrument combines the hardware and PC software for impedance analysis. The hardware system finishes impedance measure, and the PC software finishes impedance analysis and parameter extraction power.
This instrument is used for guiding piezoelectricity element's testing and using.It is a synthetic solution of piezoelectricity element's measurement and analysis.Moreover, it can evaluate and test parameters of the piezoelectricity element.
Impedance analyzer is widely applied in ultrasonic industries, including ultrasonic plastic welder, ultrasonic cleaner, ultrasonic transducer,ultrasonic electro machining, underwater acoustic transducer, ultrasonic sensor, piezoelectric ceramic, parking sensor, medical ultrasonic device, ultrasonic scaling device, ultrasonic horn, ultrasonic welding head, ultrasonic grinder, and ultrasonic emulsor.
Impedance analyzer is adopted to help the company make much profit,
1) Obviously improving product quality. Because the graphics of impedance analyzer finds out whether there is unobvious bug inside ultrasonic devices, it can be applied in testing Corp's materials and instructing the production.
2) Rapid measurement speed can reduce human capital tremendously if needful to measure a lot of devices.
3) The instrument which can easily replace much more complex and more complicated, also many times more expensive instruments from Agilent/HP, as for instance: HP Impedance Gain-Phase Analyzer 4294A, Agilent E5100A, Network Analyzer, HP 3563A,Control System Analyzer etc. It is also very easy to use HS70A-80A (by engineers or ordinary production workers).
|Frequency range||1KHz ~ 500KHz||1KHz ~ 1MHz|
|Impedance accuracy||< 1%||< 1%|
|Impedance Range||0.1Ω to 1MΩ||0.1Ω to 1MΩ|
|Frequency Step||0.1 Hz to Any||0.1 Hz to Any|
(equivalent 600 points scan)
|10 sec/one pass||5 sec/one pass|
|Application||Power Ultrasonic device||Piezoelectric ceramic|
Portable Impedance Analyzer , transducer characteristics tesing instrument , 1KHZ to 1MHZ
