Product Details:
|
| Color: | Blue、Yellow、 Black | Power: | 10W |
|---|---|---|---|
| Application: | Measuring | ||
| High Light: | 10W Ultrasonic Sound Intensity Measuring Instrument,3.2 Inch TFT Liquid Measuring Instrument |
||

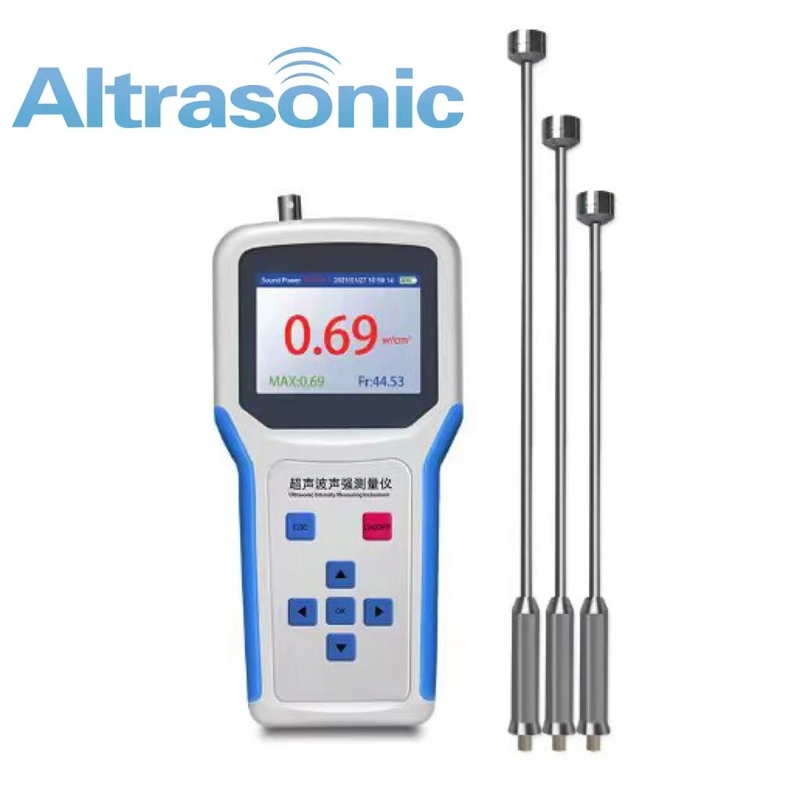

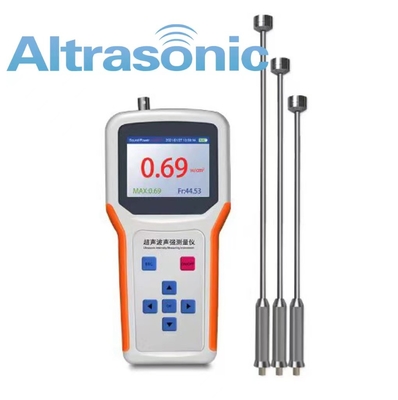

Blue Ultrasonic Sound Intensity Measuring Instrument for liquid
The sound intensity measuring instrument uses the positive piezoelectric characteristic of piezoelectric ceramics, that is, the piezoelectric effect. When we look at piezoelectric ceramics. When a force is applied, it converts that force into an electrical signal. Under the same conditions, the effect The stronger the force, the higher the voltage. If the magnitude of the force changes with a certain period, the piezoelectric ceramic will output an AC voltage signal of the same frequency. Due to cavitation and other disturbances, the actual voltage waveform is one the superposition of the main wave and many minor waves. The precision ultrasonic frequency (energy) analyzer produced by our company can visually view the actual acting waveform and read the sound intensity value.
Specification
| Instrument type |
HS-C200C |
HS-C2001 |
HS-C3001 |
HS-C300P |
| Measuring range (w/m2) |
0.01-25.40 | 0.01-25.40 | 0.01-25.40 | 0.01-25.40 |
| Measuring frequency (KHZ) |
/ | 10.0-99.9 | 10.0-200 | |
Data display |
Instantaneous value, maximum value, instantaneous frequency, sound intensity curve, recorded value |
|||
| Number of memory groups | 13 | 13 | 13 | 200 |
| Resolution | 1% | 1% | 0.1% | 0.1% |
| Calibration function | yes |
|||
| Fluid temperature | 0-135℃ | |||
|
Standby power consumption (W) |
10 | |||
| Battery display | yes |
|||
| Energy-saving mode | yes |
|||
| Storage interval | fixed | Optional (1-600s) | ||
| Data export mode | no | Can connect PC/PLC, can communicate | ||
| Frequency display | no | yes | ||
| Display mode | 3.2 inch TFT(320*240) | |||
| Power supply mode | 3.7V*2 rechargeable battery | |||
| Probe material | Conventional | precise | ||
| Probe housing | Stainless steel seal tube | |||
| Probe length (customizable) | 0.5m stainless steel probe +0.5m cable | |||
| Mode of operation | Film keying | |||
Advantage
1. The measuring instrument is simple to use and accurate to measure.
2, real-time power detection, timely remind users.
3, with power-saving mode, long working time.
