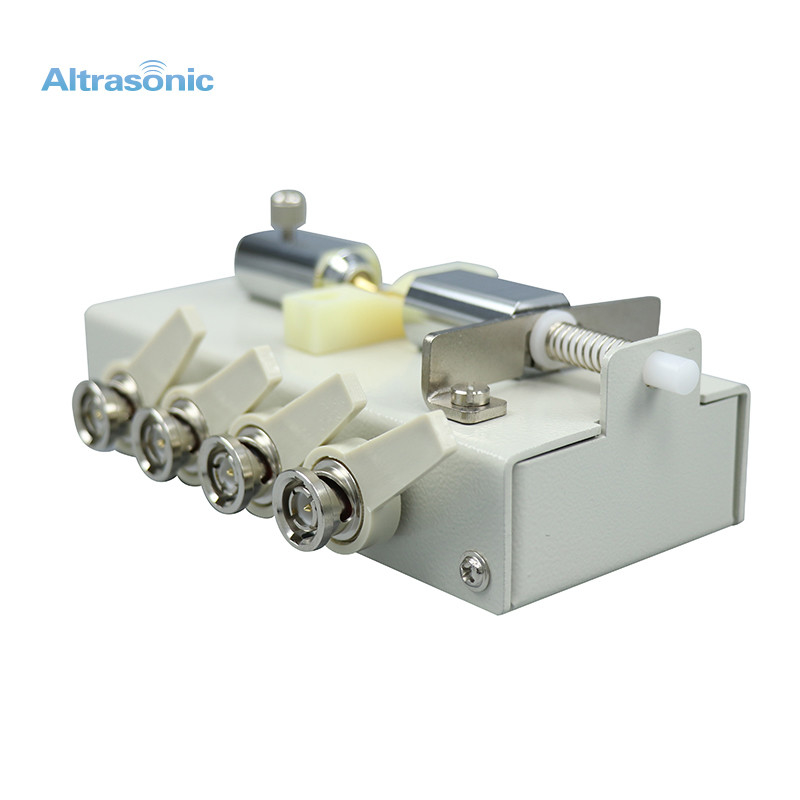

Product Details:
|
| Part Name: | Impedance Analyzer | Frequency Range: | 1KHz～500KHz/3Mhz/5Mhz |
|---|---|---|---|
| Frequency Accuracy: | ±10 Ppm | Amplification: | Piezoelectric Ceramic, Ultrasonic Transducer, Power Ultrasonic |
| Net Weight: | 3.5kg | Dimensions: | 240*190*100mm |
| Speed Of Measuring: | 0.5s / One Pass | Phase Accuracy: | 0.15 Degree |
| Impedance Range: | 0.1Ω~1MΩ | Frequency Step: | 0.1Hz To Any |
| High Light: | Welding Transducer Ultrasonic Impedance Analyzer,Piezoelectric Ceramic Ultrasonic Impedance Analyzer |
||
Specification
| Product name | Ultrasonic impedance analyzer |
| Frequency range | 1kHz~500kHz |
| Measurement Index | All the parameters, the graph |
| Measurement Accuracy | <0.5% |
| Frequency Accuracy | ±10ppm |
| Impedance Range | 1Ω~1MΩ |
| Frequency Step | 0.1Hz～Any |
The parameters that can be measured by impedance analyzer:
Static capacitance
Resonant frequency
Anti resonance frequency
Mechanical Quality Factor
Minimum impedance
Maximum impedance
Impedance phase
Frequency bandwidth
Electromechanical Coupling Coefficient.
The impedance analyzer provides five kinds of coordinate charts, among which the logarithmic charts are of great significance for the detection of piezoelectric devices. The vibration performance of piezoelectric oscillator or vibration system can be judged directly by logarithmic coordinate diagram, which is more intuitive and practical.
