Product Details:
|
| Model: | HS-199I | Measuring Range(w/cm2): | 0.02-2.55 |
|---|---|---|---|
| Screen: | LCD | Power: | 110~250V,5V/1.5A |
| Resolution(w/cm2): | 0.01 | Measuring Frequency: | 10.0KHz-99.9KHz |
| High Light: | Measuring Instrument 99.9KHz,Measuring Instrument 10.0KHz |
||
Ultrasonic Sound Intensity Measuring Instrument 99.9KHz With LCD Screen
Description:
Ultrasonic sound intensity measuring instrument is a kind of equipment specially used for measuring the ultrasonic sound intensity in liquid. Sound intensity is the sound power per unit area. The sound intensity directly affects the effects of ultrasonic cleaning, ultrasonic emulsification, ultrasonic extraction, ultrasonic dispersion, etc.
Specification:
| Measuring range(w/cm2) | 0.02-2.55 |
| Resolution(w/cm2) | 0.01 |
| Measuring frequency | 10.0KHz-99.9KHz |
| Data Display | Instantaneous value, maximum value, instantaneous frequency, sound intensity curve, recorded value |
| Fluid temperature | 0℃-75℃ |
| Frequency display | available |
| Standby power consumption | 10-5W |
| Display method | 3.2 inch TFT(320*240) |
| Power supply | 3.7V*2 |
| Operation method | Membrane button |
| Probe material | Stainless steel sealing tube |
| Probe length | 0.5m stainless steel probe + 0.5m cable |
Advantages:
Ultrasonic sound intensity measuring instrument is a measuring instrument that measures the intensity (sound pressure) of ultrasonic waves generated in the ultrasonic cleaning tank. It can help you complete the following tasks:
(1) Measure the cleaning effect of industrial parts
(2) Measure the performance of the cleaning tank
(3) Control the energy (frequency) level of the cleaning tank
(4) Evaluate the consistency of the cleaning tank and guide the design of the cleaning tank
(5) Mapping the ultrasonic energy changes in the cleaning tank

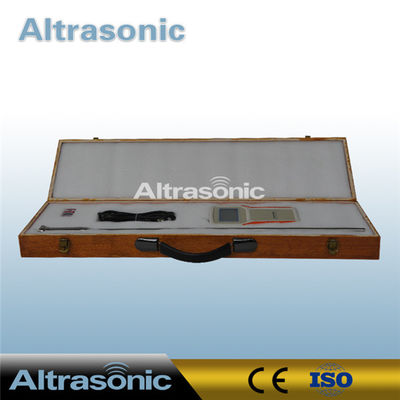

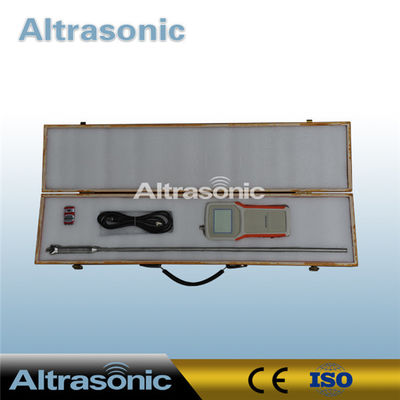

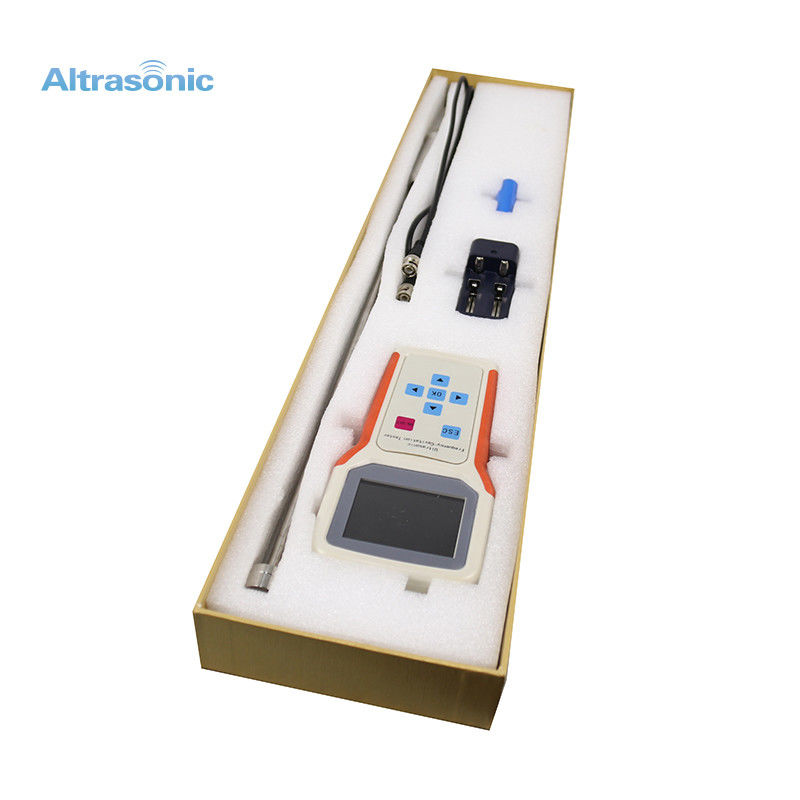

Detailed image:
