Product Name:: Impedance Analyzer Frequency Range:: 1KHz~500KHz
Basic Accuracy: <0.5% Frequency Accuracy: ±10 Ppm
Phase Accuracy: 0.15 Degree Origin: China

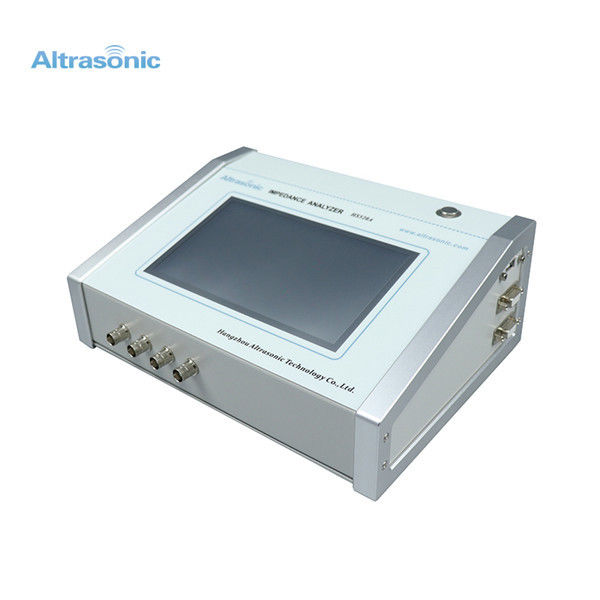

Touch screen ultrasonic horn analyzer for ptz ceramic testing





Description:



For ultrasonic components measuring instrument, the most important is the admittance chart, logarithmic graph of the two graphics (the two graphics is the main method of qualified qualified), and more than a dozen parameters: resonance frequency Fs, the maximum conductance Gmax, bandwidth F2-F1, anti-resonance frequency Fp, quality factor Qm, free capacitance CT, dynamic resistance R1, dynamic inductance L1, dynamic capacitance C1, static capacitance C0, effective electromechanical coupling coefficient Keff.



Detailed Product Description:



Part Name: Impedance Analyzer Frequency Range: 1KHz~500KHz
Basic Accuracy <0.5% Scan Speed 5 sec/one pass (equivalent to 600 scan dots)
Frequency Accuracy: ±10 ppm Amplification: Piezoelectric Ceramic, Ultrasonic Transducer, Power Ultrasonic
Phase Accuracy 0.15 degree Temperature Range 10~40 degree Celsius
Impedance Range 0.1Ω~1MΩ Frequency Step 0.1Hz to Any
Speed Of Measuring: 5s / One Pass(600san point) Power Supply AC100V~AC250V,50~60Hz,30W
Net Weight: 3.5kg Dimensions:

240*190*100mm







Specification:



Impedance Analyzer HS520A Newest
Measure Items Resonance Frequency: Fs
Half Power Frequency: F1 and F2
Maximum real admittance at Fs: Gmax
Dynamic Resistance: R1
Anti resonance frequency: Fp
Mechanical quality factor: Qm
Free capacitance: CT
Dynamic inductance: L1
Dynamic capacitance: C1
Static capacitance: Co
electromechanical coupling coefficient: Keff and Kp
Maximum real impedance at Fp: Zmax
Measure Diagram G,B-F
G-B (admittance circle coordinate)
R,X-F
R-X (impedance circle coordinate)
Z,phase-F
Y,phase-F
Z(Logarithm),phase-F

Dimensions : 240mm*190mm*100mm

Size of LCD Screen: 8-inch screen





Applications:



Ultrasonic Component Analyzer HS520A series of products for various types of ultrasonic devices for measuring objects, including: piezoelectric ceramics, transducers, ultrasonic cleaning machines, ultrasonic plastic welding machine, underwater acoustic, magnetostrictive materials, ultrasonic grinder, ultrasonic atomization , Ultrasonic cleaning, reversing radar, ultrasonic ranging, phacoemulsification, ultrasonic cleaning, ultrasonic motors, and all other devices and devices used in piezoelectric and ultrasound.
