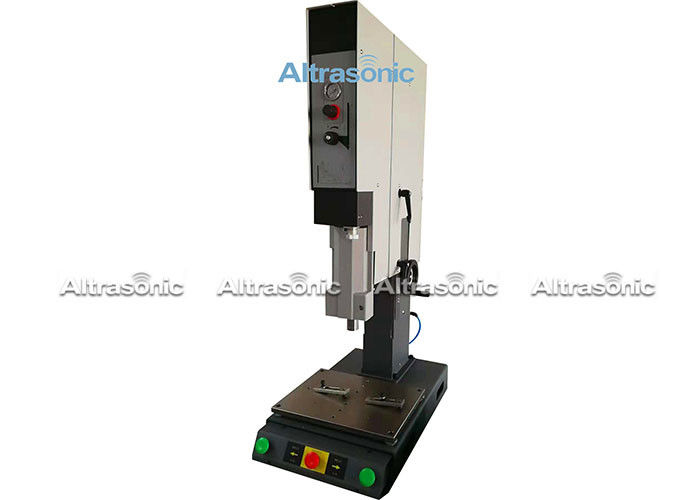

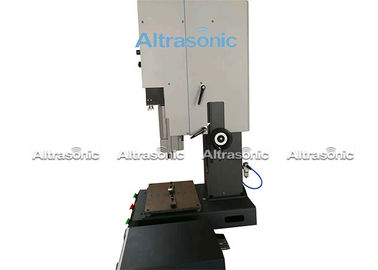

Fast High Frequency Plastic Welding Machine Application In Automotive Industry

Fast High Frequency Plastic Welding Machine Application In Automotive Industry
Fast High Frequency Plastic Welding Machine Application In Automotive Industry Fast High Frequency Plastic Welding Machine Application In Automotive Industry Fast High Frequency Plastic Welding Machine Application In Automotive Industry

Large Image :  Fast High Frequency Plastic Welding Machine Application In Automotive Industry

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-X20P
Payment & Shipping Terms:
Minimum Order Quantity: 1Pc
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 workdays after receipt of the full payment.
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 5000 pieces/month

Fast High Frequency Plastic Welding Machine Application In Automotive Industry

Description
Product Name: Ultrasonic Plastic Welding Machine Model Number:: HS-X20P
Frequency: 20Khz Power: 1500W
Voltage: 200-240V, Alternating Current Electric Current: 10A
Range Of Welding Time: 0.05-10/sec Environment Temperature: 5-50℃
Maximum Pressure: 1.96KN Weight: 110Kgs
High Light:

plastic spot welder

,

ultrasonic plastic welder



20Khz High Quality Ultrasonic Plastic Welding Machine Application for Automotive Industry







Description:


With the rapid development of the material industry, the application of composite materials such as plastics and metals with light weight, low friction, corrosion resistance and easy processing has received much attention. Various products of plastics have penetrated into various fields of daily life of people, and are also widely used in aviation, shipbuilding, automobiles, electrical appliances, packaging, toys, electronics, textiles and other industries. However, due to factors such as the injection molding process, a considerable number of plastic products with complicated shapes cannot be injection molded at one time, which requires bonding, and the plastic bonding and heat sealing processes that have been used for many years are quite backward, not only inefficient, but also bonding. The agent also has certain toxicity, causing problems such as environmental pollution and labor protection. The traditional process of this kind can not be applied to the development needs of the modern plastics industry, so a novel plastic processing technology - ultrasonic plastic welding stands out with its superiority of high efficiency, high quality, beautiful appearance and energy saving. Ultrasonic plastic welding machine does not add any adhesive, filler or solvent when welding plastic products, nor does it consume a lot of heat source. It has the advantages of simple operation, fast welding speed, high welding strength and high production efficiency. Therefore, ultrasonic welding technology is becoming more and more widely used.


Specification:



Item No HS-X20P
Frequency 20Khz
Power 1500W
Voltage 200-240V, Alternating current
50-60hz, Single phase
Electric current 10A
Range of welding time 0.05-10/sec
Environment Temperature 5-50℃
Air supply requirements Clean dry compressed air, maximum pressure 7kg
Maximum pressure 1.96KN
Maximum stroke 100MM
Beats 80CPM
Operated mode Time mode or Energy mode
Weight 110Kgs


Principle:

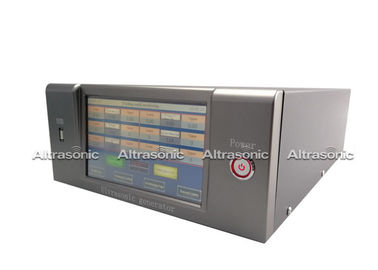

The generator generates 20KHZ, (or 15KHZ) high-voltage, high-frequency signal, through the conversion system, converts the signal into high-frequency mechanical vibration, which is applied to the workpiece of plastic products, through the working surface and the intrinsic intermolecular The friction causes the temperature to be transmitted to the interface to rise. When the temperature reaches the melting point of the workpiece itself, the workpiece welding port is rapidly melted, and then filled in the gap between the interfaces. When the vibration stops, the workpiece is simultaneously cooled and fixed under a certain pressure. , to achieve the perfect welding.

Fast High Frequency Plastic Welding Machine Application In Automotive Industry 0

Main advantages:

♦ Low cost and high efficiency.
♦ Easy to achieve automated production.
♦ Energy saving
♦ No need to equip the smoke ventilation device


WHY CHOOSE ALTRASONIC ?

1. OVERSEA SERVICE TEAM. We now have agents in India, Austrilia, Hongkong, Singapore, Taiwan, Malaysia, Germany, and other country still being discussing.
2. Innovation. Altrasonic R&D and marketing staffs to constantly explore new applications in the field of ultrasound, and the importance of team spirit of cooperation.
3. Half the price, double the value. Every product reach you have been test in our company three times, and with 72 hours continous working, to confirm it is well before you get it. Also we always learn from foreign company, to upgrade our products.
4. Good components. Ceramic mainly imported from German, and using the superior quality aluminum, titanium raw materials.
5. Individual Customize. We can customize products according to your requirements, Also supply OEM service. Customize ultrasonic solution for different applications.

Fast High Frequency Plastic Welding Machine Application In Automotive Industry 1
Fast High Frequency Plastic Welding Machine Application In Automotive Industry 2
