Easy Operation Ultrasonic Plastic Welding Machine For Seat Keyboard Plate

China Easy Operation Ultrasonic Plastic Welding Machine For Seat Keyboard Plate supplier
Easy Operation Ultrasonic Plastic Welding Machine For Seat Keyboard Plate supplier Easy Operation Ultrasonic Plastic Welding Machine For Seat Keyboard Plate supplier

Large Image :  Easy Operation Ultrasonic Plastic Welding Machine For Seat Keyboard Plate

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-X20P

Payment & Shipping Terms:

Minimum Order Quantity: 1Pc
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 workdays after receipt of the full payment.
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 5000 pieces/month
Contact Now
Detailed Product Description
Product Name: Ultrasonic Plastic Welding Machine Model Number:: HS-X20P
Frequency: 20Khz Power: 1500W
Voltage: 200-240V, Alternating Current Electric Current: 10A
Range Of Welding Time: 0.05-10/sec Environment Temperature: 5-50℃
Maximum Pressure: 1.96KN Weight: 110Kgs





Easy Operation 20Khz Ultrasonic Plastic Welding Machine For Seat Keyboard Plate



Description:

Ultrasonic welding generates heat to join parts and produces a clean weld area with uniform joint quality. High-frequency vibrations are applied to two parts or layers of material by a vibrating horn or sonotrode tool. The technique is fast, efficient, non-contaminating and requires no consumables. It’s the perfect welding technology for assembling automotive parts on a wide range of quality vehicles, crafting lifesaving medical devices and sealing modern food packaging

The HS-X20P series of ultrasonic welder offer a compact design to conserve work space,and is easy for operation and maintenance to achieve an outstanding cost-performance.
The HS-X20P series of ultrasonic welder is using a mechanical control and accurate duplication of welder parameters setting design for a more stable and reliable weld performance, suitable for more industrial applications.

Specification:


Item NoHS-X20P
Frequency20Khz
Power1500W
Voltage200-240V, Alternating current
50-60hz, Single phase
Electric current10A
Range of welding time0.05-10/sec
Environment Temperature5-50℃
Air supply requirementsClean dry compressed air, maximum pressure 7kg
Maximum pressure1.96KN
Maximum stroke100MM
Beats80CPM
Operated modeTime mode or Energy mode
Weight110Kgs


Principle:

Transmitted ultrasonic energy through welding parts to welding area, local high temperature will happen due to high acoustic resistance between two welding interface places. Also, no enough time dissipating out heating energy timely because of poor plastic thermal conductivity, heating energy gathered in welding area since could not dissipating out timely, the two plastic contact areas will welt rapidly, coupled with a certain pressure, it makes fusion to one unite. When ultrasonic stop function, and keep the pressure sustain to make its solidification molding, finally forming a strong molecular chain, which achieve the purpose of welding. And the welding strength can close to raw material body strength.

Main advantages:

♦ High Amplitude to adjusting different plastic material welding.
♦ Exclusive system protection monitor module.
♦ Self test and automatic frequency search.
♦ Dynamic Triggering to provide consistent welding result

WHY CHOOSE ALTRASONIC ?

1. OVERSEA SERVICE TEAM. We now have agents in India, Austrilia, Hongkong, Singapore, Taiwan, Malaysia, Germany, and other country still being discussing.
2. Innovation. Altrasonic R&D and marketing staffs to constantly explore new applications in the field of ultrasound, and the importance of team spirit of cooperation.
3. Half the price, double the value. Every product reach you have been test in our company three times, and with 72 hours continous working, to confirm it is well before you get it. Also we always learn from foreign company, to upgrade our products.
4. Good components. Ceramic mainly imported from German, and using the superior quality aluminum, titanium raw materials.
5. Individual Customize. We can customize products according to your requirements, Also supply OEM service. Customize ultrasonic solution for different applications.

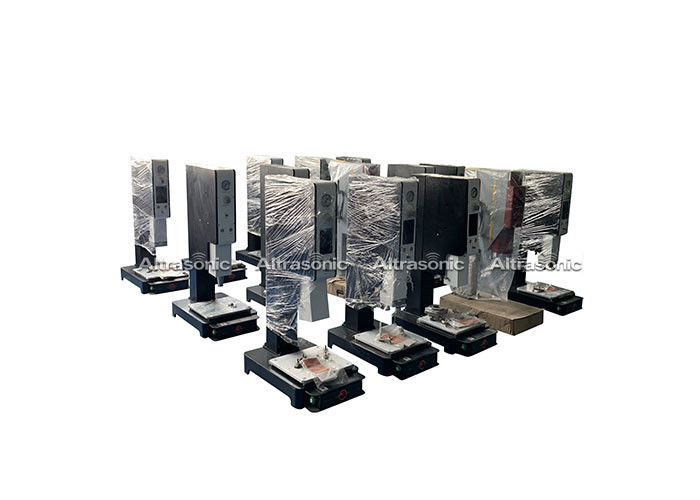

Easy Operation Ultrasonic Plastic Welding Machine For Seat Keyboard Plate

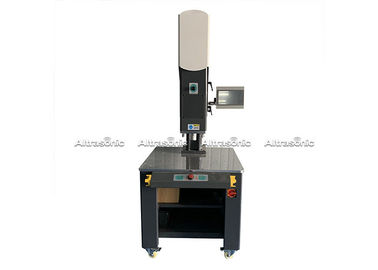

Easy Operation Ultrasonic Plastic Welding Machine For Seat Keyboard Plate

Easy Operation Ultrasonic Plastic Welding Machine For Seat Keyboard Plate
