1Khz - 3Mhz Measuring Instrument Ultrasonic Impedance Analyzer For Sonotrode Sound

China 1Khz - 3Mhz Measuring Instrument Ultrasonic Impedance Analyzer For Sonotrode Sound supplier
1Khz - 3Mhz Measuring Instrument Ultrasonic Impedance Analyzer For Sonotrode Sound supplier 1Khz - 3Mhz Measuring Instrument Ultrasonic Impedance Analyzer For Sonotrode Sound supplier 1Khz - 3Mhz Measuring Instrument Ultrasonic Impedance Analyzer For Sonotrode Sound supplier

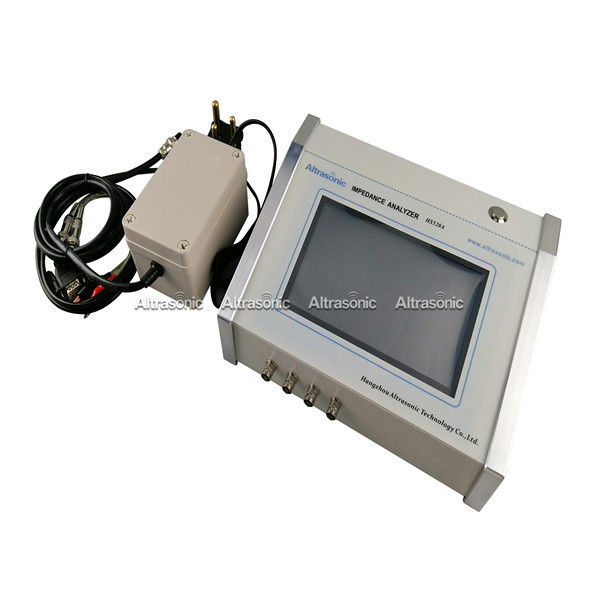

Large Image :  1Khz - 3Mhz Measuring Instrument Ultrasonic Impedance Analyzer For Sonotrode Sound

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS520A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Carton or Wooden case
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Generator: Digital Frequency Range: 1KHz~500MHz/1Mhz/3Mhz
Measurement Speed: 5s/one Pass(600scan Point) Adjustable Frequency Accuracy: ±10ppm
Phase Resolution: 0.15 Degree Impedance Range: 1Ω~1MΩ
Power Supply: AC100V~AC250V,50~60Hz, 30W Application: Ultrasonic Components/ultrasonic Device

1Khz-3Mhz Ultrasonic Impedance Analyzer For Welding Transducer

Specification:



Specification

Performance

HS520A
Product feature Portable, 8inch screen, Full touch screen
Dimension L24cm,W19cm,H10cm
Frequency range 1KHz~500MHz/1Mhz/3Mhz
Measurement Index All the parameters, the graph
Measurement Accuracy < 0.5%
Measurement Speed 5s/one pass(600scan point) Adjustable
Frequency Accuracy ±10ppm
Phase Resolution 0.15 degree
Environment Temperature 10~40degree centigrade
Impedance Range 1Ω~1MΩ
Frequency Step 0.1Hz~any
Power Supply AC100V~AC250V,50~60Hz, 30W
Application Ultrasonic device





Description:



The impedance analyzer can be measured and rated to match the circuit.

For the production and processing of ultrasonic welding machine, the state of the welding machine is analyzed by the results of the admittance circle, and the problems of the welding machine are found through the analysis of parameters and figures.



Characteristic:



The characteristics of the impedance analyzer are: easy to use, combination of indicators and graphics, accurate parameters, low price, and very good guidance for production.



Application:



All equipment that uses ultrasound

Electrical equipment, electronic components, etc.

Advantage:



● Easy to use, accurate and inexpensive, measurement accurace is extremely high

● Judging product defects by admittance circle and logarithmic curve at a glance

● Test data can be stored and printed on the computer, and the data can be traced back to the source.

● Printable impedance scan curve graphics for easy sample analysis and archiving

● One-click start test function, easy to operate, high production efficiency
